Place of Origin:
china shenzhen
Brand Name:
Temei
Model Number:
T9-L1390S
| Material Thickness | Processing Speed (mm/s) | Processing Power |
|---|---|---|
| 1mm | 60-70 | 35-40 |
| 3mm | 50-60 | 50-60 |
| 5mm | 35-40 | 60-65 |
| 8mm | 17-23 | 60-65 |
| 10mm | 12-17 | 60-65 |
| 12mm | 10-14 | 65-70 |
| 15mm | 6-8 | 65-70 |
| 20mm | 2.5-4 | 65-70 |
| 30mm | 1.4-1.8 | 65-70 |

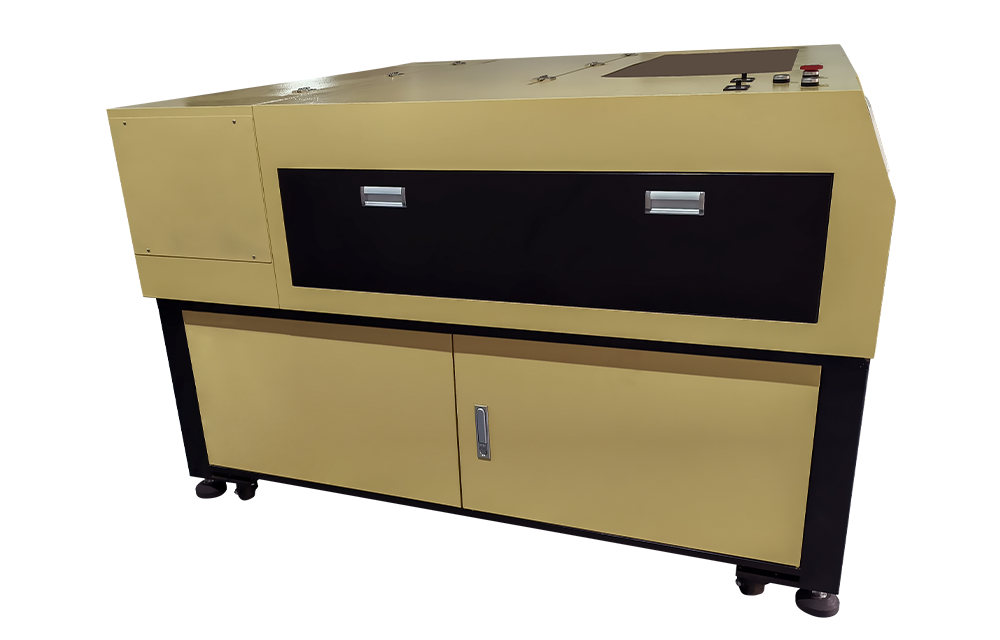

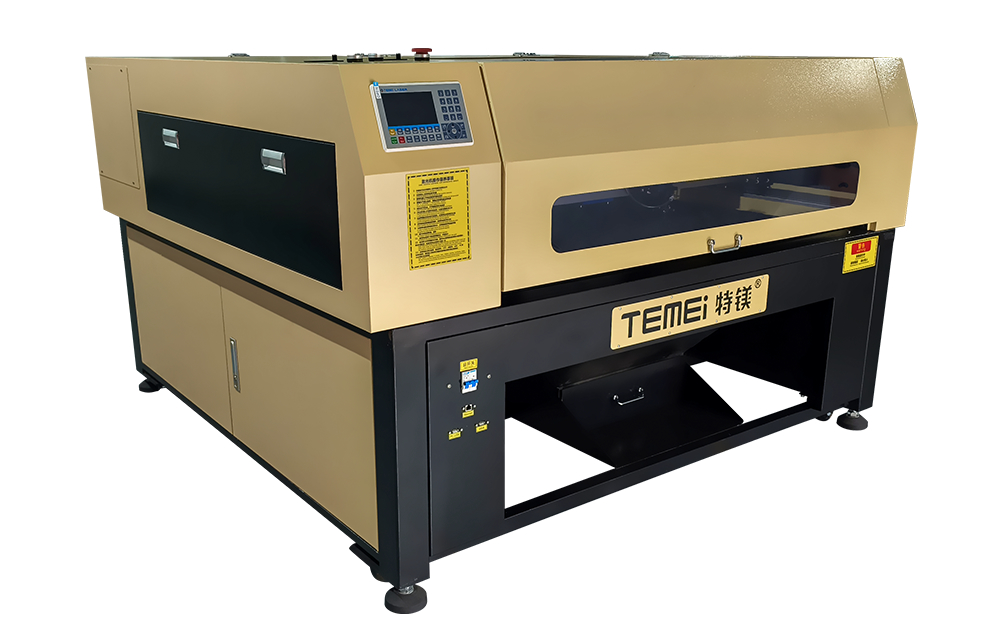

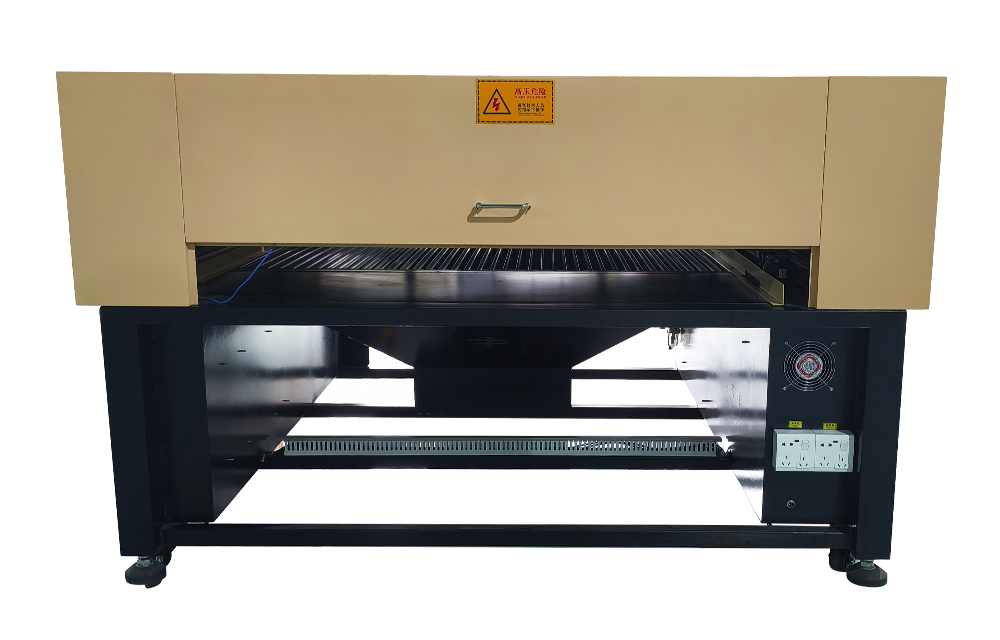

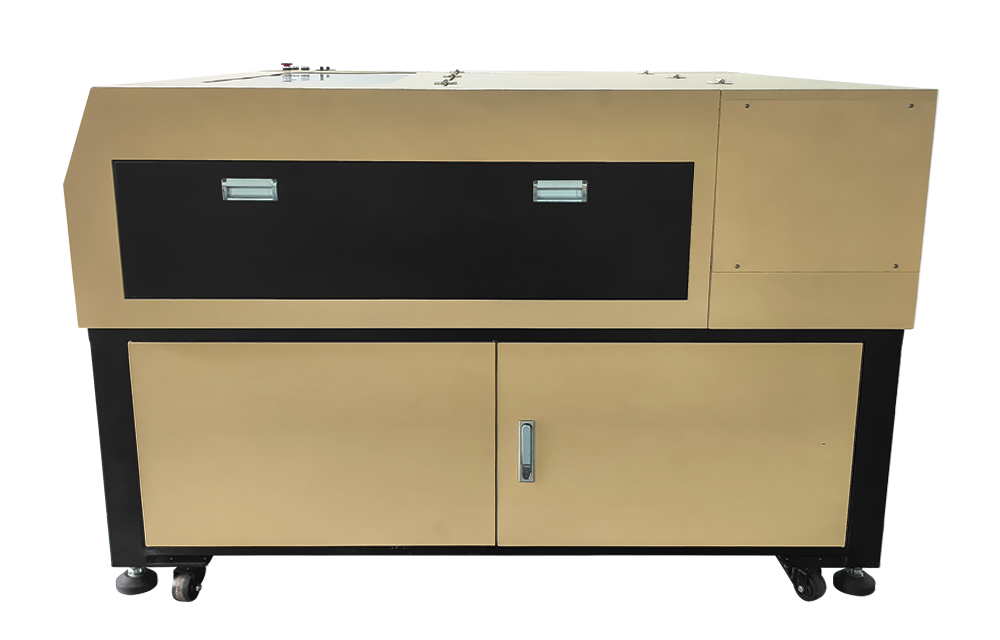

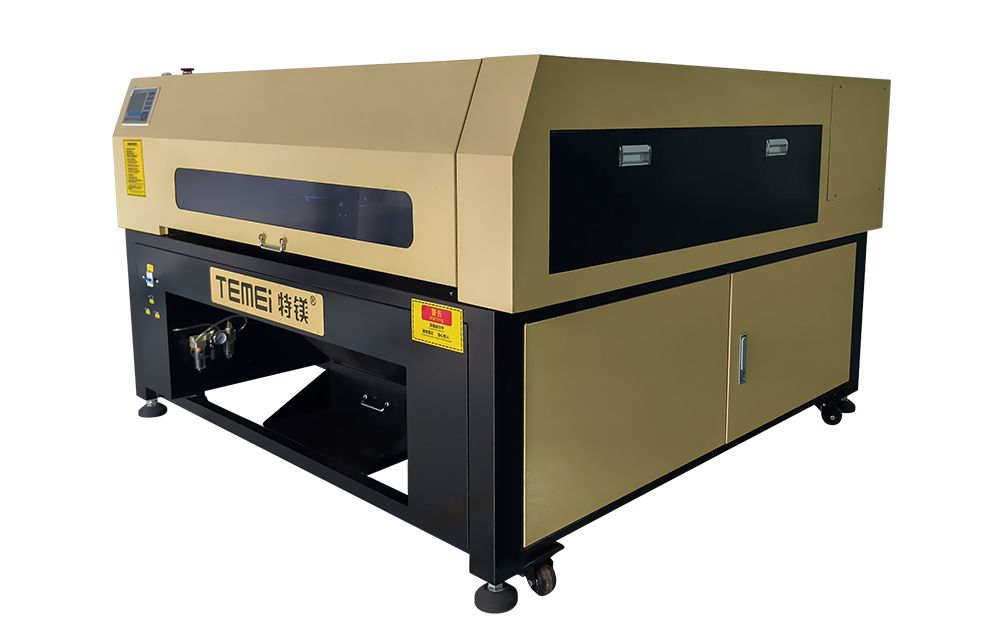

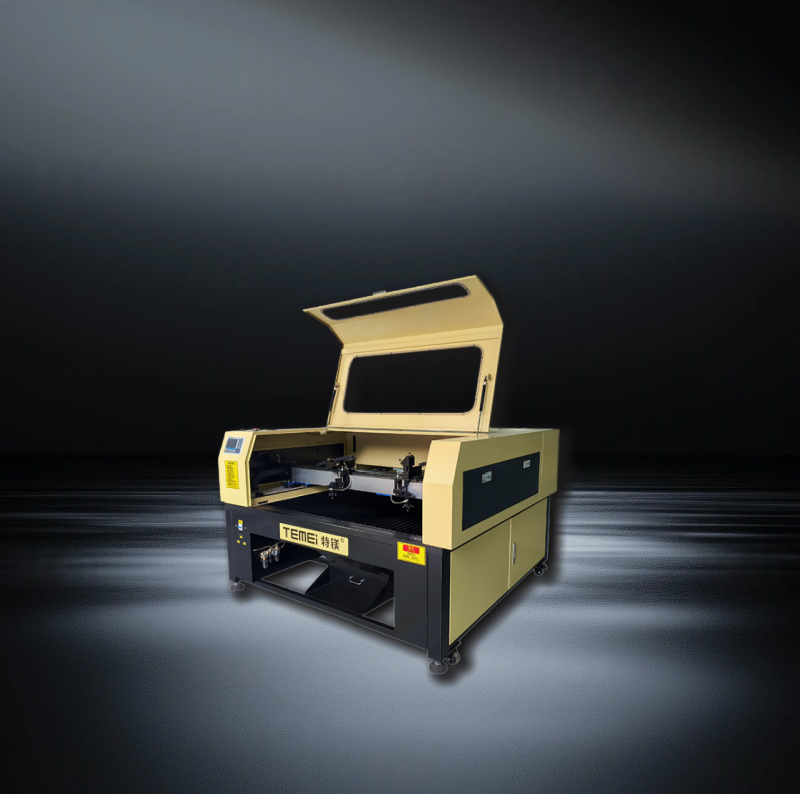

| Name | CO2 laser cutting machine |
| Model | T9-L1390S |
| Working Size | 1300x900mm |
| Laser Source | CO2 Laser Tube |
| Laser Power | 130W/150W/180W/200W/300W/450W |
| Cooling Method | S&A CW-5200/6000/6200 Chiller |
| Drive System | Mitsubishi Servo Driver & Motor from Japan |
| Transmission System | TBI Ball Screw & PMI Linear Guide from Taiwan |
| Control System | Ruida RDC6442/RDV6445 |
| CCD edge patrol cutting function | Optional |
| Double cutting head | Optional |
| Positioning Accuracy | 0.02mm |
| Repet.Positioning Accuracy | 0.01mm |
| Max.Speed | ≤40m/min |
| Max.Cutting Thickness | 30mm (acrylic,plywood,rubber,MDF) |
| Working table | Blade platform / Cellular platform (optional) |
| Red-dot Positioning | Yes |
| Auxiliary Equipment | Air pump, Centrifugal fans(1.1kw) |
| Power supply | 220V, 50/60Hz |
| File format | DXF, PLT, AI, DST, DSB |
| Dimensions | 1750x1650x1150 mm |
| Net Weight | 500kgs |
| Application Materials | Fabric, Leather, Acrylic, Paper, Wood, Bamboo, Ceramic, Rubber, Sponge, Plastic, etc. |
