Place of Origin:
china shenzhen
Brand Name:
Temei
Model Number:
TM-LF50W

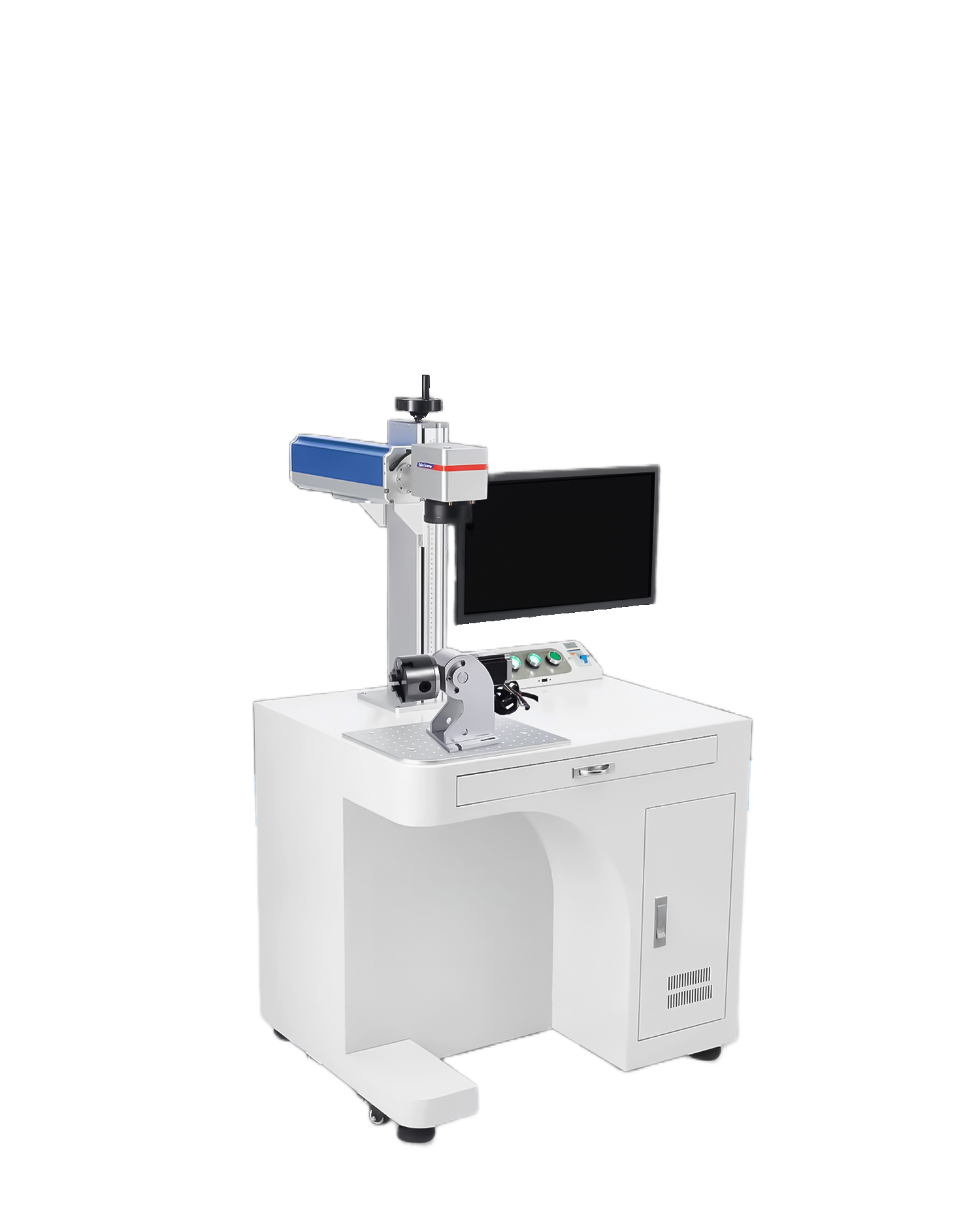

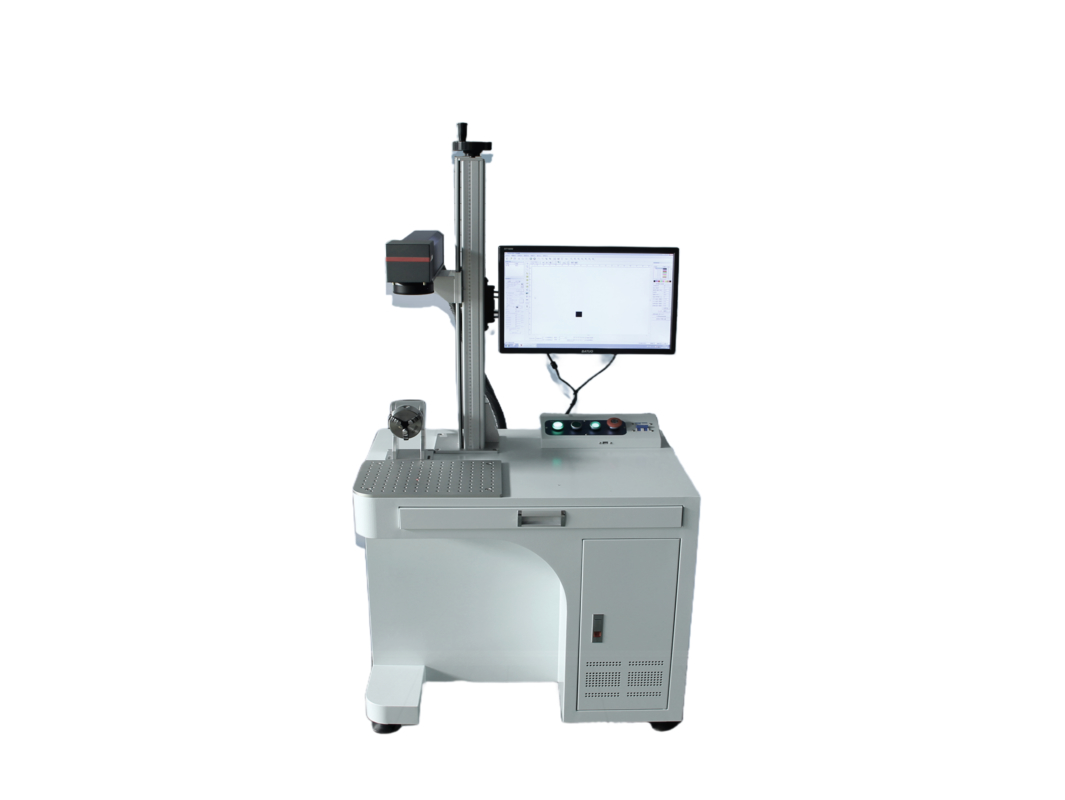

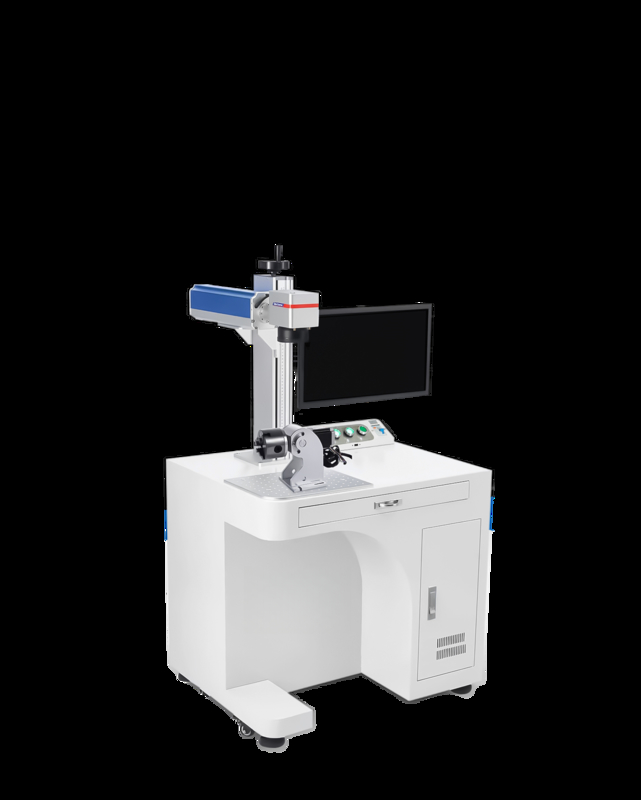

The Temei Fiber Laser Marking Machine offers high-precision marking with a speed of up to ≤7000mm/s , supporting multiple graphic formats like AI, PLT, DXF, BMP, and more. It features air cooling, a long-lasting fiber laser source with 70,000 to 100,000 hours of operation, and is compatible with various materials including metal, leather, and acrylic. The machine ensures deep marking capabilities with a depth of up to 1mm and includes EZCAD software for seamless operation.
Configuration parameters
| Name | Fiber Laser Marking Machine |
| Model | TM-LF50W |
| Working Size | 200x200mm |
| Laser Source | Fiber laser(MAX/Raycus) |
| Laser Power | 50W |
| Laser wavelength | 1064±5nm |
| Spot Diameter | 0.015mm |
| Galvanometer | SINO-GALVO |
| Field Lens | High-definition quartz field lens |
| Cooling Mode | Air cooling |
| Montor and Host computer | Industrial control computer |
| Control Software | EZCAD |
| Lifting Shaft | Hand-cranked lifting system |
| Working Table | High-precision aluminum plate |
| Repe.Positioning Accuracy | 0.002mm |
| Minimum Line Width | 0.01mm |
| Minimum Character | 0.15mm |
| Marking Speed | ≤7000mm/s |
| Marking Depth | ≤1 mm(depending on material) |
| Power supply | 220V,50/60Hz |
| Supported Graphic Formats | DXF,AI,BMP,PLT |
| Dimensions | 650x800x1470mm |
| Net Weight | 80kgs |
| Application Materials | Carbonsteel,Stainless steel,Aluminum,Copper and other metal and Rigid platstics etc. |
Packaging method
