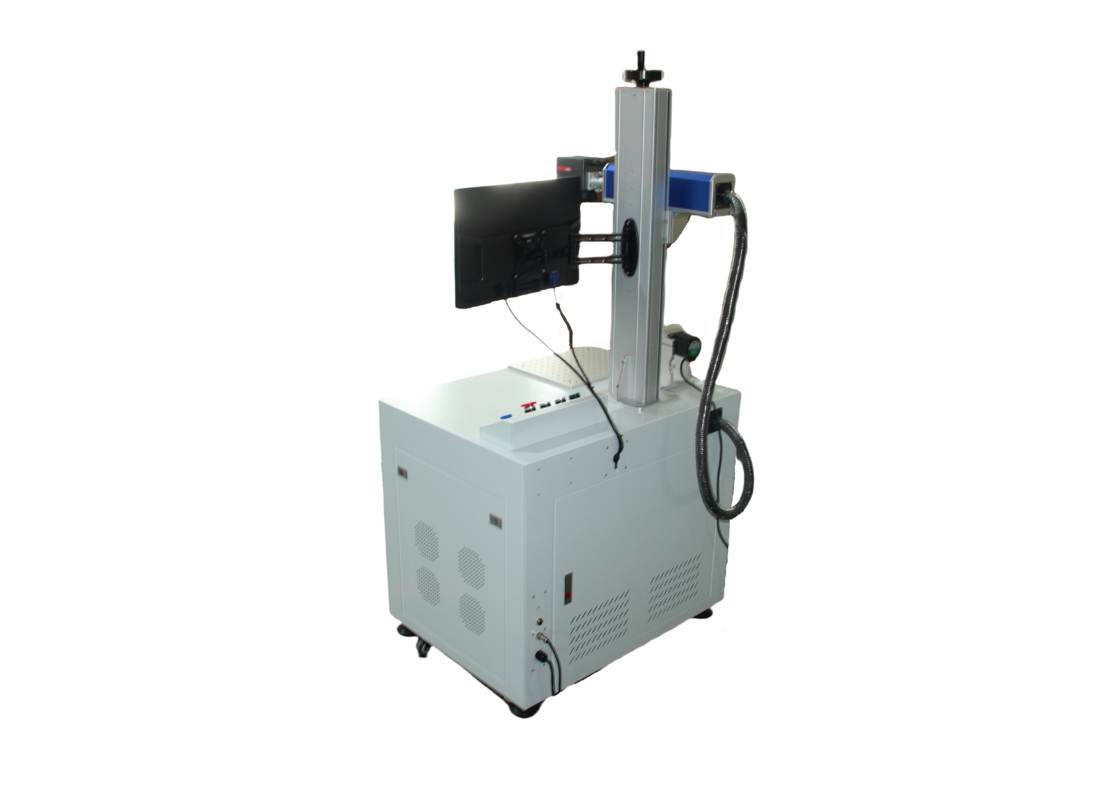

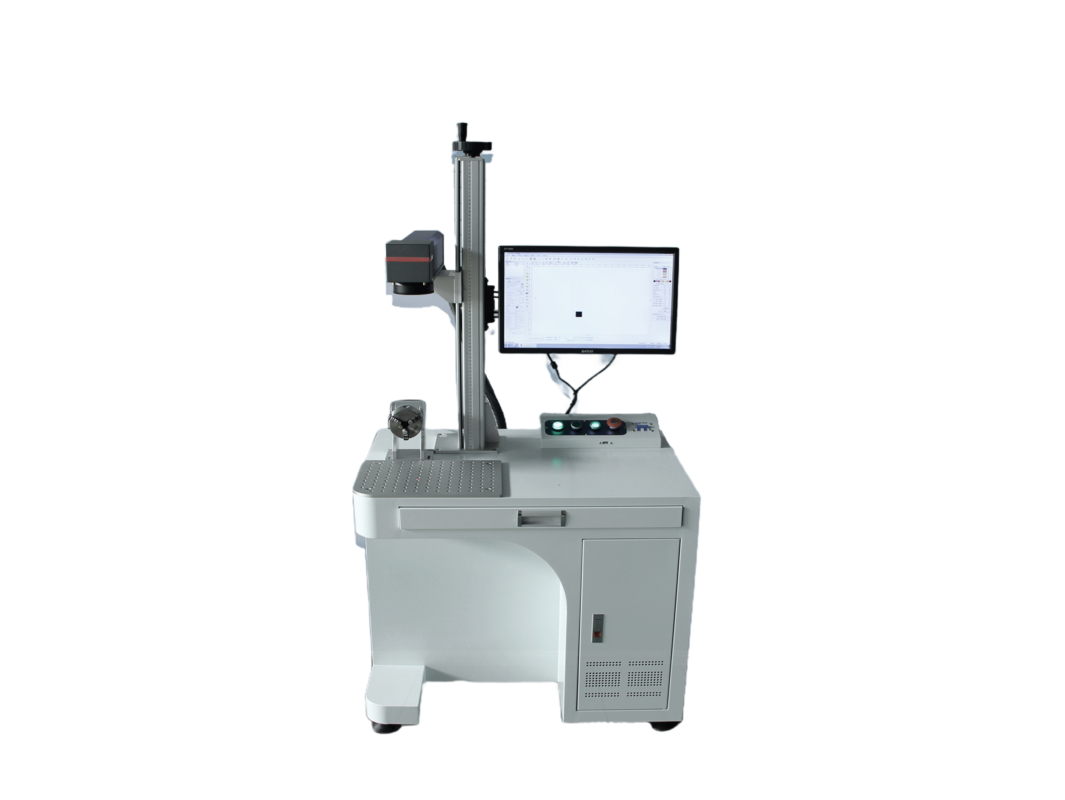

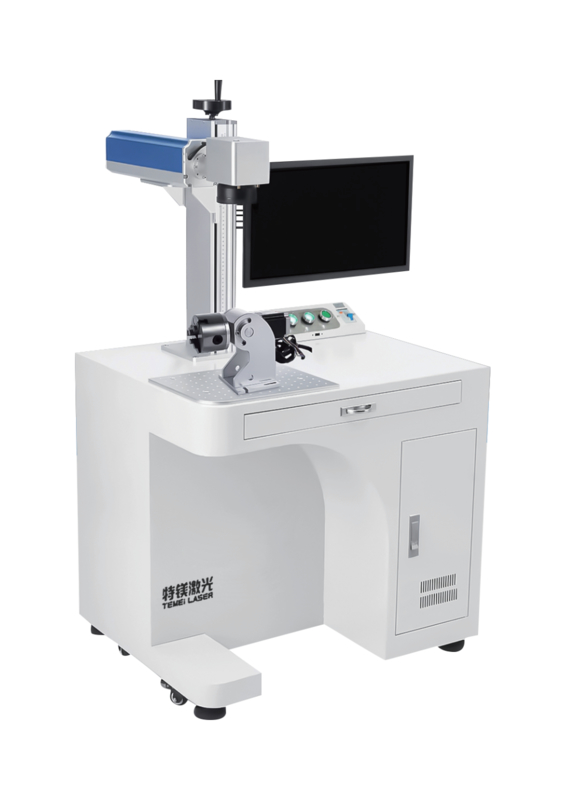

The Temei Fiber Laser Marking Machine delivers high-precision marking performance, boasting a maximum marking speed of ≤7000mm/s. It supports the import and processing of various graphic file formats, such as AI, PLT, DXF, and BMP, among others.
In terms of core features, the machine adopts an air cooling system for stable heat dissipation. Its fiber laser source is designed for long service life, with an operational lifespan ranging from 70,000 to 100,000 hours. It is also compatible with a wide range of materials, including metals, leather, and acrylic.
Additionally, this marking machine is capable of creating deep marks, with a maximum marking depth of up to 1mm. To simplify user operation, it comes equipped with EZCAD software, ensuring a smooth and efficient workflow during the marking process.
Material Application
1. All metals: Gold, Silver, Titanium, Copper, Alloy, Aluminum, Steel, Manganese Steel, Magnesium, Zinc, Stainless Steel, Carbon Steel/ Low Carbon Steel, Various Alloy Steels, Electrolytic Sheets, Brass Sheets, Galvanized Sheets, Aluminum, Various Alloy Sheets, Various Metal Sheets, Rare Metals, Coated Metals, Anodized Aluminum, and other special surface treatment processes, such as oxygen decomposition electroplating treatment on the surface of aluminum-magnesium alloys.
2. Non-metallic materials: Non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothing, wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin materials.
Configuration parameters
| Name |
Fiber Laser Marking Machine |
| Model |
TM-LF50W |
| Working Size |
200x200mm |
| Laser Source |
Fiber laser(MAX/Raycus) |
| Laser Power |
50W |
| Laser wavelength |
1064±5nm |
| Spot Diameter |
0.015mm |
| Galvanometer |
SINO-GALVO |
| Field Lens |
High-definition quartz field lens |
| Cooling Mode |
Air cooling |
| Montor and Host computer |
Industrial control computer |
| Control Software |
EZCAD |
| Lifting Shaft |
Hand-cranked lifting system |
| Working Table |
High-precision aluminum plate |
| Repe.Positioning Accuracy |
0.002mm |
| Minimum Line Width |
0.01mm |
| Minimum Character |
0.15mm |
| Marking Speed |
≤7000mm/s |
| Marking Depth |
≤1 mm(depending on material) |
| Power supply |
220V,50/60Hz |
| Supported Graphic Formats |
DXF,AI,BMP,PLT |
| Dimensions |
650x800x1470mm |
| Net Weight |
80kgs |
| Application Materials |
Carbonsteel,Stainless steel,Aluminum,Copper
and other metal and Rigid platstics etc. |
