Place of Origin:
china shenzhen
Brand Name:
Temei
Model Number:
TM-40D
Configuration and Parameters
|
Name |

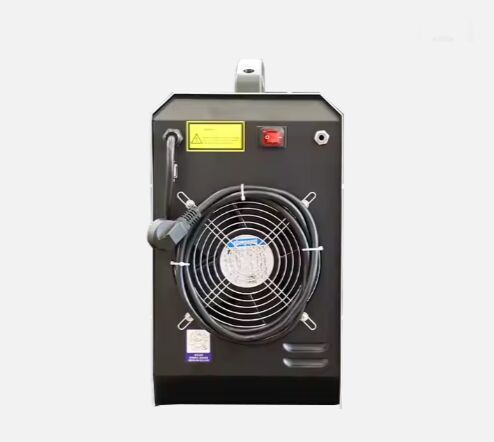

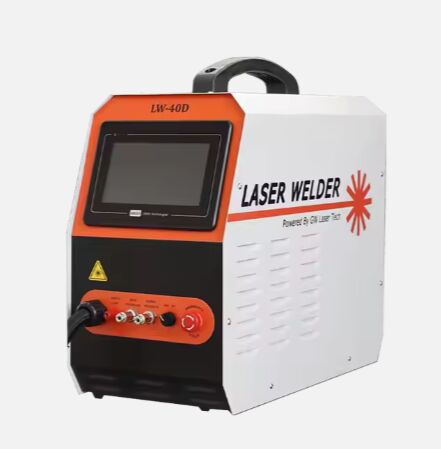

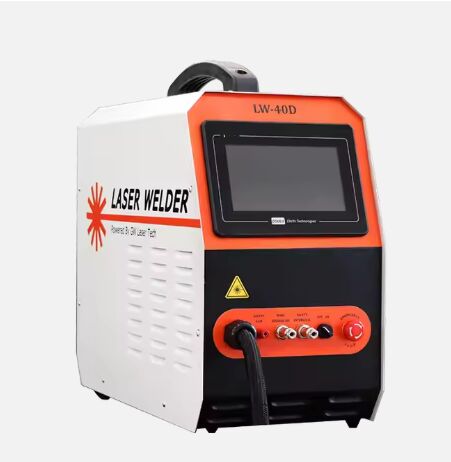

Portable Handheld Laser Welding Machine |
|
Model |
TM-40D |
|
Work mode |
Continuous mode / Pulse mode |
|
Laser source |
Fiber laser (GW) |
|
Laser power |
1200W |
|
Output laser wavelength |
1080±10 |
|
Maximum modulation frequency |
10kHz |
|
Laser response time |
<30us |
|
Swing mode |
Single pendulum |
|
Swing amplitude |
0~5mm |
|
Laser incidence mode |
Coaxial |
|
Protection mirror specifications |
D20mm,T3mm |
|
Supporting fiber optic cable length |
5±0.5m |
|
Operating temperature range |
-10~40° |
|
Humidity range |
≤95 degree |
|
Input voltage |
AC 220V 50Hz/60Hz |
|
Mirror specifications |
23.3 × 16mm2 ,T2mm |
|
Focus lens specification |
D20mm,F150mm |
|
Collimating mirror specification |
D12.7mm,F50mm |
|
Shielding gas |
Inert gas |
|
Maintain the range of air pressure |
0.1~1.0 MPa |
|
Cooling method |
Air-cooled |
|
Dimensions |
250 x 579 x 479 mm (L ×W × H) |
|
Net Weight |
26kgs |
|
Application Materials |
Carbon steel,Galvanized steel,Aluminum alloy,Brass etc. |
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q: I am not sure if this machine suitable for my work?
A: Don't worry, just tell me your working materials, max working area and cutting thickness,then I will recommend you the most suitable machine for you.
Q: Are you factory or trading company?
A: We are factory, which manufactures CNC cutting machines , with 10 years experience in CNC machine's industry.
Q:How can i do if the machine goes wrong?
A:If confronted with such problems,online service is offered,you could contact our sales.Also,we offer engineer delivery
service.Please contact us asap and don't try fix the machine by yourself or someone else.We will response within 12 hours as quick as we can to solve it for you.
