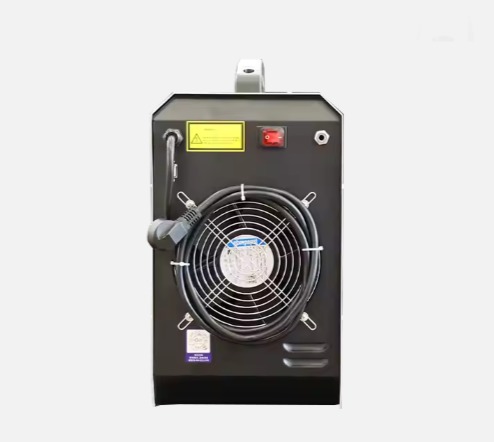

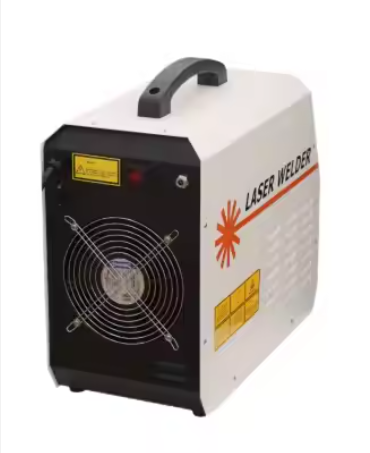

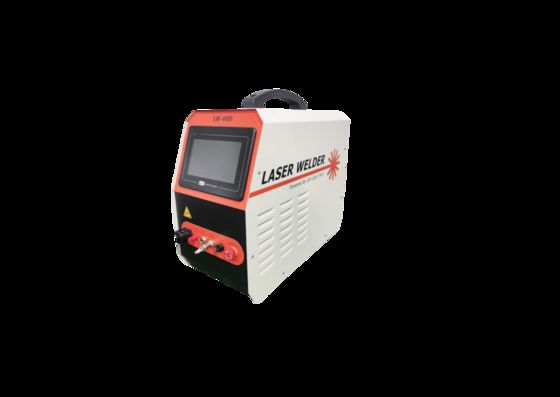

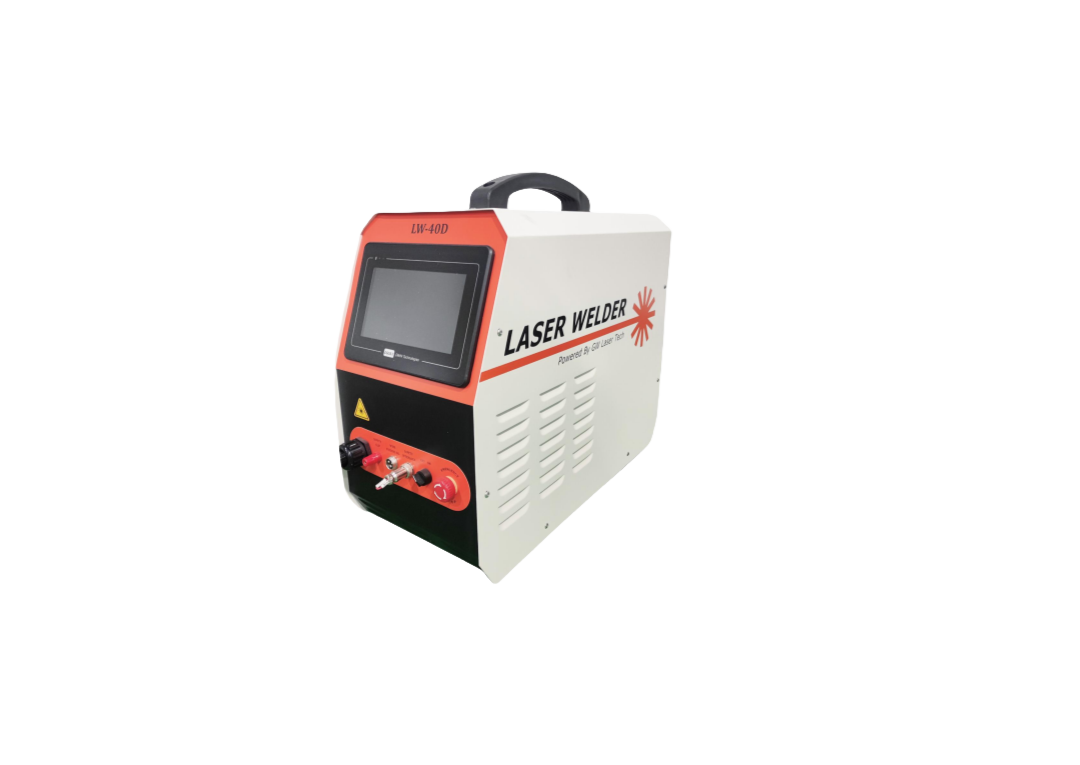

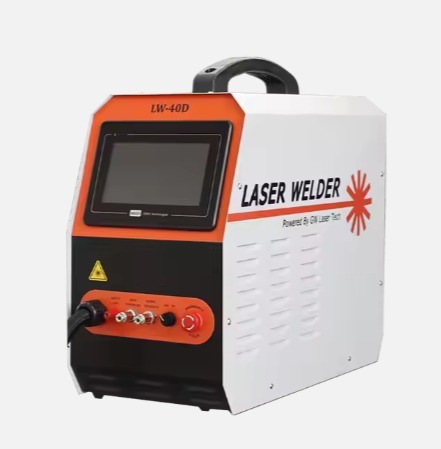

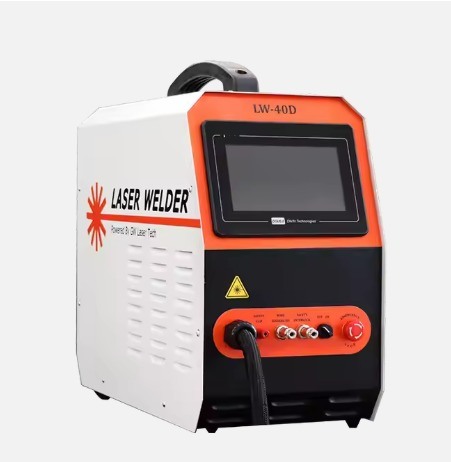

1200w Mini Laser Welding Machine Portable Handheld Laser Welding Machine AC220V
| Place of Origin | china shenzhen |
|---|---|
| Brand Name | Temei |
| Model Number | TM-40D |
| Minimum Order Quantity | 1 |
| Price | 4000usd |
| Packaging Details | wooden box |
| Delivery Time | 3~7day |
| Payment Terms | T/T |
| Supply Ability | 1,000 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Portable Handheld Laser Welding Machine | Model | TM-40D |
|---|---|---|---|
| Work Mode | Continuous Mode / Pulse Mode | Laser Source | Fiber Laser (GW) |
| Laser Power | 1200W | Output Laser Wavelength | 1080±10 |
| Maximum Modulation Frequency | 10kHz | Laser Response Time | <30us |
| Swing Mode | Single Pendulum | Swing Amplitude | 0~5mm |
| Laser Incidence Mode | Coaxial | Protection Mirror Specifications | D20mm,T3mm |
| Operating Temperature Range | -10~40° | Humidity Range | ≤95 Degree |
| Input Voltage | AC 220V 50Hz/60Hz | Mirror Specifications | 23.3 × 16mm2 ,T2mm |
| Focus Lens Specification | D20mm,F150mm | Collimating Mirror Specification | D12.7mm,F50mm |
| Cooling Method | Air-cooled | Dimensions | 250 X 579 X 479 Mm (L ×W × H) |
| Application Materials | Carbon Steel,Galvanized Steel,Aluminum Alloy,Brass Etc. | ||
| Highlight | 1200w Mini Laser Welding Machine,Handheld Laser Welding Machine AC220V,Mini Laser Welding Machine AC220V |
||
Product Description
Laser welding uses the handheld air-cooled laser welding method.
Why choose this?

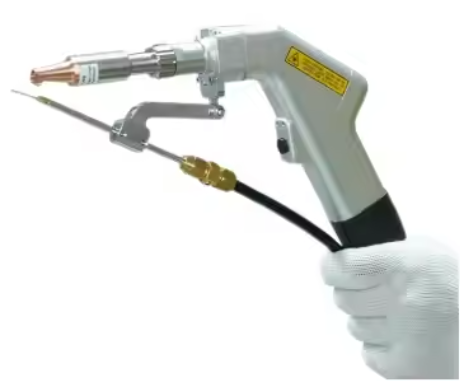

1. The welding gun is lightweight and flexible. A flexible and lightweight welding gun is the key to improving the efficiency of continuous production. The air-cooled welding gun has no water pipes and its overall weight is only 700 grams, which is half lighter than the water-cooled laser welding gun. It can be operated with one hand and there is no water pipe inside the gun cable. The angle adjustment is more convenient, and the operator can remain in a relaxed state continuously.
2. Easy to operate, maintenance-free. By simply selecting the welding material, plate thickness, and lap joint method, the automatic matching of parameters can be achieved. When the water-cooled laser is still waiting to reach the set working temperature, the air-cooled system can directly start the welding process.
3. The air-cooled laser is small in size and easy to move, making it suitable for multi-position welding of non-standard large-scale equipment.
4. The failure rate is very low. Currently, the laser has maintained the top quality in the industry, with a failure rate of one in a thousand.
Effect demonstration
Configuration and Parameters
|
Name |
Portable Handheld Laser Welding Machine |
|
Model |
TM-40D |
|
Work mode |
Continuous mode / Pulse mode |
|
Laser source |
Fiber laser (GW) |
|
Laser power |
1200W |
|
Output laser wavelength |
1080±10 |
|
Maximum modulation frequency |
10kHz |
|
Laser response time |
<30us |
|
Swing mode |
Single pendulum |
|
Swing amplitude |
0~5mm |
|
Laser incidence mode |
Coaxial |
|
Protection mirror specifications |
D20mm,T3mm |
|
Supporting fiber optic cable length |
5±0.5m |
|
Operating temperature range |
-10~40° |
|
Humidity range |
≤95 degree |
|
Input voltage |
AC 220V 50Hz/60Hz |
|
Mirror specifications |
23.3 × 16mm2 ,T2mm |
|
Focus lens specification |
D20mm,F150mm |
|
Collimating mirror specification |
D12.7mm,F50mm |
|
Shielding gas |
Inert gas |
|
Maintain the range of air pressure |
0.1~1.0 MPa |
|
Cooling method |
Air-cooled |
|
Dimensions |
250 x 579 x 479 mm (L ×W × H) |
|
Net Weight |
26kgs |
|
Application Materials |
Carbon steel,Galvanized steel,Aluminum alloy,Brass etc. |
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q: I am not sure if this machine suitable for my work?
A: Don't worry, just tell me your working materials, max working area and cutting thickness,then I will recommend you the most suitable machine for you.
Q: Are you factory or trading company?
A: We are factory, which manufactures CNC cutting machines , with 10 years experience in CNC machine's industry.
Q:How can i do if the machine goes wrong?
A:If confronted with such problems,online service is offered,you could contact our sales.Also,we offer engineer delivery
service.Please contact us asap and don't try fix the machine by yourself or someone else.We will response within 12 hours as quick as we can to solve it for you.
