Place of Origin:
Shenzhen，China
Brand Name:
Temei
Model Number:
TM-FL25120
1. Company Profile
Company Introduction
Shenzhen Temei Machinery & Equipment Co., Ltd. is located in Shenzhen, the forefront of China's reform and opening-up. It is an enterprise integrating R&D, manufacturing, sales and maintenance services of optoelectronic products. The company has long been engaged in the development, research and manufacturing of laser technology applications for engraving and cutting various materials. Adhering to the business philosophy of "Quality, Professionalism, Innovation and Service — continuously creating maximum value for customers", the company has developed and produced a range of opto-mechatronic products with higher performance, greater stability, better durability, and more user-friendly, intelligent and practical designs.
2. Equipment Performance Features
2.1 Laser Cutting Principle
Laser cutting uses a high-density laser beam delivered through the laser head and focused onto the workpiece, causing the metal to melt rapidly. At the same time, a high-speed gas flow coaxial with the beam blows away the molten material, to accomplish the cut. (As shown in Figure 1-1)
2.2 Advantages of Fiber Laser Cutting
· Long service life: the laser source lasts up to 100,000 hours.
· Low operating cost: the electro-optical conversion efficiency of the fiber laser is over 40%, greatly reducing power consumption during operation.
· Low maintenance cost: the entire optical path is transmitted through fiber, with a simple optical path and stable structure; the external optical path is maintenance-free.
· Excellent cutting quality: non-contact cutting with minimal heat effect on the cutting edge and virtually no thermal deformation of the workpiece; the cut surface is smooth and burr-free, and the kerf generally requires no secondary processing.
· No damage to the workpiece: the laser cutting head never contacts the material surface and does not scratch the workpiece.
· High processing flexibility: not affected by the shape of the workpiece; any shape or pattern can be processed.
· Safe and environmentally friendly: laser processing produces little waste and low noise; it is clean, safe and pollution-free, effectively improving the working environment.
3. Equipment Name and Overall Dimensions

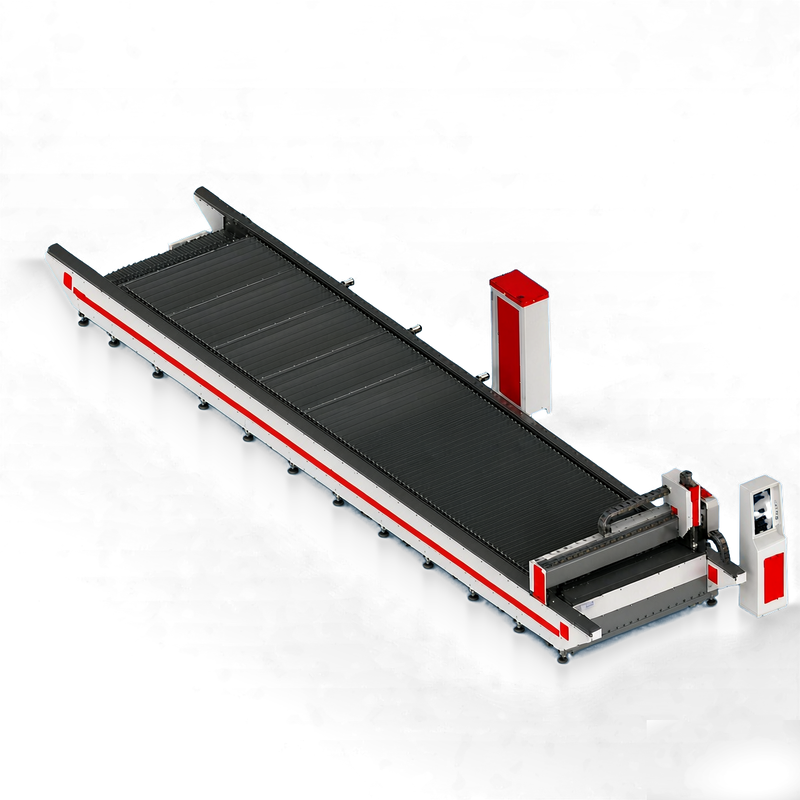

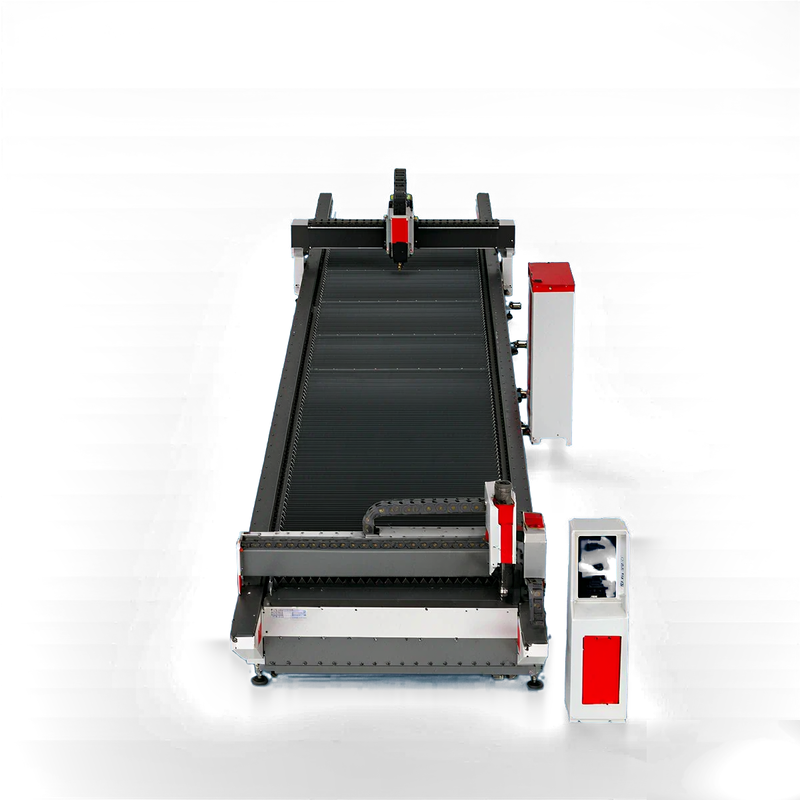

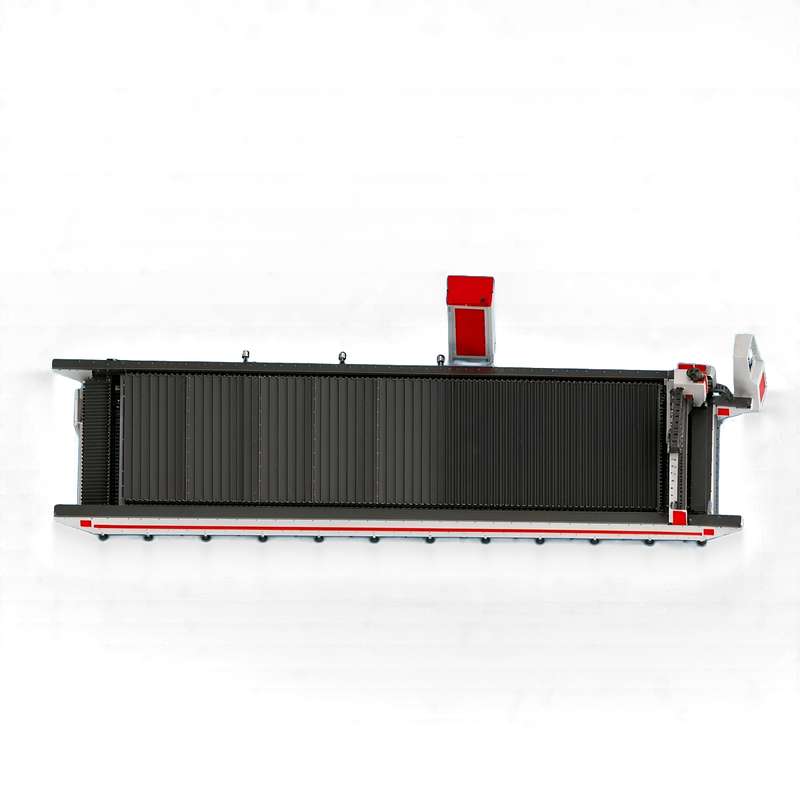

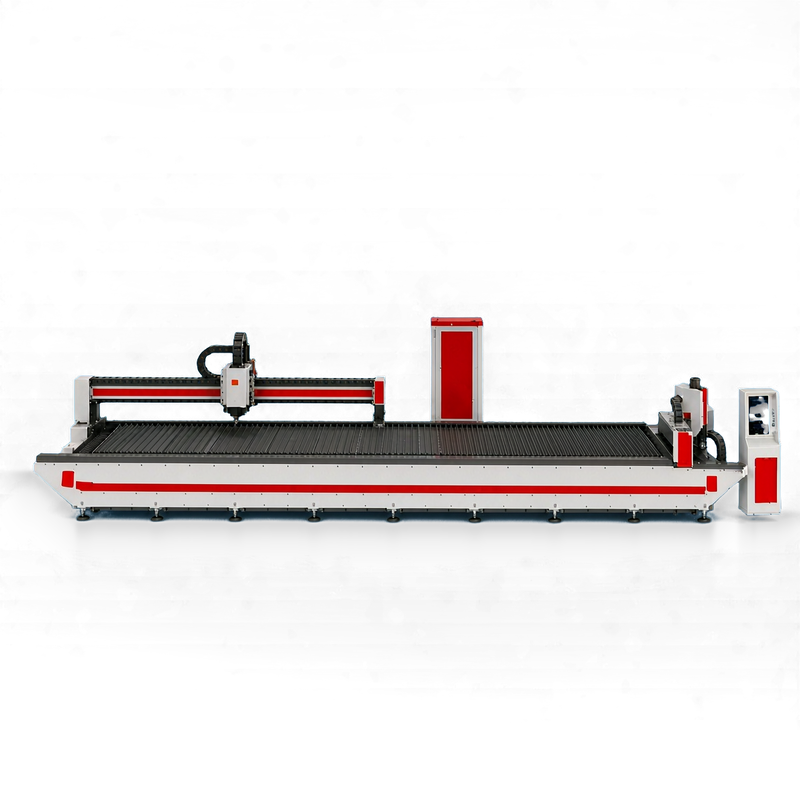

Equipment Name: Single-Platform Fiber Laser Cutting Machine
Model: TM-FL25120
Overall Dimensions:
4. Product Advantages
· Simple integrated design: high precision, small footprint, no dedicated workshop required, easy to move.
· 10kW-class machine bed structure: time-shared, zoned and segmented dust extraction, powerful heat dissipation, resistant to thermal deformation.
· End-to-end in-house manufacturing: strict quality control with individual accountability; the machine bed offers ultra-high load capacity and a lifetime warranty.
· Industrial-grade auxiliary components: dedicated air conditioner and dedicated chiller system maintain constant temperature and humidity, ensuring stable performance and longer machine durability.
· Standardized configuration: a configuration combination built on 15 years of technical expertise and proven by the market, with guaranteed quality.
· Guaranteed precision: the machine bed is machined in one pass by a large high-precision gantry milling machine; industrial-grade guide rails, gears and helical racks; full servo control, flange-type reducers and dual-side dual drive ensure industrial-grade precision and quality.
· German assembly craftsmanship: precision calibration by laser interferometer, German assembly techniques and meticulous workmanship make maintenance more convenient.
· Bochu (FSCUT) software package: mainstream in the market, safe and easy to use, easy to recruit operators; fast free process upgrades and support for intelligent interconnection.
5. Technical Parameters and Specifications
|
Model Specifications |
|||||
|
No. |
Model |
Cutting Range |
X-axis Effective Cutting Range (mm) |
Y-axis Effective Cutting Range (mm) |
|
|
1 |
TM-FL25120 |
2500*12000mm |
2500mm |
12000mm |
|
|
No. |
Name |
Technical Parameters |
|||
|
1 |
Maximum Acceleration |
0.8 - 1.2G |
|||
|
2 |
Vibration Acceleration |
< 0.05g |
|||
|
3 |
Laser Working Medium |
Yb-doped fiber |
|||
|
4 |
Beam Quality BPP |
≥ 3.5mm*mrad |
|||
|
5 |
Continuous Working Hours |
24 hours |
|||
|
6 |
Machine Tool Positioning Accuracy |
±0.03mm/m |
|||
|
7 |
Repeatable Positioning Accuracy |
±0.03mm/m |
|||
|
8 |
Edge Detection Accuracy |
±0.5 |
|||
|
9 |
Device Motion Mode |
Dual-side drive |
|||
|
10 |
Power Grid Requirements |
AC380V±10% 50Hz |
|||
|
11 |
Machine Color |
Milky white + red (customizable) |
|||
|
12 |
Power Supply Ground Resistance |
≤ 5Ω |
|||
|
13 |
Total Power Consumption of the Machine |
See the cost analysis table on P9 |
|||
6. Main Configuration and Description (1)
|
Constituent Unit |
Name |
Qty |
Brand |
|
Software System |
CNC System (including control software) |
1 set |
Shanghai / Bochu FSCUT bus system |
|
Automatic Following System |
1 set |
Bochu FSCUT height controller |
|
|
Laser Cutting Process Database |
1 set |
Temei Laser |
|
|
Optical System |
Laser Source |
1 set |
Shenzhen / Maxphotonics 20000W |
|
Automatic Zoom Laser Cutting Head |
1 set |
Shanghai / Bochu FSCUT BLT (Black King Kong) |
|
|
Drivetrain |
Gear & Rack: X-Y1-Y2 axis rack, helical teeth |
1 set |
Taiwan / JT |
|
Guide Rails: X-Y1-Y2 linear guides |
1 set |
Taiwan / DXT |
|
|
Ball Screw: Z-axis precision screw |
1 set |
Taiwan / TBI |
|
|
Gear Units: X-Y1-Y2 reducer system (flanged type) |
3 sets |
MOTOREDUCER (France) |
|
|
Motors: X-Y1-Y2 servo motor system |
4 sets |
Shanghai / Bochu FSCUT |
|
|
Drives: X-Y1-Y2 drive system |
4 sets |
Shanghai / Bochu FSCUT |
|
|
Electrical System |
Electronic Components |
1 set |
Schneider (France) |
|
High-flex Cable Energy Chains, etc. |
1 set |
China (GB standard) |
|
|
Gas Supply System |
Intelligent Gas Supply System / Remote control handle |
1 set |
Temei Laser |
|
Proportional Valve |
1 set |
FELTON |
|
|
Fume Extraction System |
Intelligent Zoned Exhaust System |
1 set |
Temei Laser |
|
Centrifugal Fan |
1 set |
Temei Laser |
6. Main Configuration and Description (2)
|
Constituent Unit |
Name |
Qty |
Brand |
|
Temperature Control System |
Dual-Temperature Dual-Control Forced Water Cooling System |
1 set |
S&A / Hanli |
|
Oil Circuit System |
Automatic Oil Supply Lubrication System |
1 set |
Temei Laser |
|
Machine Tool System |
Heavy-duty Main Machine Bed |
1 set |
Temei Laser |
|
Aerospace-Grade Aluminum Gantry |
1 set |
Temei Laser |
|
|
Toothed Support Slats |
1 set |
Temei Laser |
|
|
Waste Collection System |
1 set |
Temei Laser |
|
|
Fiber Optic Pipeline Motion Safety Protection System |
1 set |
Temei Laser |
|
|
Fall-arrest Z-axis Assembly System |
1 set |
Temei Laser |
|
|
Machine Tool Accessories |
1 set |
Temei Laser |
|
|
Safety System |
Signal Alarm System |
1 set |
Temei Laser |
|
Safety Prompt System |
1 set |
Temei Laser |
|
|
Whole-machine Craftsmanship |
15 Years of Machine Integration Technology |
1 set |
Temei Laser |
7. Equipment Operating Cost Analysis
|
Air Cutting Cost |
1KW |
1.5KW |
2KW |
3KW |
4KW |
6KW |
8KW |
12KW |
15KW |
20KW |
30KW |
40KW |
50KW |
|
|
Power Consumption (Peak Power Consumption) |
Laser |
3.5 |
6 |
7 |
11 |
14 |
20 |
26 |
40 |
50 |
67 |
93 |
132 |
165 |
|
Water Chiller |
2.3 |
3.5 |
3.7 |
4.3 |
5.2 |
11 |
19 |
21 |
22 |
32 |
30.2 |
44 |
58 |
|
|
Air Compressor |
15 |
15 |
15 |
15 |
15 |
22 |
22 |
22 |
22 |
37 |
37 |
37 |
37 |
|
|
Machine Main Frame |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
|
|
Fume Extraction System |
1.5 |
1.5 |
1.5 |
1.5 |
2.2 |
2.2 |
2.2 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
|
|
Total Power (kWh) |
37.3 |
41 |
42.2 |
46.8 |
51.4 |
70.2 |
84.2 |
102.5 |
113.5 |
155.5 |
179.7 |
232.5 |
279.5 |
|
|
Total Electricity Cost / RMB |
22.38 |
24.6 |
25.32 |
28.08 |
30.84 |
42.12 |
50.52 |
61.5 |
68.1 |
93.3 |
107.82 |
139.5 |
167.7 |
|
|
Consumable Parts / RMB |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.6 |
0.6 |
0.8 |
0.8 |
1 |
1 |
1 |
1 |
|
|
Auxiliary Gas Cost (Air) |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|
|
Total Operating Cost / RMB |
22.88 |
25.1 |
25.82 |
28.58 |
31.34 |
42.72 |
51.12 |
62.3 |
68.9 |
94.3 |
108.82 |
140.5 |
168.7 |
|
|
Oxygen Cutting Cost |
1KW |
1.5KW |
2KW |
3KW |
4KW |
6KW |
8KW |
12KW |
15KW |
20KW |
30KW |
40KW |
50KW |
|
|
Power Consumption (Peak Power Consumption) |
Laser |
3.5 |
6 |
7 |
11 |
14 |
20 |
26 |
40 |
50 |
67 |
93 |
132 |
165 |
|
Water Chiller |
2.3 |
3.5 |
3.7 |
4.3 |
5.2 |
11 |
19 |
21 |
22 |
32 |
30.2 |
44 |
58 |
|
|
Air Compressor |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|
|
Machine Main Frame |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
|
|
Fume Extraction System |
1.5 |
1.5 |
1.5 |
1.5 |
2.2 |
2.2 |
2.2 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
|
|
Total Power (kWh) |
22.3 |
26 |
27.2 |
31.8 |
36.4 |
48.2 |
62.2 |
80.5 |
91.5 |
118.5 |
142.7 |
195.5 |
242.5 |
|
|
Total Electricity Cost / RMB |
13.38 |
15.6 |
16.32 |
19.08 |
21.84 |
28.92 |
37.32 |
48.3 |
54.9 |
71.1 |
85.62 |
117.3 |
145.5 |
|
|
Consumable Parts / RMB |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.6 |
0.6 |
0.8 |
0.8 |
1 |
1 |
1 |
1 |
|
|
Auxiliary Gas Cost (Oxygen) |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
|
|
Total Operating Cost / RMB |
35.88 |
38.1 |
38.82 |
41.58 |
44.34 |
51.52 |
59.92 |
71.1 |
77.7 |
94.1 |
108.62 |
140.3 |
168.5 |
|
|
Nitrogen Cutting Cost (data same as oxygen) |
1KW |
1.5KW |
2KW |
3KW |
4KW |
6KW |
8KW |
12KW |
15KW |
20KW |
30KW |
40KW |
50KW |
|
|
Auxiliary Gas Cost (Nitrogen) |
27 |
27 |
27 |
27 |
27 |
27 |
27 |
27 |
27 |
27 |
27 |
27 |
27 |
|
|
Total Operating Cost / RMB |
40.88 |
43.1 |
43.82 |
46.58 |
49.34 |
56.52 |
64.92 |
76.1 |
82.7 |
99.1 |
113.62 |
145.3 |
173.5 |
|
*Note: Total power consumption x 0.6 power factor | Electricity calculated at RMB 1/kWh. The above data is for 1-3 mm sheets, for reference only; please adjust as appropriate according to local electricity/gas prices and actual usage. (Unit: RMB/hour)
8. Selected Components Display
|
8.1 Cutting Head
|
8.2 Operating System
|
8.3 Laser Source
9. Component Suppliers
10. Flat Cutting Samples Display
11. Application Fields
|
The equipment is suitable for cutting various metal sheets such as stainless steel, carbon steel, aluminum alloy, brass, galvanized sheet, nickel plate and titanium alloy plate. (As shown in the figure on the right) Wide range of applications: defense industry, engineering machinery, agricultural machinery, automobile manufacturing, marine and port equipment, sheet metal processing, hardware, elevators, decoration, electrical appliances, kitchenware, lighting and other metal forming and manufacturing fields. |
|
