Name: Asynchronous Dual-Work-Platform 9060 Small - Format CO₂ Laser Cutting Machine
Brand: Shenzhen Temei Machinery Equipment Co., Ltd.
SKU: TM-L1610SCCDII
Availability: InStock

Home > Products > Co2 Laser Cutting Machine >

Asynchronous Dual-Work-Platform 9060 Small - Format CO₂ Laser Cutting Machine

CO2 Laser Cutting Machine

CO2 Laser Cutter

CO2 Laser Engraving Machine

CNC Laser Cutting Machine

Non Metal Laser Cutter

CO2 Laser Engraver and Cutter

Industrial CO2 Laser Cutter

CO2 Laser Cutting Machine for Wood

CO2 Laser Cutting Machine for Acrylic

CO2 Laser Cutting Machine for Fabric

CO2 Laser Cutting Machine for Leather

CCD Camera Laser Cutting Machine

Automatic CO2 Laser Cutting Machine

Large Format CO2 Laser Cutter

Small CO2 Laser Cutting Machine

Dual Head CO2 Laser Cutter

Gantry CO2 Laser

Place of Origin:

china huizhou

Brand Name:

Temei

Model Number:

TM-L1610SCCDII

Chat Now

Request A Quote

Product Details

Project:

Parameter Declaration

Device Name:

Asynchronous Double-head Laser Cutter

Model:

TM-L1610SIICCD

Work Surface:

620*900mm

Type Of Laser:

CO2 Laser

Optical Path Design:

Adopts A Flying Optical Path Design

Cooling-down Method:

Hybrid Water Cooling Protection System

Driving System:

Imported Mitsubishi Servo Drive From Japan

Drive System:

Taiwan Imported Linear Guide Rail

Control System:

Zhiyuan

Positioning Accuracy:

0.01mm

Multiple Positioning Accuracy:

0.01mm

Cutting Speed:

20m/min

Workbench:

Knife-Blade Table

Working Voltage:

AC 220V/50Hz±5%

Support Format:

DXF, PLT, AI, DST, DSB

Device Size:

2240x1580x1200mm

Weight Of Equipment:

800kg

Applicable Material:

Acrylic, Leather, Organic Glass, Cardboard, Wood, Bamboo, Fabric, Etc.

Highlight:

CO2 Laser Cutting Machine

CO2 Laser Cutter

CO2 Laser Engraving Machine

CNC Laser Cutting Machine

Non Metal Laser Cutter

CO2 Laser Engraver and Cutter

Industrial CO2 Laser Cutter

CO2 Laser Cutting Machine for Wood

CO2 Laser Cutting Machine for Acrylic

CO2 Laser Cutting Machine for Fabric

CO2 Laser Cutting Machine for Leather

CCD Camera Laser Cutting Machine

Automatic CO2 Laser Cutting Machine

Large Format CO2 Laser Cutter

Small CO2 Laser Cutting Machine

Dual Head CO2 Laser Cutter

Gantry CO2 Laser

Payment & Shipping Terms

Visual Camera CO2 Laser Cutting Machine 130W 150 Watt Co2 Laser Cutter For Fabric

Chat Now

Video

RF CO2 200W Integrated Scanning, Marking and Cutting Machine

Chat Now

Video

CO2 150W Integrated Scanning, Marking and Cutting Machine

Chat Now

Video

RF CO2 100W Integrated Scanning, Marking and Cutting Machine

Chat Now

86-400-066-3330

temei@cntemei.cn

Chat Now

Product Description

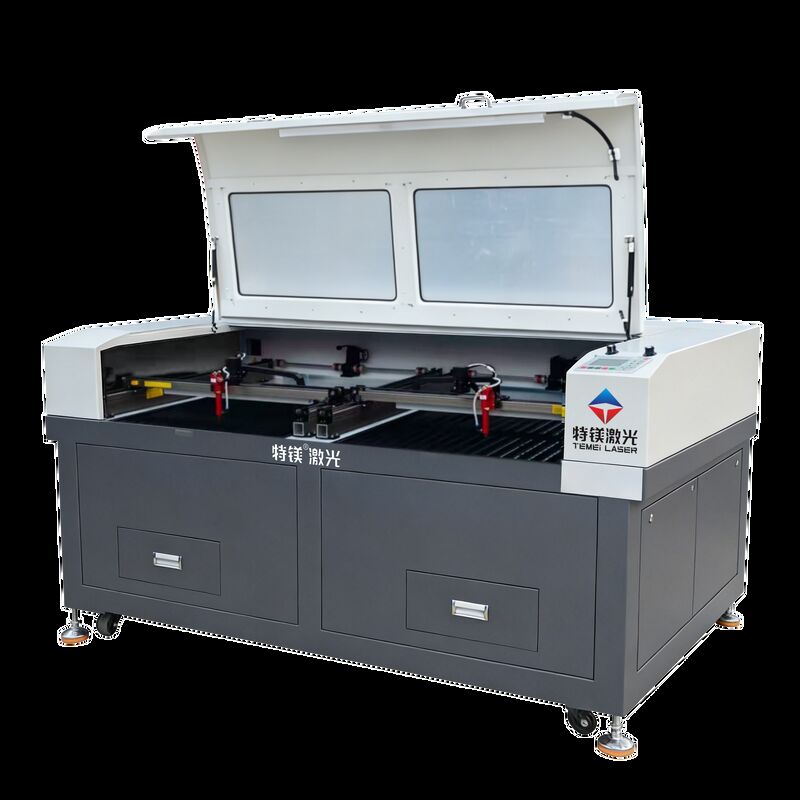

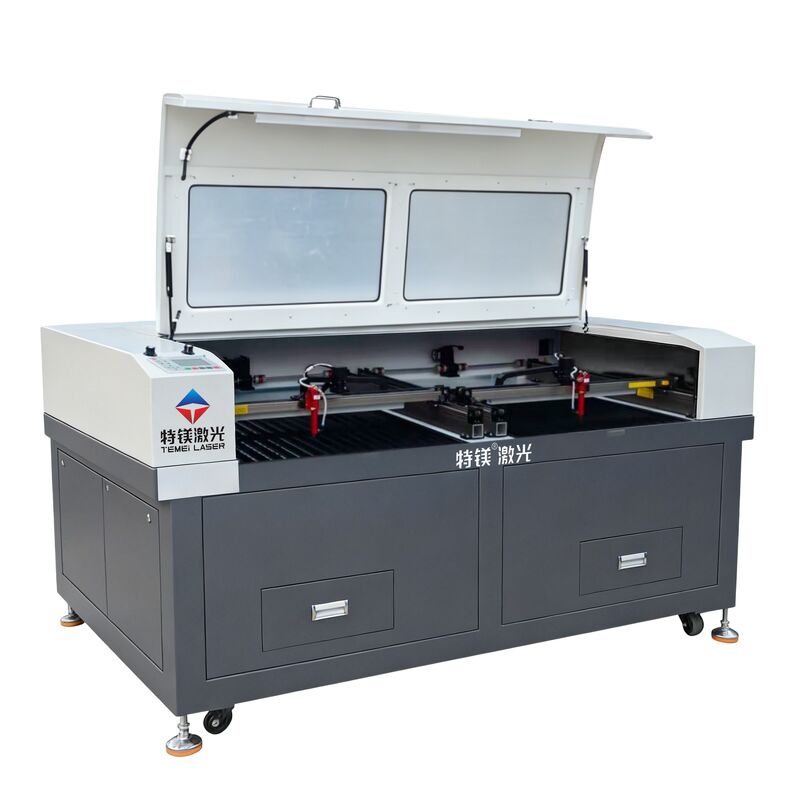

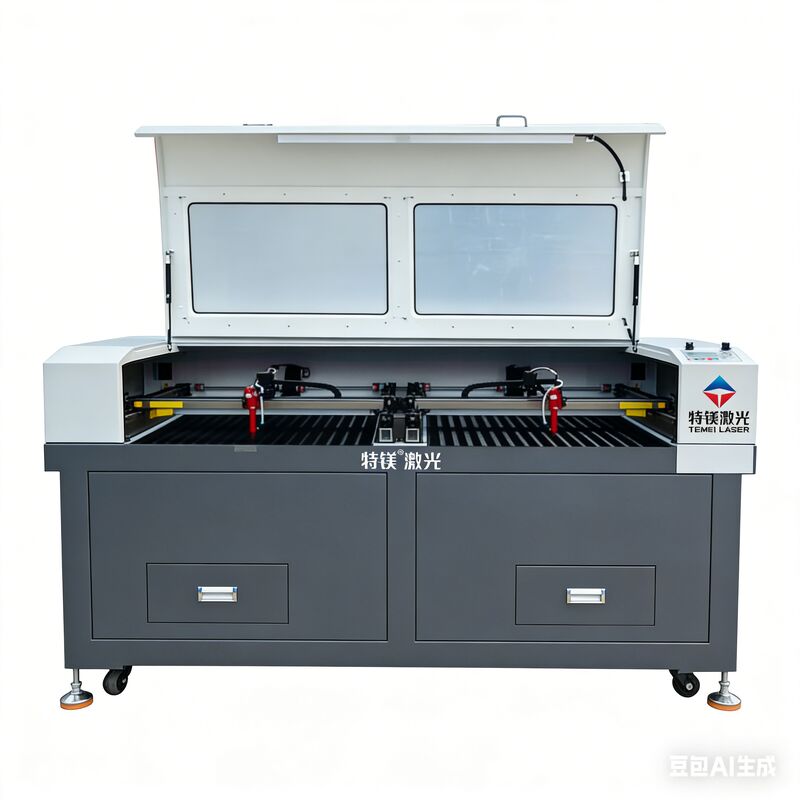

The dual - station CO₂ edge - tracing laser cutting machine is an efficient and precise laser cutting device. Taking the TM - L1610SCCDII of Shenzhen TEMEi Electromechanical Equipment Co., Ltd. as an example, the relevant introduction is as follows:

Core Configuration: The transmission system adopts a combination of TBI screw rods + PMI guide rails + Mitsubishi servo drives, ensuring high transmission accuracy. The machine body features a reinforced square - tube welded bed combined with a lightweight aluminum alloy cross - beam, which is stable, non - deformable, and runs smoothly. It also has a dust - proof design.
Asynchronous Dual-Work-Platform 9060 Small - Format CO₂ Laser Cutting Machine

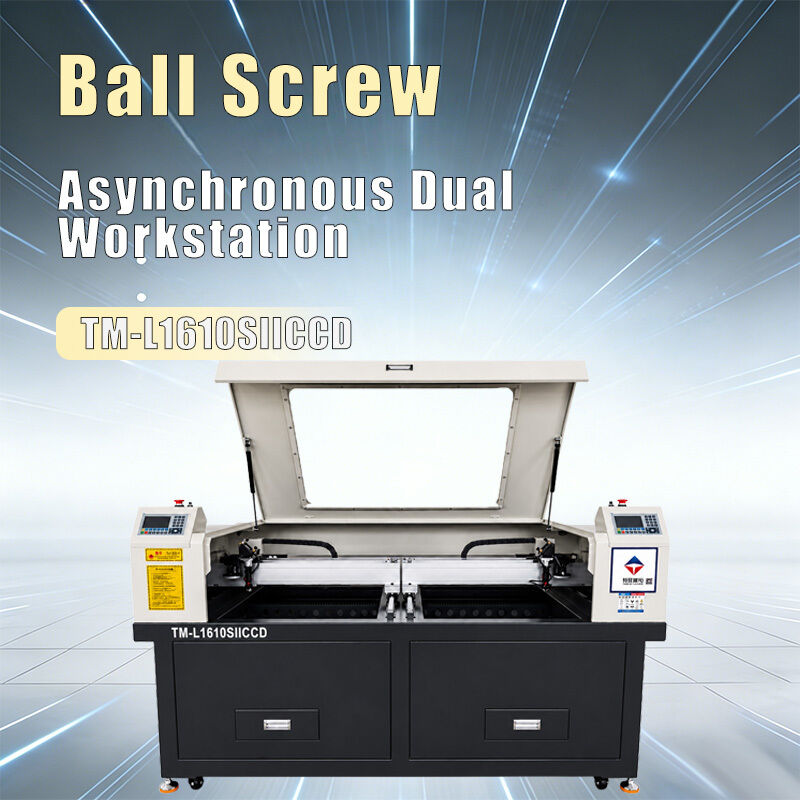

Equipment Highlights: It has an asynchronous dual - station design. The two stations can operate simultaneously or alternately, improving production efficiency, making it suitable for enterprises with large orders and tight delivery schedules. It is equipped with a sealed - off CO₂ laser tube, with power options of 100W, 130W, or 150W, which can meet fine - cutting requirements and handle materials of different thicknesses. In addition, the CCD edge - tracing function can significantly reduce manual positioning errors and time consumption, and has strong adaptability to the cutting of irregular materials.

Application Scenarios: It has a wide range of applications. It can be used for high - precision cutting of acrylic in the advertising industry, such as signboards and light boxes; for fine - shaped cutting of anime peripherals, model ornaments in the cultural and creative / trendy toy fields; for sample processing of leather products and clothing in light industrial manufacturing; as well as for customized cutting of photo frames and architectural models in the home / decoration industry.

Asynchronous Dual-Work-Platform 9060 Small - Format CO₂ Laser Cutting Machine
