Place of Origin:
china huizhou
Brand Name:
Temei
Model Number:
TM-L1610SCCDII
Configuration and Parameters
|
project |
parameter declaration |
|
device name |

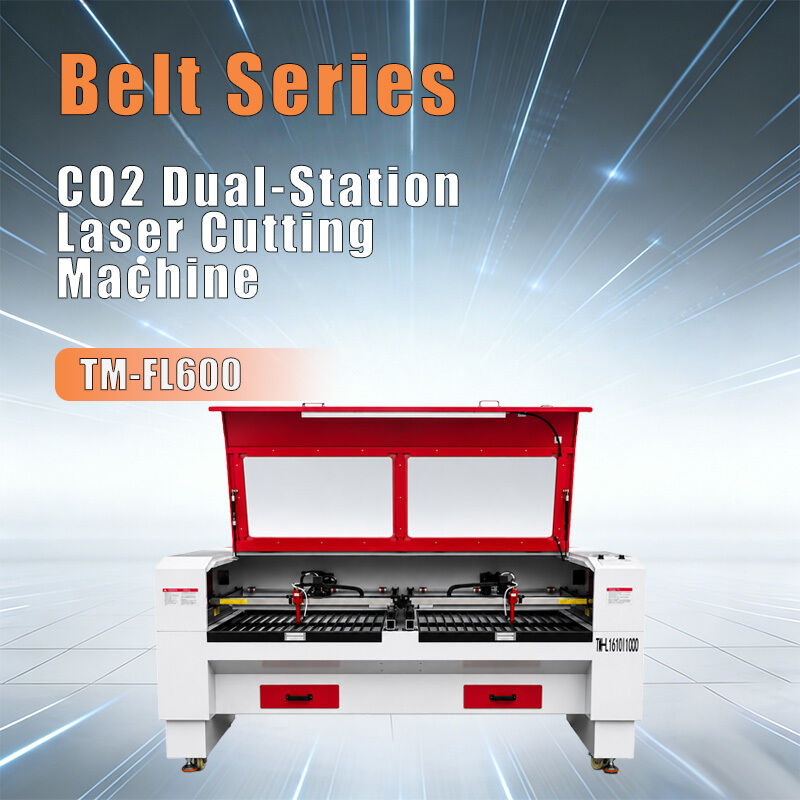

Asynchronous Double-head Laser Cutter |
|
model |
TM-L1610SIICCD |
|
Work Surface |
620*900mm |
|
Type of Laser |
CO2 Laser |
|
optical path design |
Adopts a Flying Optical Path Design |
|
cooling-down method |
Hybrid Water Cooling Protection System |
|
driving system |
Imported Mitsubishi Servo Drive from Japan |
|
drive system |
Taiwan Imported Linear Guide Rail |
|
Control System |
Zhiyuan |
|
Border Inspection System |
Optional CCD Edge Detection Cutting |
|
positioning accuracy |
0.01mm |
|
Multiple positioning accuracy |
0.01mm |
|
cutting speed |
20m/min |
|
Workbench |
Honeycomb Working Table |
|
working voltage |
AC 220V/50Hz±5% |
|
Support format |
DXF, PLT, AI, DST, DSB |
|
Device Size |
2240x1580x1200mm |
|
weight of equipment |
800kg |
|
Applicable Material |
Acrylic, Leather, Organic Glass, Cardboard, Wood, Bamboo, Fabric, etc. |
