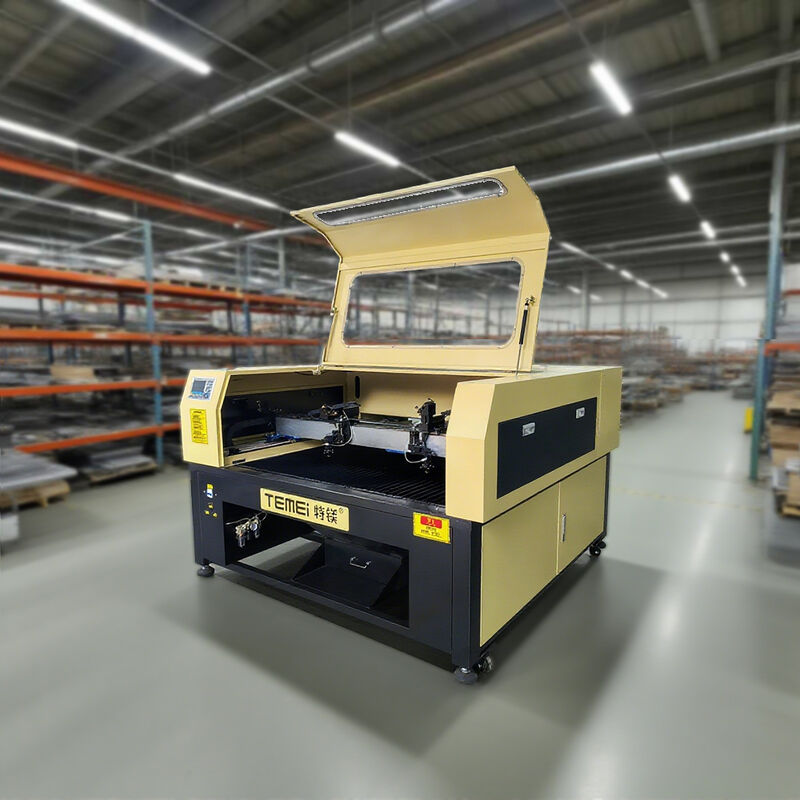

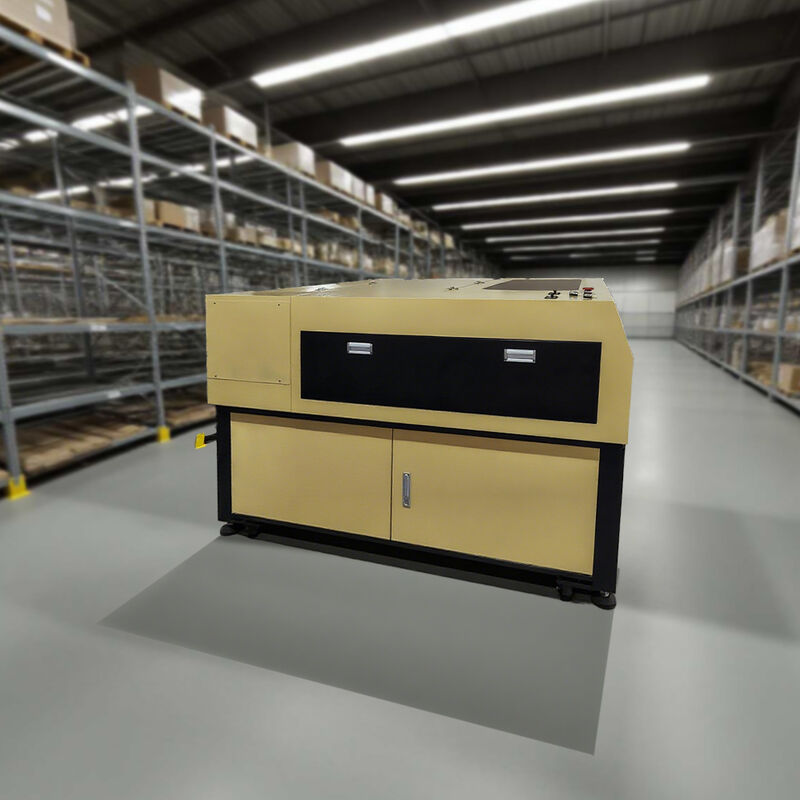

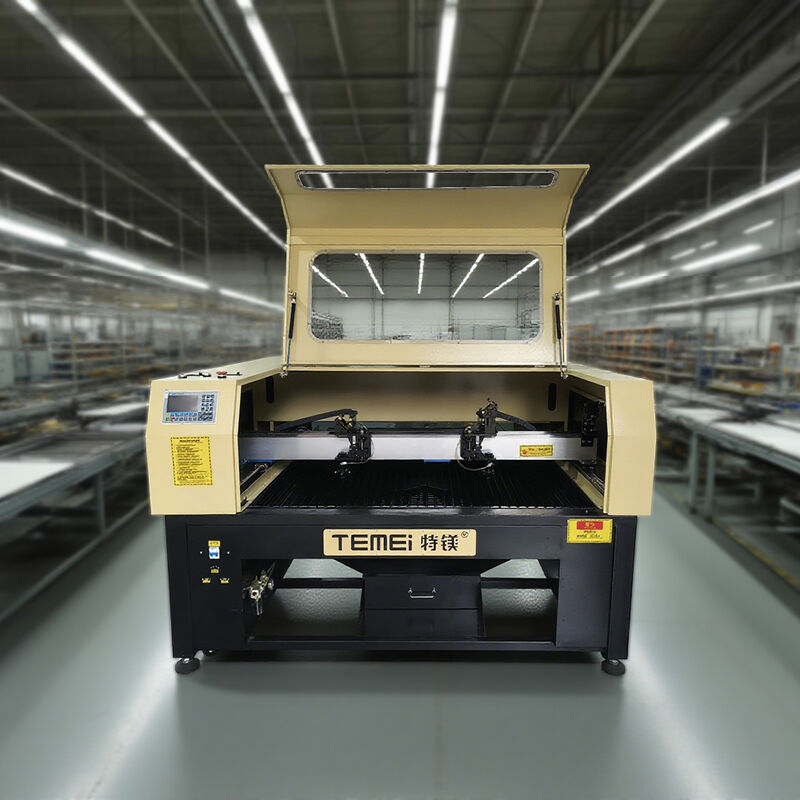

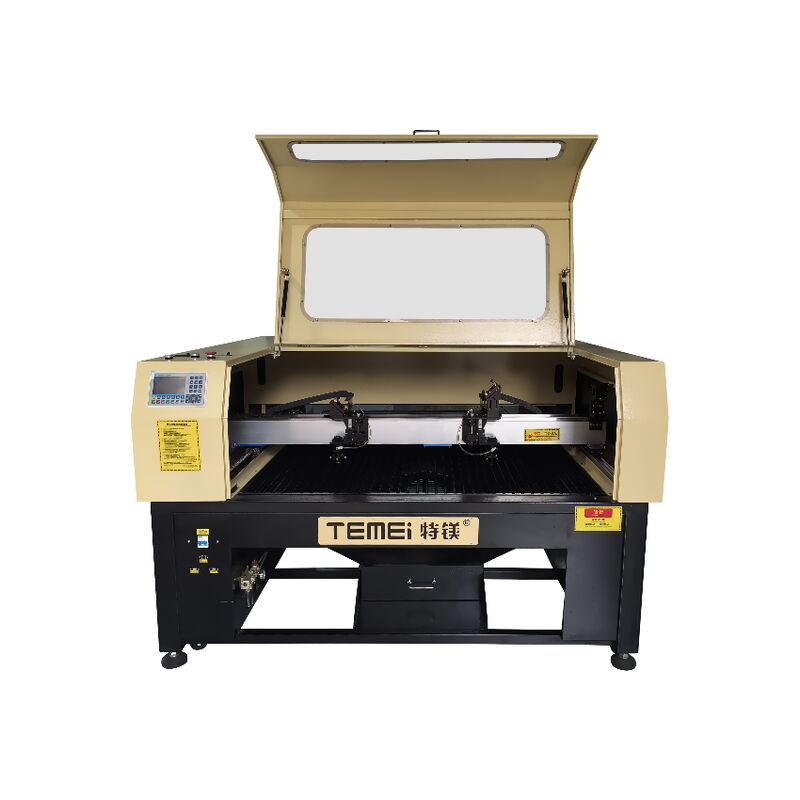

Double Lead Screw CO2 Laser Cutting Machine with CCD Edge Patrol Cutting and 130W-450W Laser Power

The Temei CO₂ dual-head laser cutting machine, manufactured by Shenzhen Temei Machinery & Equipment Co., Ltd. , is built for precision processing of non-metal materials, combining stable motion control with efficient batch production capability.
Using the T9-L1390SII as an example, the machine integrates proven transmission components and a rigid mechanical structure to support reliable cutting performance in day-to-day production environments.

－Mechanical Structure & Motion Control:

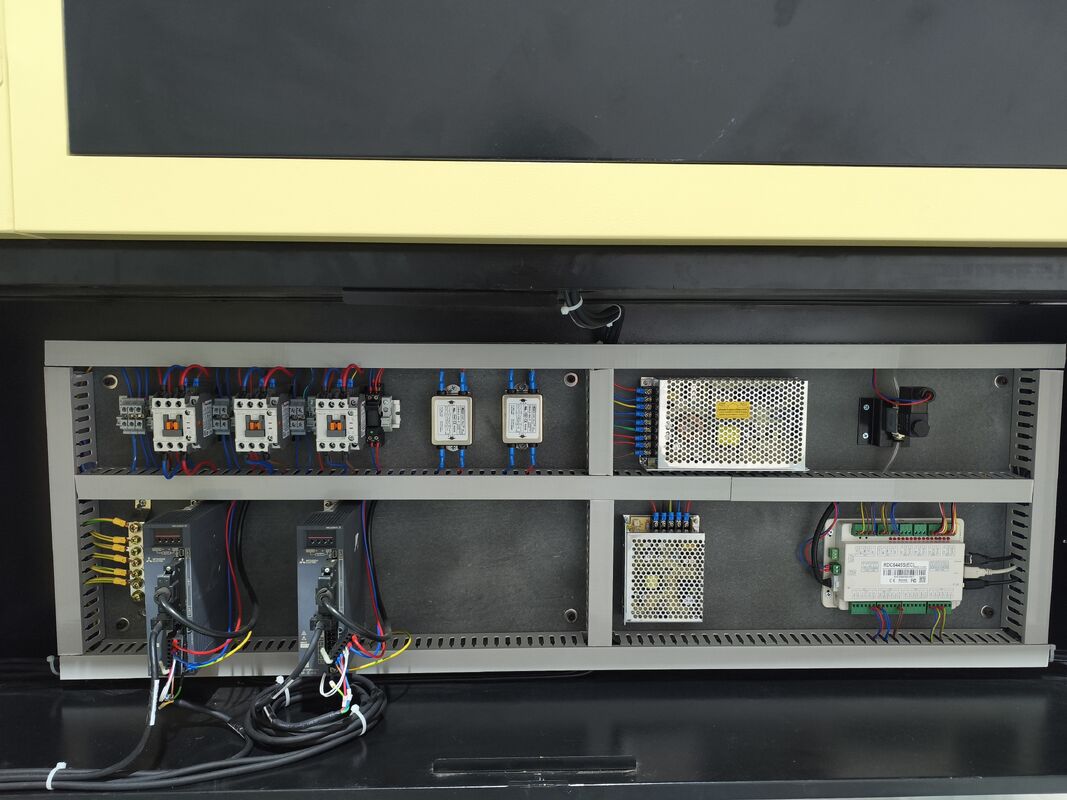

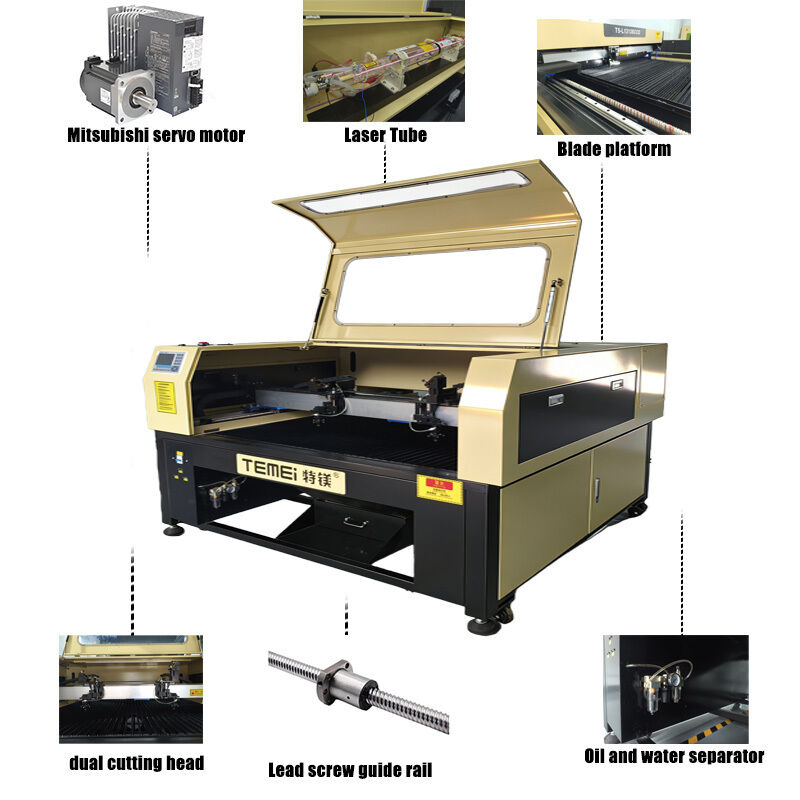

The transmission system uses TBI ball screws, PMI linear guide rails, and Mitsubishi servo drives to maintain accurate positioning and smooth movement during operation. These are widely used industrial components known for stable long-term performance.The machine body features a reinforced square-tube welded frame combined with lightweight aluminum alloy crossbeams. This structure provides good rigidity while allowing responsive high-speed movement. The overall design also includes dust protection for the motion and optical systems, helping reduce contamination and supporting longer service life for critical components.

－Laser System:
The laser system combines a CO₂ laser tube, matched power supply, and professional optical lens assembly to produce a stable, concentrated laser beam for precision cutting.
The result is clean cutting performance with consistent edge quality, especially when processing detailed patterns, curves, and fine contours.

－Production Features:

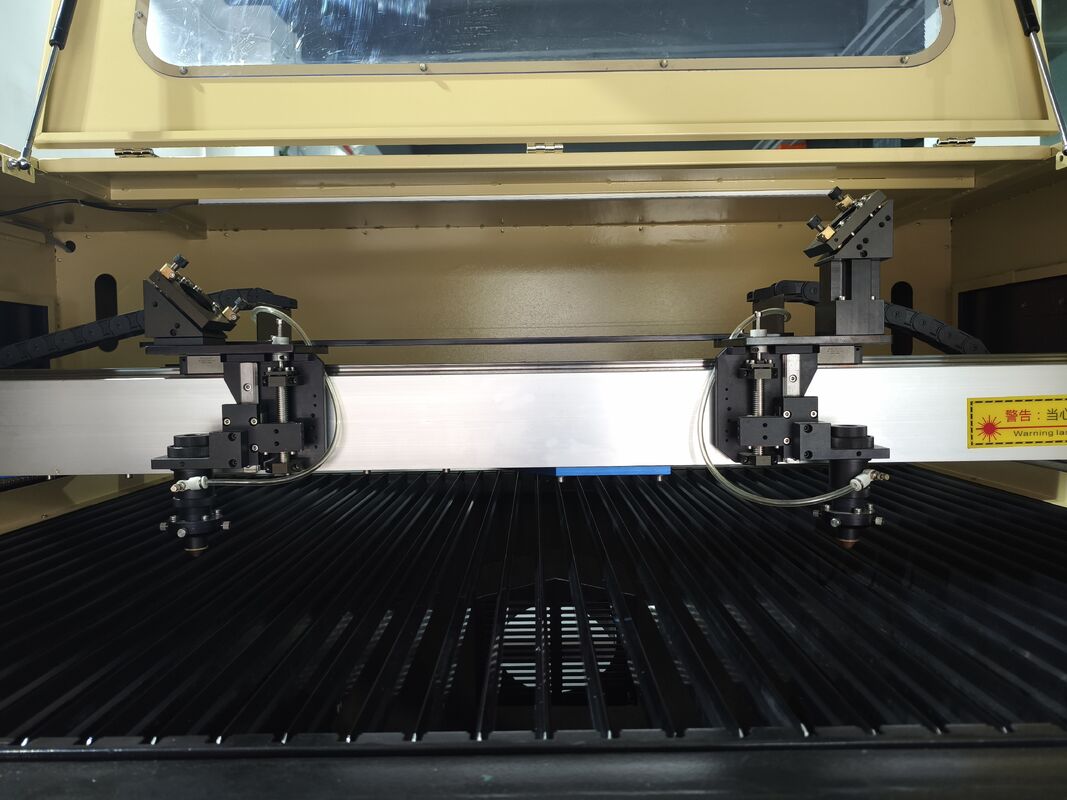

The dual-head design allows both laser heads to work simultaneously, making the machine well suited for batch production and repeated layouts. Compared with a single-head configuration, this can significantly improve overall throughput when processing identical parts.
Under suitable operating conditions, cutting accuracy can reach ±0.02 mm. The micro-step motion control system helps maintain smooth cutting performance, particularly on diagonal lines, arcs, and intricate designs.
The machine supports both online and offline operation. Files can be sent directly from a connected computer or loaded through USB storage for standalone processing. Multi-language software interfaces also help reduce operator training time and simplify daily use.

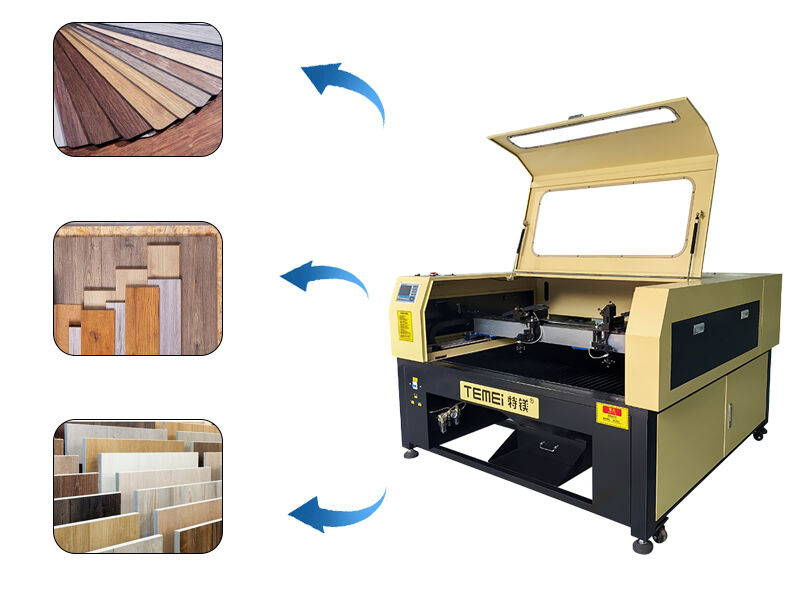

－Typical Applications:
The machine is commonly used for:
* Musical instrument panels and acoustic components
* Handicrafts and decorative products
* Packaging samples and display materials
* Acrylic and plastic sheet processing
* Wooden puzzles and educational toys
* Fine pattern cutting and engraved detail work

Overall, the T9-L1390SII is designed for manufacturers that need reliable cutting accuracy, efficient production capacity, and stable operation across a wide range of non-metal processing applications.
