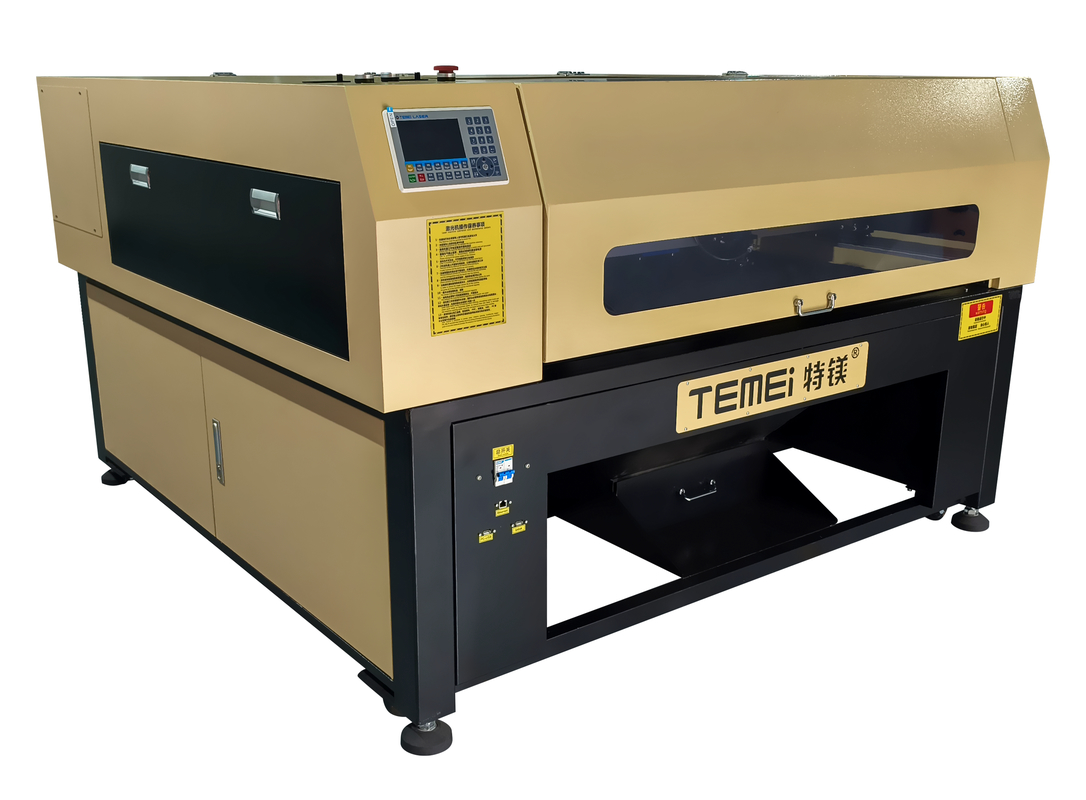

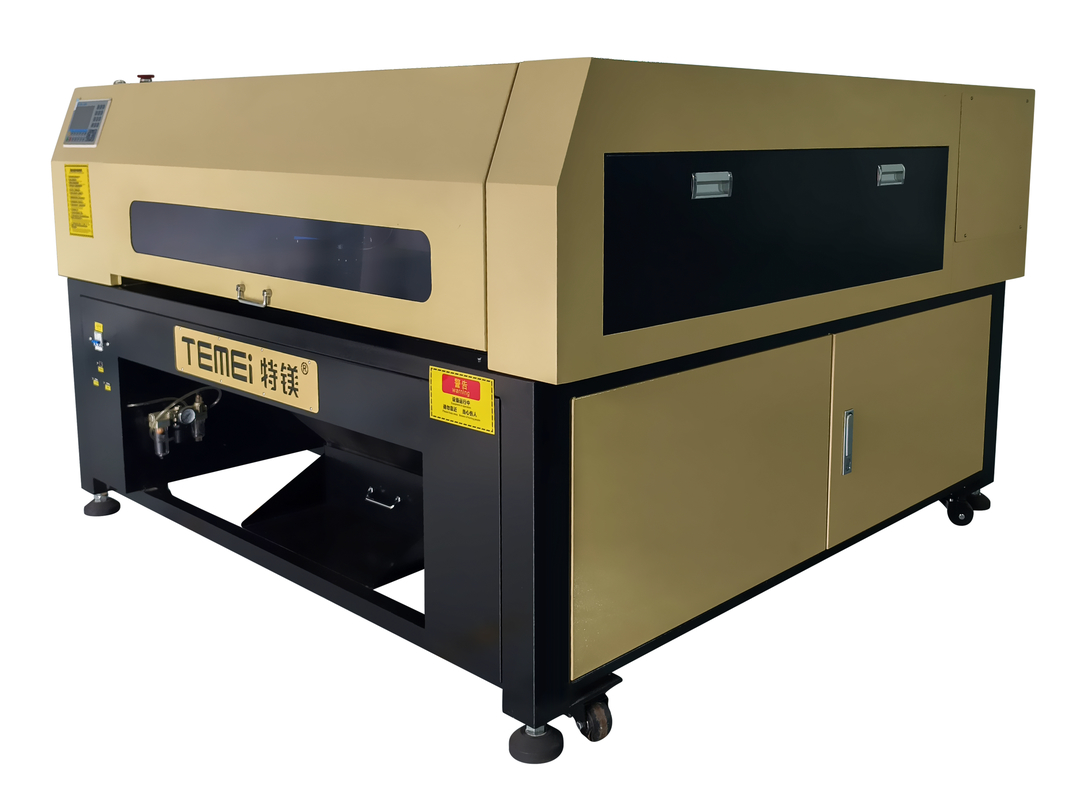

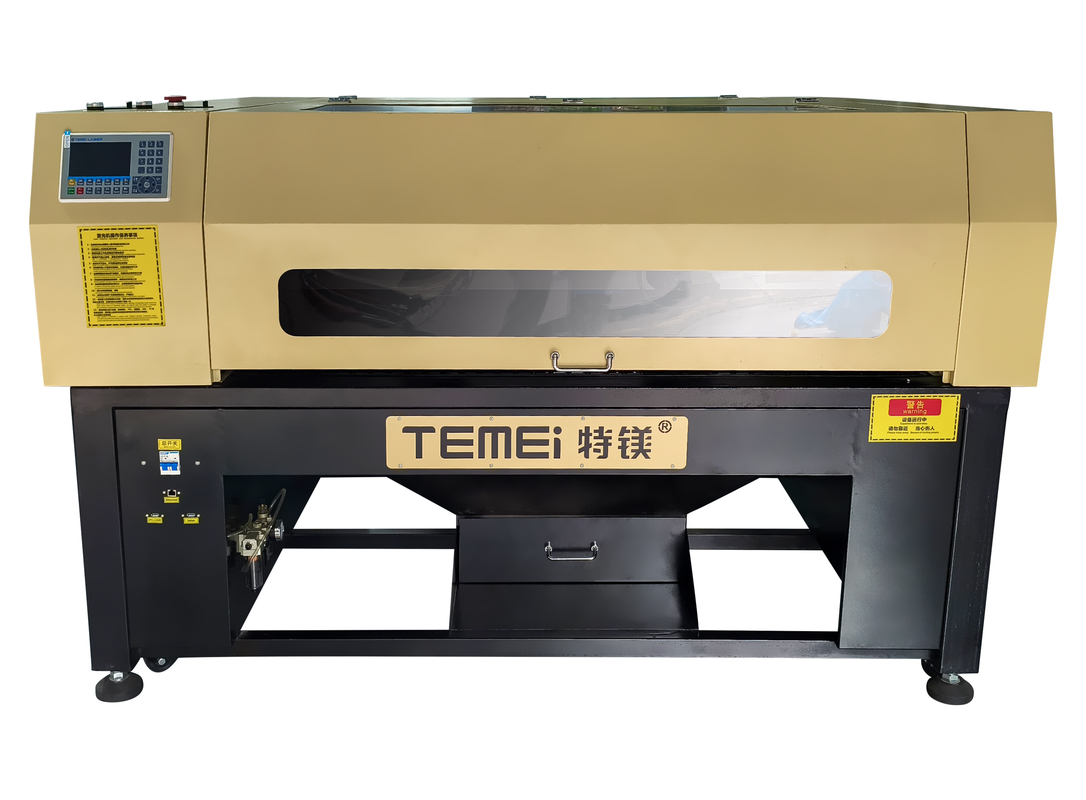

Customized 300w Co2 Laser Cutter Max 30mm Thickness Bamboo Board Laser Cutting Machine
| Place of Origin | china shenzhen |
|---|---|
| Brand Name | Temei |
| Model Number | T9-L1390S |
| Minimum Order Quantity | 1 |
| Price | 5999usd~10999usd |
| Packaging Details | wooden box |
| Delivery Time | 3~7day |
| Payment Terms | T/T |
| Supply Ability | 1,000 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | CO2 Laser Cutting Machine | Model | 1300x900mm |
|---|---|---|---|
| Laser Source | CO2 Laser Tube | Laser Power | 130W/150W/180W/200W/300W/450W |
| Positioning Accuracy | 0.02mm | Repet.Positioning Accuracy | 0.01mm |
| Max.Cutting Thickness | 30mm (acrylic,plywood,rubber,MDF) | Power Supply | 220V,50/60Hz |
| File Format | DXF, PLT, AI, DST, DSB | Net Weight | 500kgs |
| Application Materials | Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc. | Dimensions | 1750x1650x1150 Mm |
| Highlight | Customized 300w Co2 Laser Cutter,30mm Board Laser Cutting Machine,Customized Bamboo Board Laser Cutting Machine |
||
Product Description
Product Introduction:
The 1390 Co2 Laser Cutting Machine stands as a premium CNC Co2 laser device tailored specifically for tasks requiring precise cutting and engraving. Boasting a roomy 1300mm×900mm workbench, it provides abundant space to handle diverse materials in a smooth and efficient manner.
A key advantage that sets this CNC Co2 laser cutter apart is its outstanding positioning precision of ±0.01mm, guaranteeing that each cut meets high standards of accuracy and uniformity. No matter if you’re tackling detailed, complex patterns or large-sized projects, this machine consistently produces dependable outcomes.
Fitted with a stable water cooling setup, this CNC Co2 laser cutting equipment keeps its operating temperature at an ideal level during long hours of use. This means you can carry out continuous project work without having to worry about overheating issues, while the cooling system also helps maintain steady performance and extends the machine’s service life.
Cutting Accuracy
Our laser cutting machine integrates high-precision PMI lead screw guides and Japanese Mitsubishi servo motor drive system to ensure stable accuracy during continuous operation.
Cutting Thickness Parameters
| Material Thickness | Processing Speed (mm/s) | Processing Power |
|---|---|---|
| 1mm | 60-70 | 35-40 |
| 3mm | 50-60 | 50-60 |
| 5mm | 35-40 | 60-65 |
| 8mm | 17-23 | 60-65 |
| 10mm | 12-17 | 60-65 |
| 12mm | 10-14 | 65-70 |
| 15mm | 6-8 | 65-70 |
| 20mm | 2.5-4 | 65-70 |
| 30mm | 1.4-1.8 | 65-70 |
Note: The above parameters are for reference only. The cutting effect may vary based on material quality. Please adjust power and speed according to actual conditions.
Configuration and Parameters
|
Name |
CO2 laser cutting machine |
|
Model |
T9-L1390S |
|
Working Size |
1300x900mm |
|
Laser Source |
CO2 Laser Tube |
|
Laser Power |
130W/150W/180W/200W/300W/450W |
|
Cooling Method |
S&A CW-5200/6000/6200 Chiller |
|
Drive System |
Mitsubishi Servo Driver & Motor from Japan |
|
Transmission System |
TBI Ball Screw & PMI Linear Guide from Taiwan |
|
Control System |
Ruida RDC6442/RDV6445 |
|
CCD edge patrol cutting function: |
Optional |
|

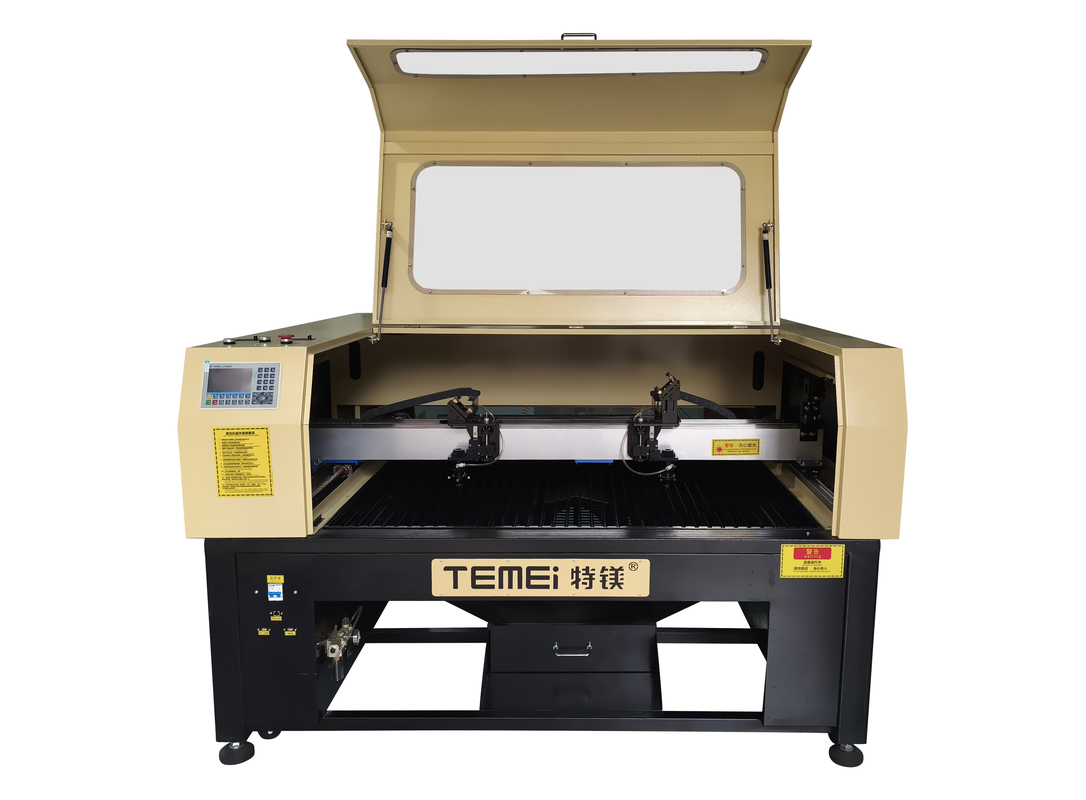

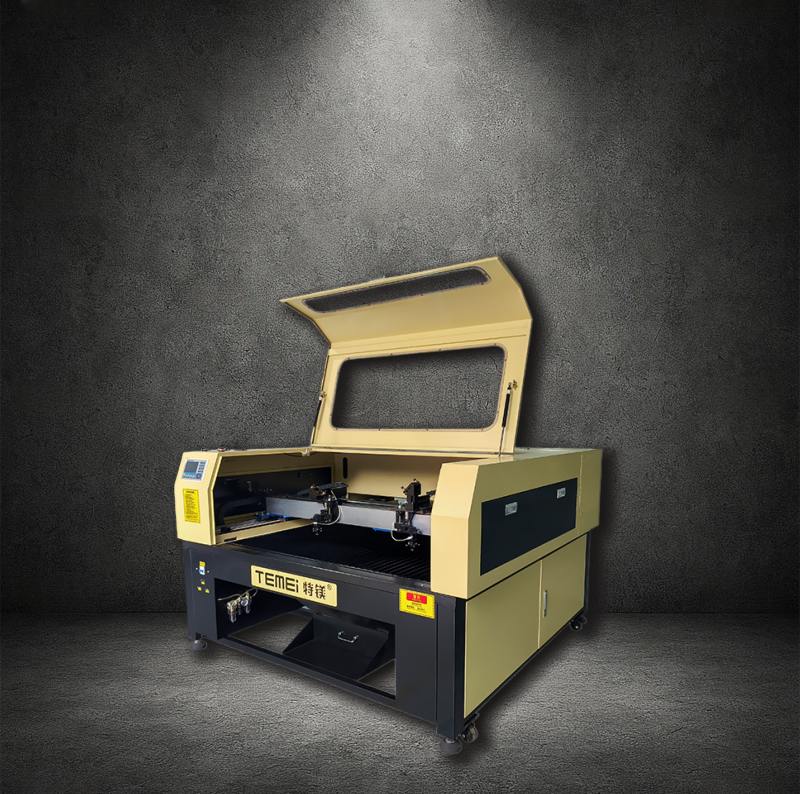

Double cutting head |
Optional |
|
Positioning Accuracy |
0.02mm |
|
Repet.Positioning Accuracy |
0.01mm |
|
Max.Speed |
≤40m/min |
|
Max.Cutting Thickness |
30mm (acrylic,plywood,rubber,MDF) |
|
Working table |
Blade platform / Cellular platorm (optional) |
|
Red-dot Positioning |
Yes |
|
Auxiliary Equipment |
Air pump,Centrifugal fans(1.1kw) |
|
Power supply |
220V,50/60Hz |
|
File format |
DXF, PLT, AI, DST, DSB |
|
Dimensions |
1750x1650x1150 mm |
|
Net Weight |
500kgs |
|
Application Materials |
Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc. |
