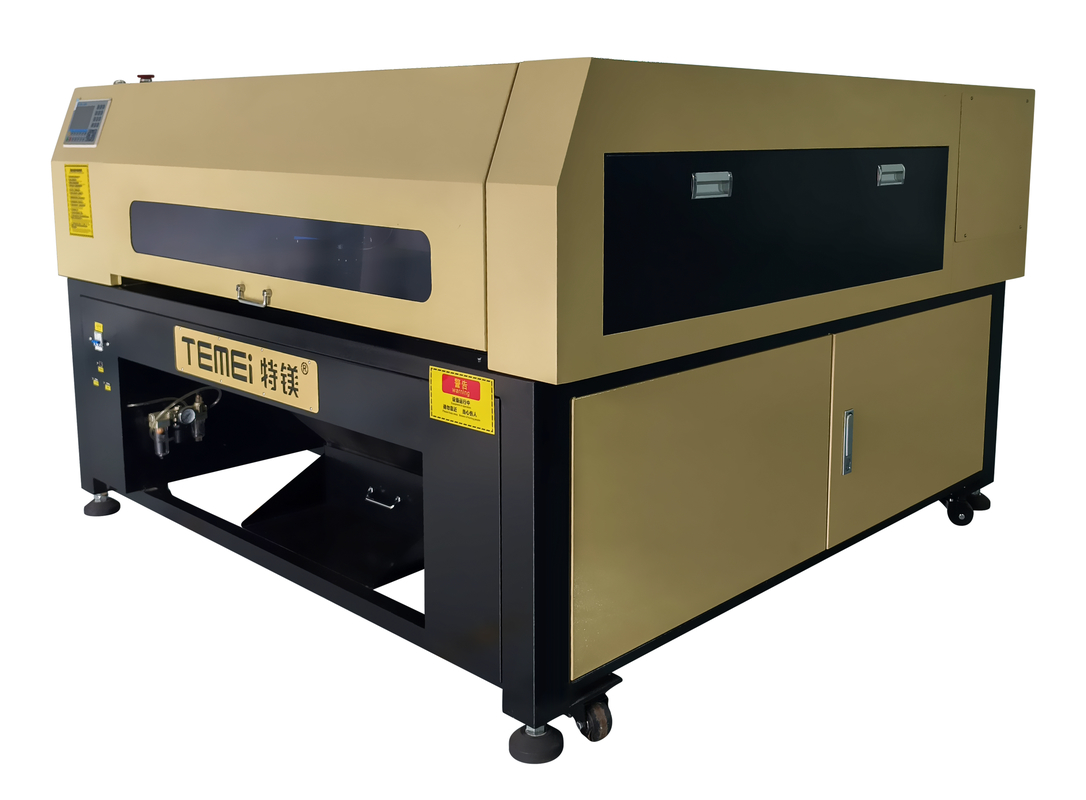

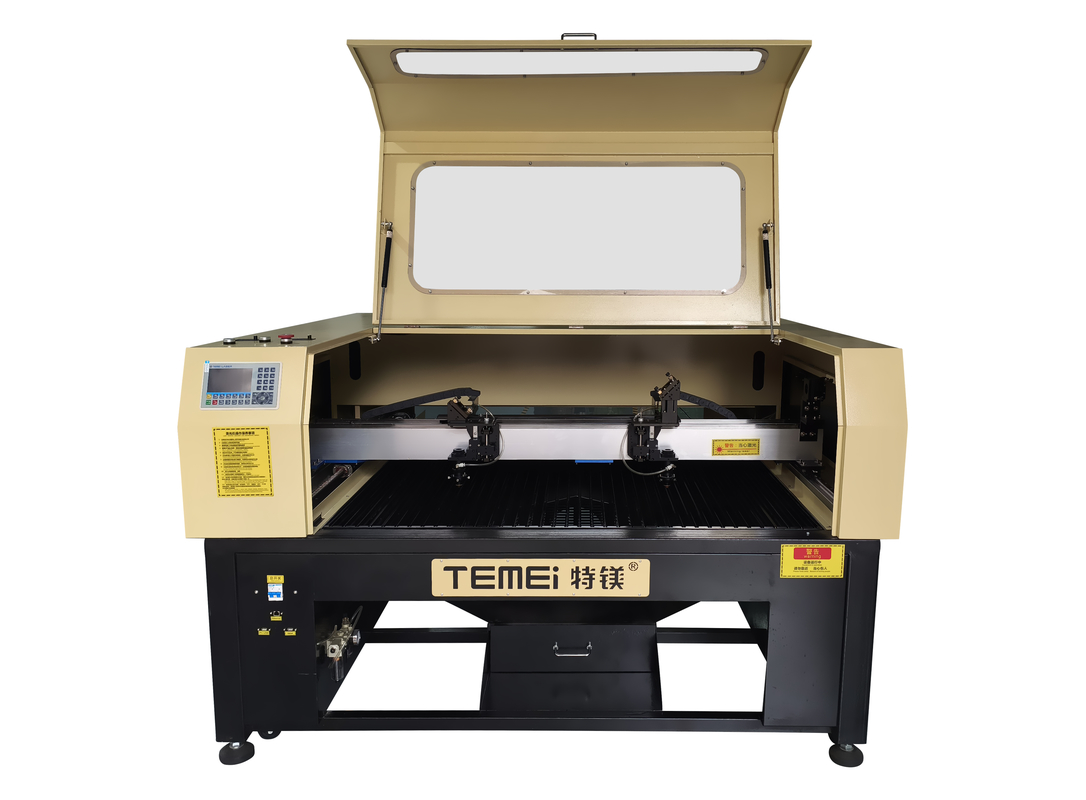

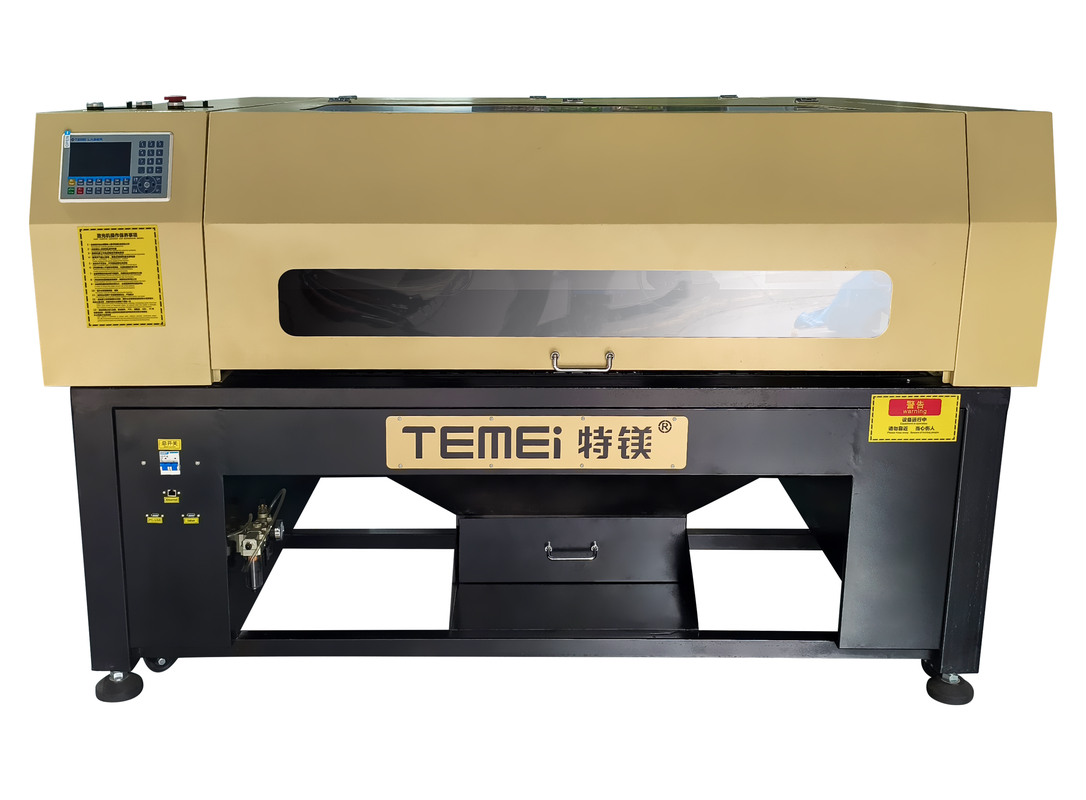

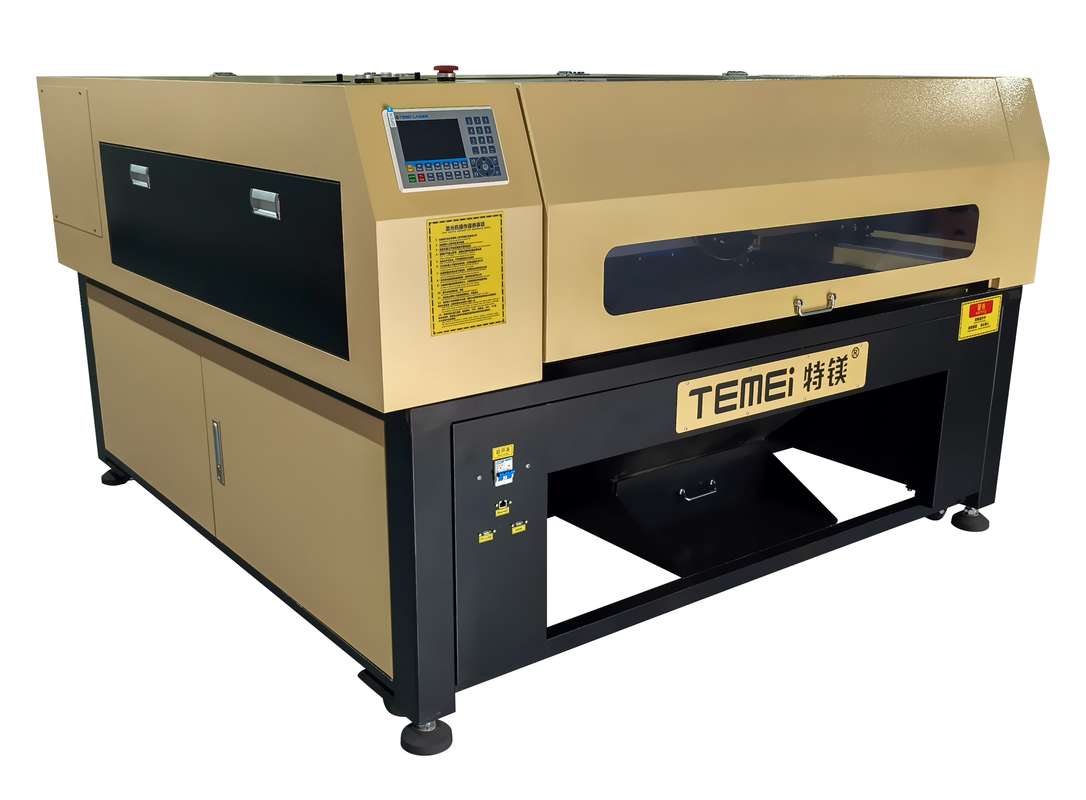

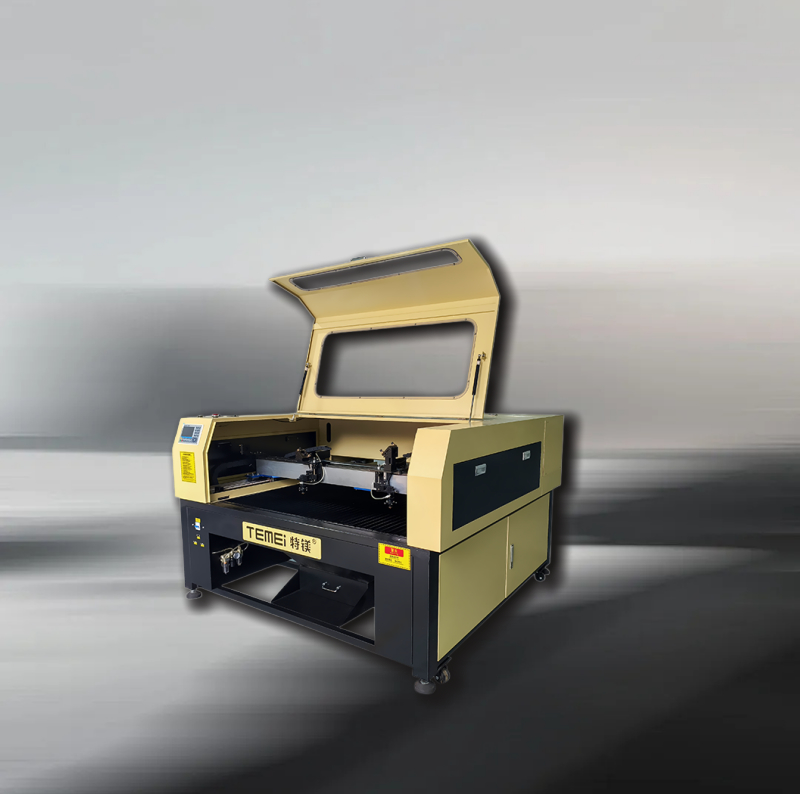

Acrylic CO2 Laser Cutting Machine 1390 150 Watt Laser Engraver For Bamboo Board
| Place of Origin | china shenzhen |
|---|---|
| Brand Name | Temei |
| Model Number | T9-L1390S |
| Minimum Order Quantity | 1 |
| Price | 5999usd~10999usd |
| Packaging Details | wooden box |
| Delivery Time | 3~7day |
| Payment Terms | T/T |
| Supply Ability | 1,000 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | CO2 Laser Cutting Machine | Model | 1300x900mm |
|---|---|---|---|
| Laser Source | CO2 Laser Tube | Laser Power | 130W/150W/180W/200W/300W/450W |
| Positioning Accuracy | 0.02mm | Repet.Positioning Accuracy | 0.01mm |
| Max.Cutting Thickness | 30mm (acrylic,plywood,rubber,MDF) | Power Supply | 220V,50/60Hz |
| File Format | DXF, PLT, AI, DST, DSB | Net Weight | 500kgs |
| Application Materials | Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc. | Dimensions | 1750x1650x1150 Mm |
| Highlight | Acrylic CO2 Laser Cutting Machine 1390,Bamboo Board 150 Watt Laser Engraver,Bamboo Board laser machine 1390 |
||
Product Description
T9-L1390S Wood Board CO2 Laser Cutting Machine
Cutting Thickness Parameters
| Material Thickness | Processing Speed (mm/s) | Processing Power |
|---|---|---|
| 1mm | 60-70 | 35-40 |
| 3mm | 50-60 | 50-60 |
| 5mm | 35-40 | 60-65 |
| 8mm | 17-23 | 60-65 |
| 10mm | 12-17 | 60-65 |
| 12mm | 10-14 | 65-70 |
| 15mm | 6-8 | 65-70 |
| 20mm | 2.5-4 | 65-70 |
| 30mm | 1.4-1.8 | 65-70 |
Note: The above parameters are for reference only. The cutting effect may vary based on material quality. Please adjust power and speed according to actual conditions.
Configuration and Parameters
|
Name |
CO2 laser cutting machine |
|
Model |
T9-L1390S |
|
Working Size |
1300x900mm |
|
Laser Source |
CO2 Laser Tube |
|
Laser Power |
130W/150W/180W/200W/300W/450W |
|
Cooling Method |
S&A CW-5200/6000/6200 Chiller |
|
Drive System |
Mitsubishi Servo Driver & Motor from Japan |
|
Transmission System |
TBI Ball Screw & PMI Linear Guide from Taiwan |
|
Control System |
Ruida RDC6442/RDV6445 |
|
CCD edge patrol cutting function: |
Optional |
|
Double cutting head |
Optional |
|
Positioning Accuracy |
0.02mm |
|
Repet.Positioning Accuracy |
0.01mm |
|
Max.Speed |
≤40m/min |
|
Max.Cutting Thickness |
30mm (acrylic,plywood,rubber,MDF) |
|
Working table |
Blade platform / Cellular platorm (optional) |
|
Red-dot Positioning |
Yes |
|
Auxiliary Equipment |
Air pump,Centrifugal fans(1.1kw) |
|
Power supply |
220V,50/60Hz |
|
File format |
DXF, PLT, AI, DST, DSB |
|
Dimensions |
1750x1650x1150 mm |
|
Net Weight |
500kgs |
|
Application Materials |
Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc. |
Exhibition and Inspection
Support and Services:
The 1390 CO2 Laser Cutting Machine is a versatile and reliable piece of equipment designed for precision cutting of various materials. Our Product Technical Support and Services for this machine include:
- Onsite installation and setup to ensure proper functioning of the equipment.
- Training sessions for operators to maximize productivity and efficiency.
- Troubleshooting and maintenance services to address any issues that may arise.
- Software updates and technical assistance to keep the machine up-to-date and running smoothly.
- Replacement parts and repair services to minimize downtime and keep production on track.
Packing and Shipping:
Product Packaging for 1390 Co2 Laser Cutting Machine:
The 1390 Co2 Laser Cutting Machine is carefully packaged in a sturdy wooden crate to ensure safe transportation and delivery.
Shipping Information:
Once the order is processed, the product will be shipped via a reliable courier service with tracking information provided to the customer.
