500W 1390 Co2 Laser Cutting Machine Composite Panel Wood CO2 Laser Cutter

  • 500W 1390 Co2 Laser Cutting Machine Composite Panel Wood CO2 Laser Cutter
  • 500W 1390 Co2 Laser Cutting Machine Composite Panel Wood CO2 Laser Cutter
  • 500W 1390 Co2 Laser Cutting Machine Composite Panel Wood CO2 Laser Cutter
  • 500W 1390 Co2 Laser Cutting Machine Composite Panel Wood CO2 Laser Cutter
  • 500W 1390 Co2 Laser Cutting Machine Composite Panel Wood CO2 Laser Cutter
  • 500W 1390 Co2 Laser Cutting Machine Composite Panel Wood CO2 Laser Cutter
Place of Origin china shenzhen
Brand Name Temei
Model Number T9-L1390S
Minimum Order Quantity 1
Price 5999usd~10999usd
Packaging Details wooden box
Delivery Time 3~7day
Payment Terms T/T
Supply Ability 1,000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name CO2 Laser Cutting Machine Model 1300x900mm
Laser Source CO2 Laser Tube Laser Power 130W/150W/180W/200W/300W/450W
Positioning Accuracy 0.02mm Repet.Positioning Accuracy 0.01mm
Max.Cutting Thickness 30mm (acrylic,plywood,rubber,MDF) Power Supply 220V,50/60Hz
File Format DXF, PLT, AI, DST, DSB Net Weight 500kgs
Application Materials Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc. Dimensions 1750x1650x1150 Mm
Highlight

500W 1390 Co2 Laser Cutting Machine

,

Composite Panel Wood CO2 Laser Cutter

,

500W Wood CO2 Laser Cutter
Leave a Message
Product Description
T9-L1390S Wood Board CO2 Laser Cutting Machine

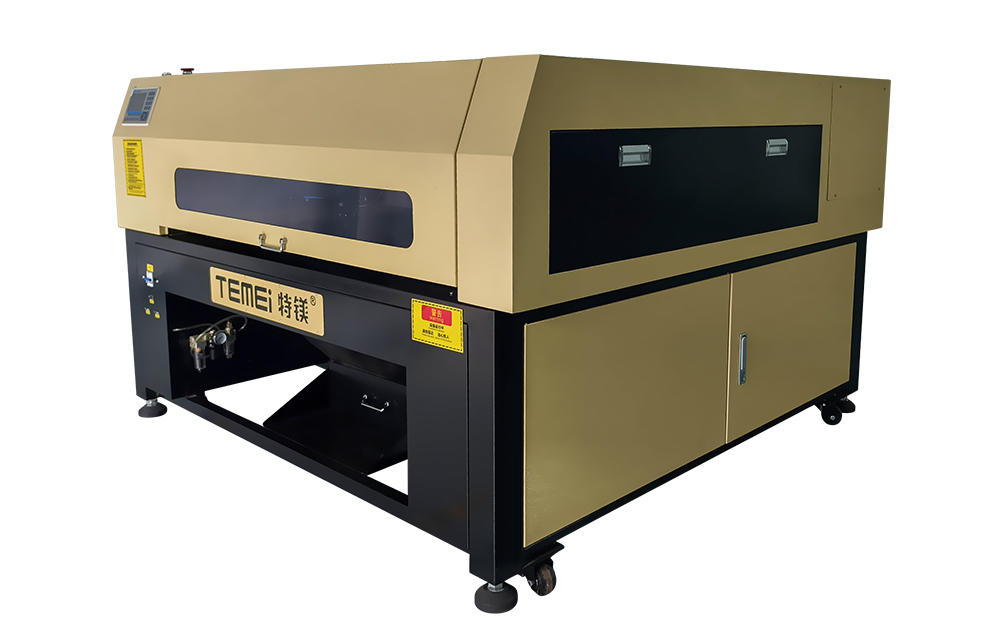

500W 1390 Co2 Laser Cutting Machine Composite Panel Wood CO2 Laser Cutter 0

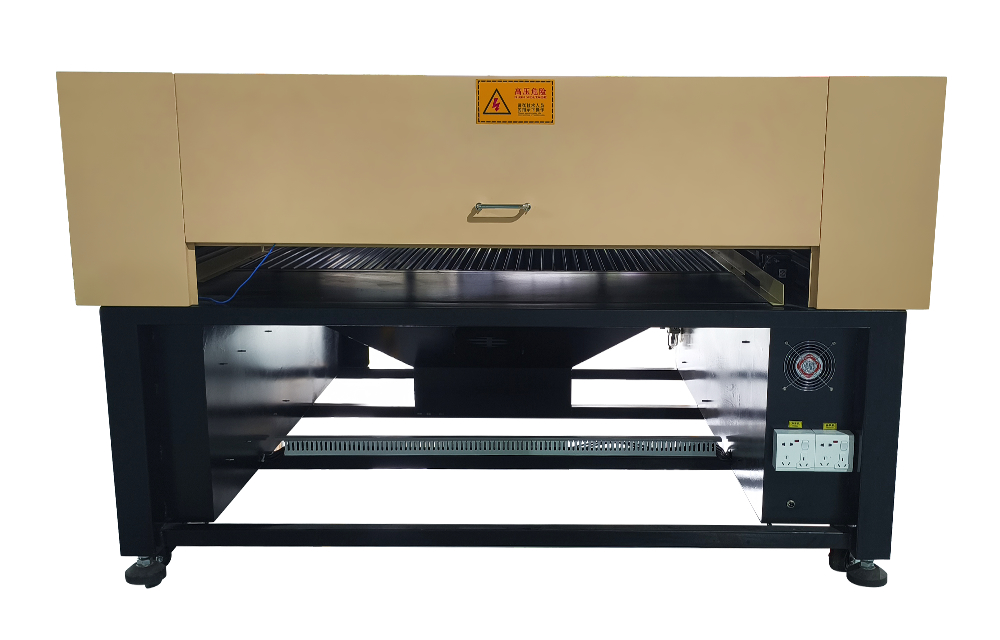

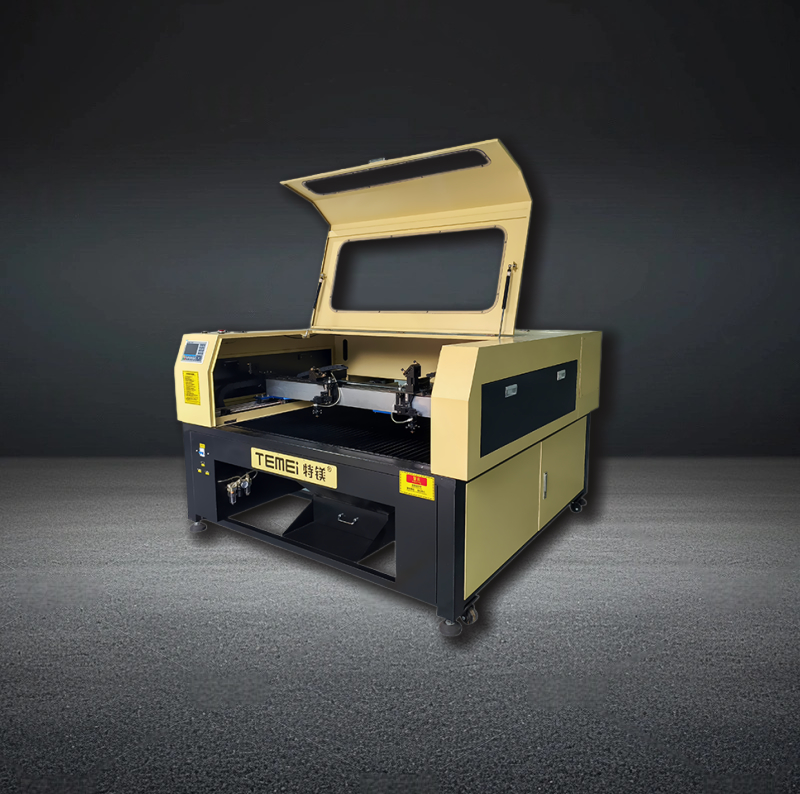

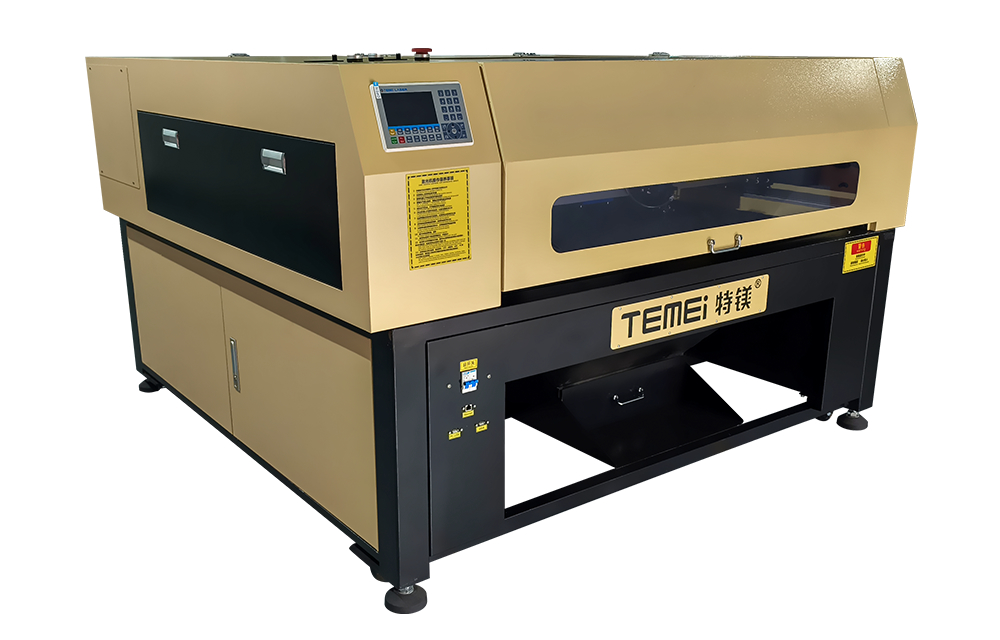

500W 1390 Co2 Laser Cutting Machine Composite Panel Wood CO2 Laser Cutter 1500W 1390 Co2 Laser Cutting Machine Composite Panel Wood CO2 Laser Cutter 2500W 1390 Co2 Laser Cutting Machine Composite Panel Wood CO2 Laser Cutter 3

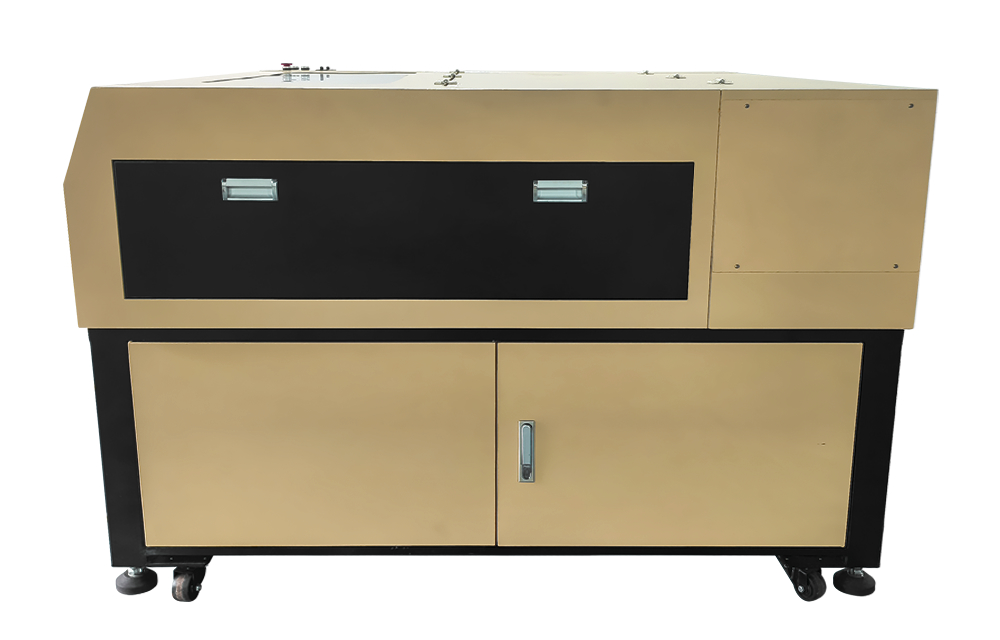

500W 1390 Co2 Laser Cutting Machine Composite Panel Wood CO2 Laser Cutter 4

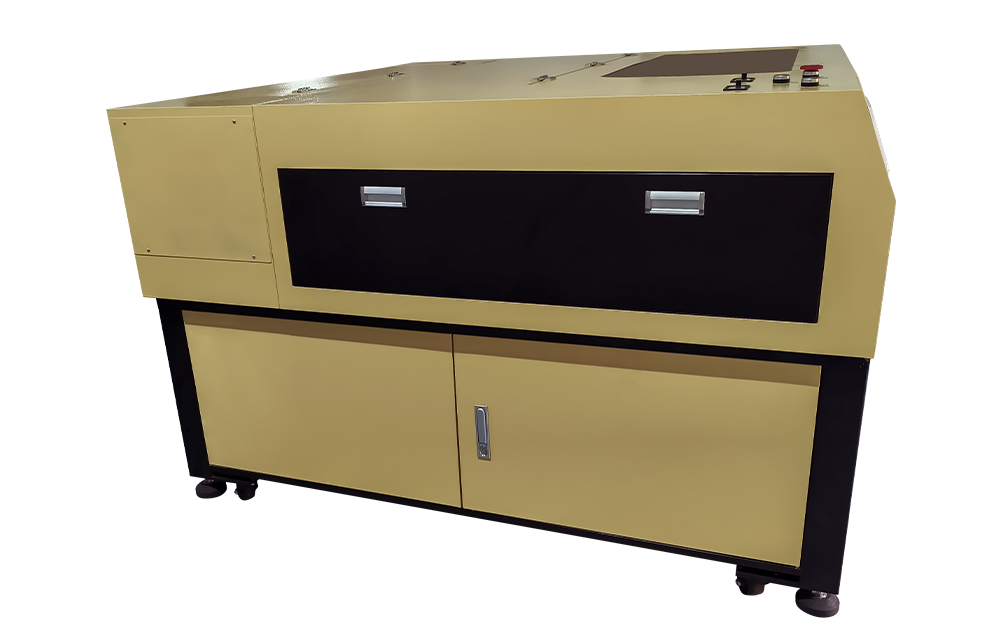

500W 1390 Co2 Laser Cutting Machine Composite Panel Wood CO2 Laser Cutter 5



Cutting Thickness Parameters
Material Thickness Processing Speed (mm/s) Processing Power
1mm 60-70 35-40
3mm 50-60 50-60
5mm 35-40 60-65
8mm 17-23 60-65
10mm 12-17 60-65
12mm 10-14 65-70
15mm 6-8 65-70
20mm 2.5-4 65-70
30mm 1.4-1.8 65-70

Note: The above parameters are for reference only. The cutting effect may vary based on material quality. Please adjust power and speed according to actual conditions.

Configuration and Parameters

 Name

CO2 laser cutting machine

 Model

T9-L1390S

Working Size

1300x900mm

Laser Source

CO2 Laser Tube

Laser Power

130W/150W/180W/200W/300W/450W

Cooling Method

S&A CW-5200/6000/6200 Chiller

Drive System

Mitsubishi Servo Driver & Motor from Japan

Transmission System

TBI Ball Screw & PMI Linear Guide from Taiwan

Control System

Ruida RDC6442/RDV6445

CCD edge patrol cutting function:

Optional

Double cutting head

Optional

Positioning Accuracy

0.02mm

Repet.Positioning Accuracy

0.01mm

Max.Speed

≤40m/min

Max.Cutting Thickness

30mm (acrylic,plywood,rubber,MDF)

 Working table

Blade platform / Cellular platorm (optional)

Red-dot Positioning

Yes

 Auxiliary Equipment

Air pump,Centrifugal fans(1.1kw)

Power supply

220V,50/60Hz

File format

DXF, PLT, AI, DST, DSB

Dimensions

1750x1650x1150 mm

Net Weight

500kgs

Application Materials

Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc.
Exhibition and Inspection
500W 1390 Co2 Laser Cutting Machine Composite Panel Wood CO2 Laser Cutter 6
Packaging and Logistics
500W 1390 Co2 Laser Cutting Machine Composite Panel Wood CO2 Laser Cutter 7
