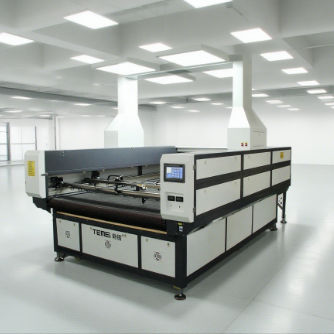

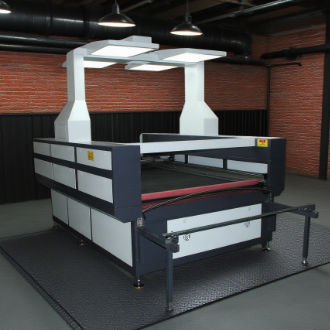

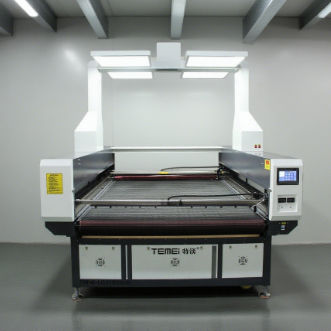

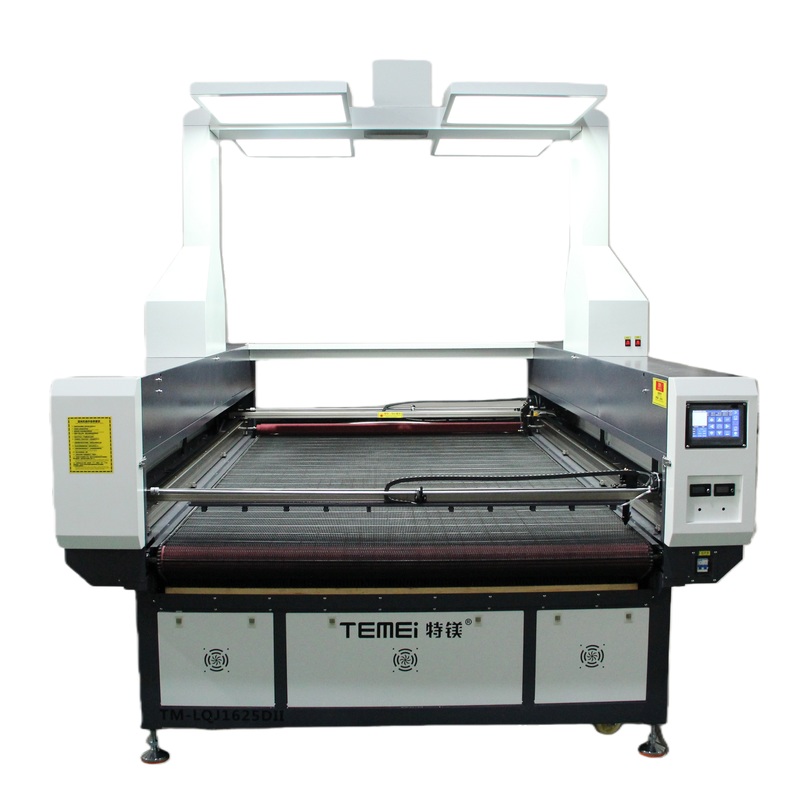

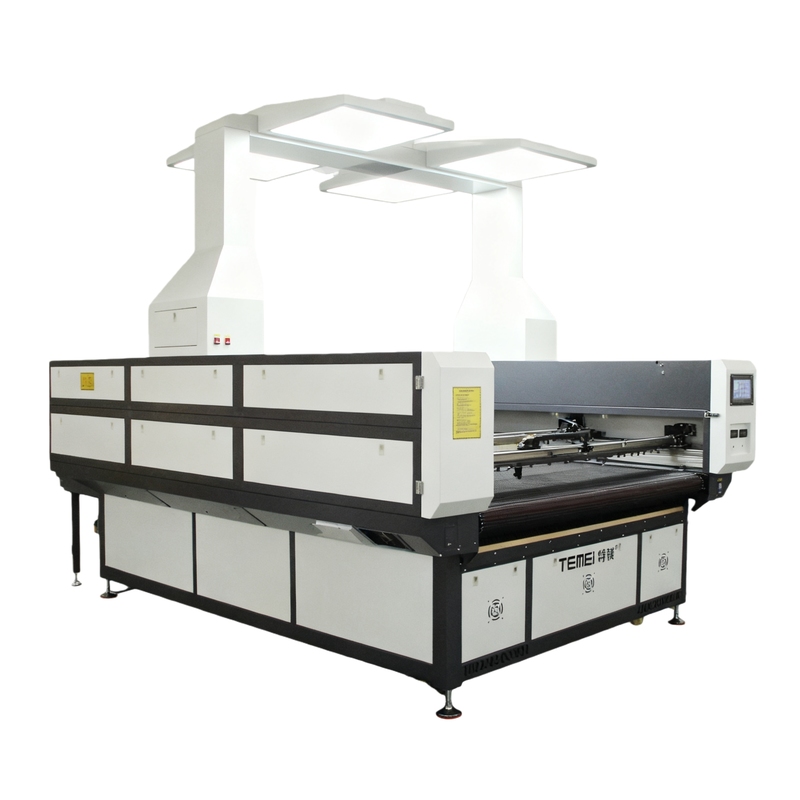

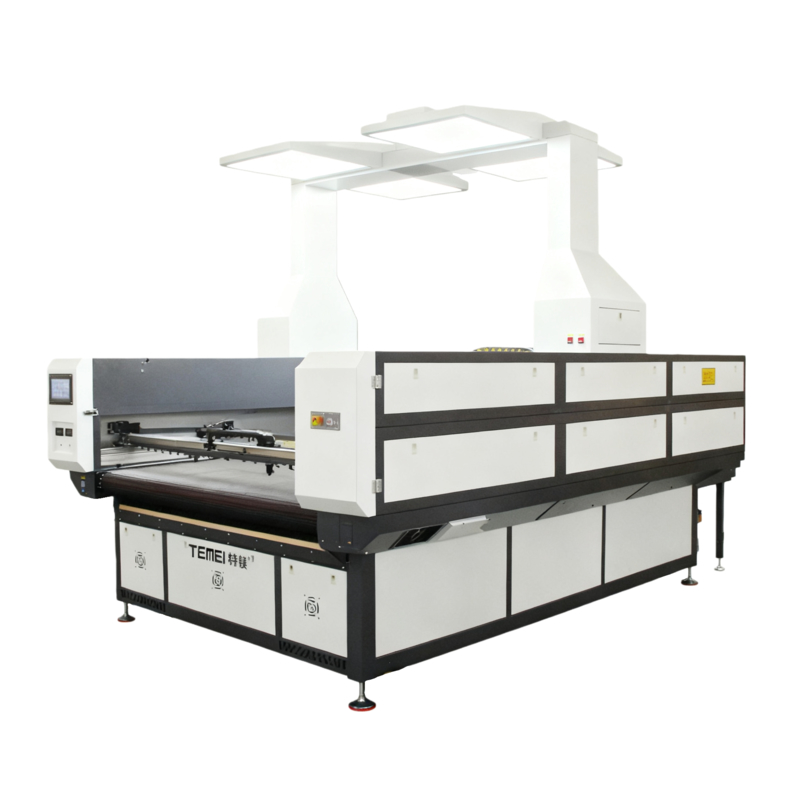

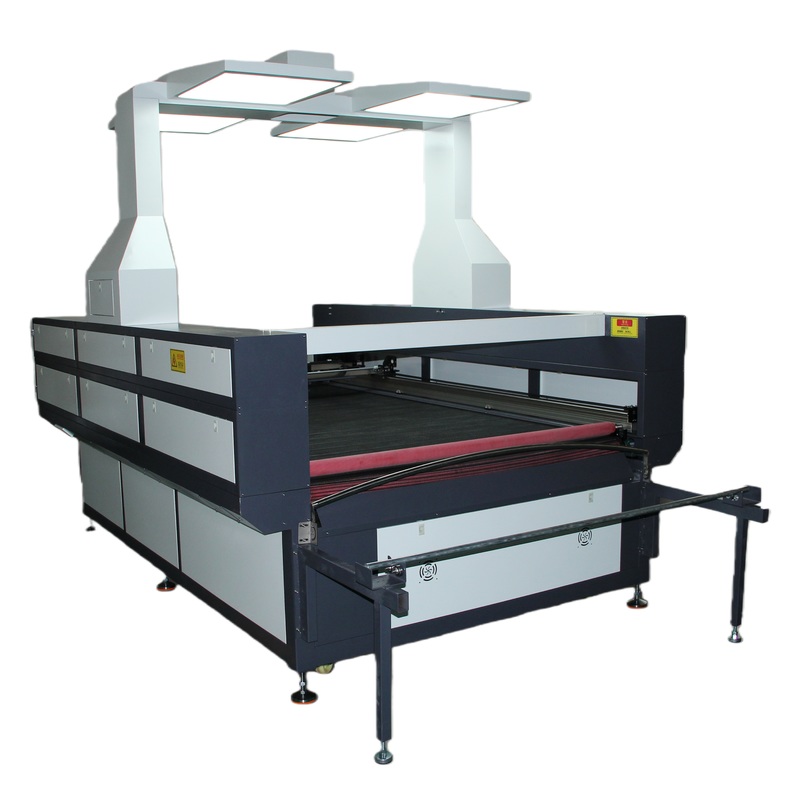

Visual Camera CO2 Laser Cutting Machine 130W 150 Watt Co2 Laser Cutter For Fabric

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Panoramic Visual Perimeter Inspection Fabric Leather Carbon Dioxide Laser Cutting Machine | Modle | TM-LQJ1610II |
---|---|---|---|
Laser Source | CO2 Laser Tube | Laser Power | 150W |
Light Path | Flight Optical Path System | Cooling Method | Industrial Water Cooling Machine |
Drive System | Lei Sai Hybrid Servo/Lei Sai Stepping Motor Drive | Transmission System | Belt Gear |
Control System | Ruida | CCD Edge Patrol Cutting Function | YES |
Positioning Accuracy | 0.02mm | Max.Speed | 0-600mm/s |
Working Table | Conveyor Belt Type Countertop | Power Supply | 220V,50/60Hz |
File Format | DXF, PLT, AI, | Dimensions | 2570*2250*2500MM |
Application Materials | Mainly Suitable For Printing Cloth, Paper, Film And Other Coils, Cutting, Large-scale Truncation And So On. | ||
Highlight | Visual Camera CO2 Laser Cutting Machine,CO2 Laser Cutting Machine 130W,Fabric 150 Watt Co2 Laser Cutter |
1. An optional automatic feeding table can be equipped to achieve fully automated cutting operations, reducing the operator's time and increasing production capacity.
2. This solution is highly effective for large and medium-sized enterprises engaged in mass production, and also meets the manufacturing needs of small enterprises and individual processors.
3. During operation, the running speed and laser power can be adjusted in real time, providing great convenience for customers.
4. With the function of automatically compensating for cutting power, the overall cutting performance has been significantly improved.
5. This equipment integrates a high-performance laser engraving and cutting system.
Configuration parameters
Name |
Panoramic full-view perimeter laser cutting machine |
Modle |
TM-LQJ1610II |
Working Size |
1600*1000mm |
Laser Source |
Sealed water-cooled CO2 laser tube |
Laser Power |
150W |
Light Path |
Flight optical path system |
Cooling Method |
Industrial water cooling machine |
Drive System |
Lei Sai Hybrid servo/Lei Sai stepping motor drive |
Transmission System |
Belt gear |
Control System |
Ruida |
CCD edge patrol cutting function: |
YES |
Positioning Accuracy |
0.02mm |
Repet.Positioning Accuracy |
0.02mm |
Max.Speed |
0-600mm/s |
Working table |
Conveyor belt type countertop |
Auxiliary Equipment |
Air pump |
Power supply |
220V,50/60Hz |
File format |
DXF, PLT, AI, |
Dimensions |
2570*2250*2500MM |
Net Weight |
650kgs |
Application Materials |
Mainly suitable for printing cloth, paper, film and other coils, cutting, large-scale truncation and so on. |
Exhibition and factory visit
Packaging and Transportation Plans
(1) Product Packaging Approach
To keep the equipment safe while being transported, we’ve developed a careful packaging scheme. Each piece of equipment will be placed properly inside wooden packing cases, and a foam cushioning layer will be added inside these cases. This setup can effectively stop the equipment from getting damaged due to collisions during transit.
(2) Logistics Delivery Service
Once your order is handled, we will send out the equipment within 3 to 5 working days. After the equipment is shipped, we will give you a logistics tracking number. With this number, you can check how your package is progressing during transportation in real time.
Support and Services
We provide all-round technical support and after-sales services for our products. This ensures that the product works at its best performance and meets customers’ needs. We have a team of professional experts who can help with installing the machine, maintaining it, fixing problems that occur, and training users to operate it. Besides, we will offer regular software updates and technical documents. These help improve the user experience and solve any possible issues that might come up.
Frequently Asked Questions (FAQs)
Q1: How can I get the most suitable machine and the best price?
A1: You can tell us about the materials you need to process and give detailed descriptions of your work—you can use pictures or videos to do this. This way, we can clearly know exactly what you require. Based on our experience, we will then recommend the most suitable machine model for you.
Q2: What kind of warranty service does the machine have?
A2: We provide a one-year warranty for the machine. If the machine breaks down within the warranty period, we will replace its parts for free. If you run into any problems, please let us know anytime, and we will offer you the best solution.
Q3: If I’m buying this machine for the first time, how should I use it?
A3: For the machine you buy, we will provide an operation manual in English (or another language you need) and video tutorials. The software is easy to learn, and there are also instructional videos for it. In addition, we offer free online training services. If you still need our help after that, you can contact us through voice calls or video calls—both ways are available.
Q4: How does the company ensure the quality of its products?
A4: Quality is the most important thing for us. During the whole production process, we carry out regular inspections and strict quality control. Before the machine leaves the factory, we will test the entire machine to make sure it works well. Our machines have obtained CE certification and meet European and American standards. They have also been exported to more than 100 countries.
