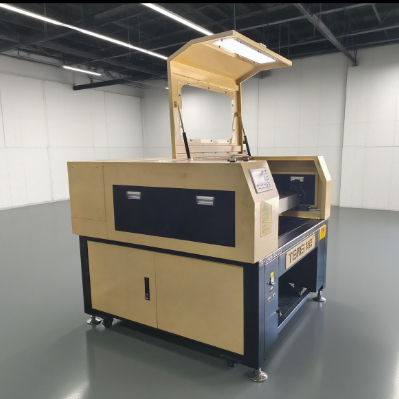

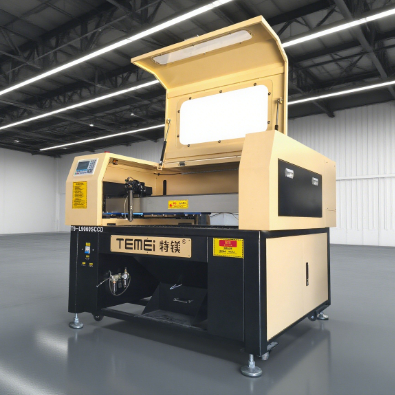

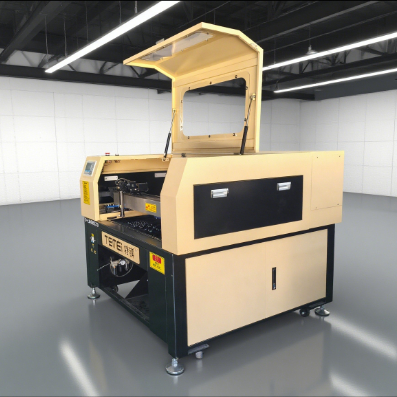

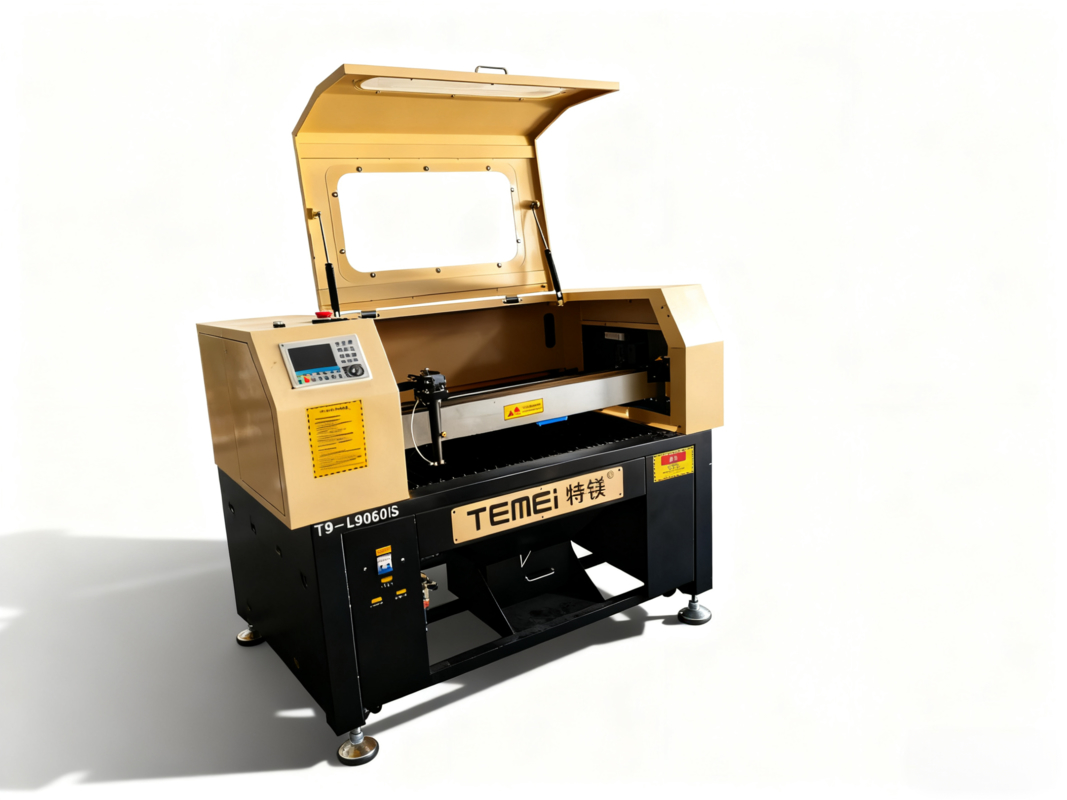

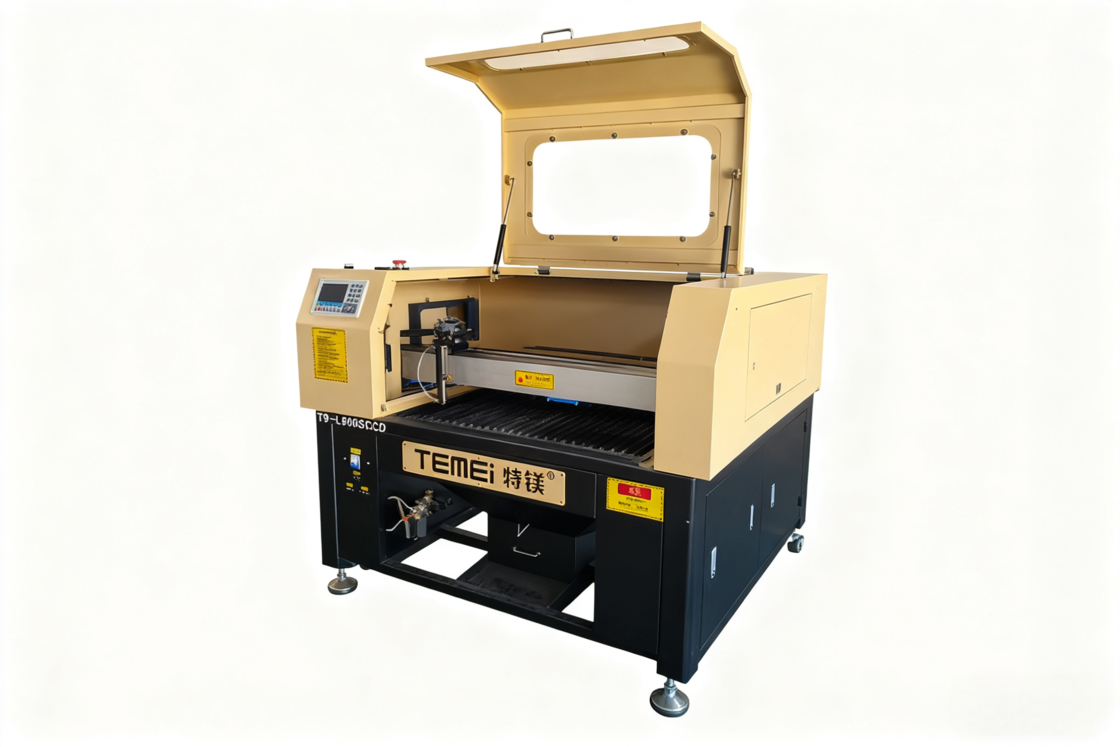

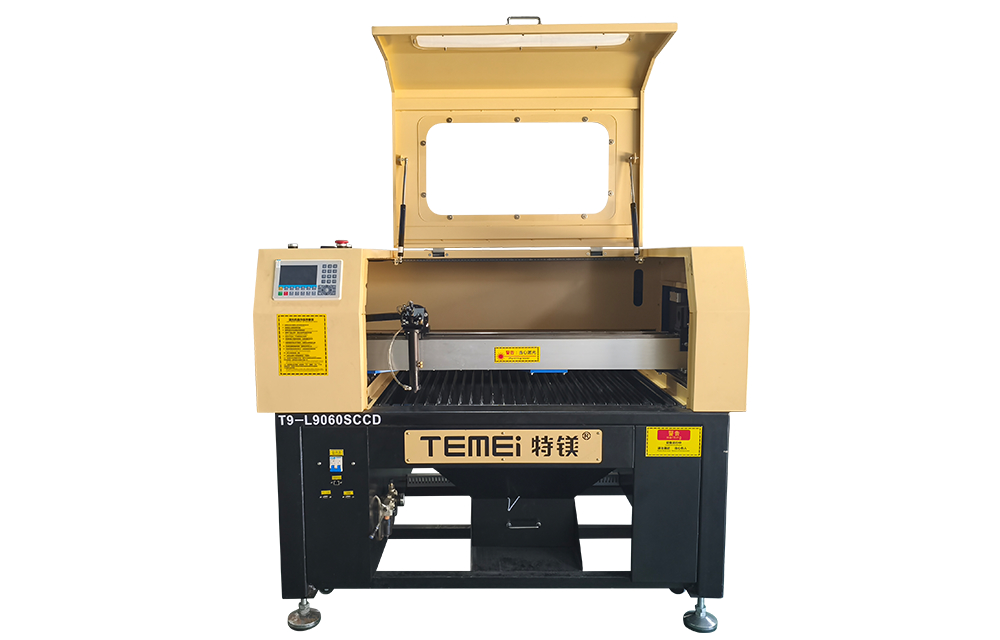

600mm*900mm CO2 Acrylic Laser Cutting Machine Non Metallic Co2 Laser Wood Cutter

  • 600mm*900mm CO2 Acrylic Laser Cutting Machine Non Metallic Co2 Laser Wood Cutter
  • 600mm*900mm CO2 Acrylic Laser Cutting Machine Non Metallic Co2 Laser Wood Cutter
  • 600mm*900mm CO2 Acrylic Laser Cutting Machine Non Metallic Co2 Laser Wood Cutter
Place of Origin china shenzhen
Brand Name Temei
Model Number T9-L9060S
Minimum Order Quantity 1
Price 5399~6799usd
Packaging Details Wooden box
Delivery Time 3~7day
Payment Terms T/T
Supply Ability 1,000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model T9-L9060S Working Size 600mm*900mm
Laser Source CO2 Laser Tube Laser Power 80W/100W/130W/150W/180W/200W
Drive System Mitsubishi Servo Driver & Motor From Japan Positioning Accuracy 0.02mm
Repet.Positioning Accuracy 0.01mm Working Table Blade Platform / Cellular Platform (optional)
Power Supply 220V,50/60Hz File Format DXF, PLT, AI, DST, DSB,BMP,GIF,PEG,PCX,DWG
Dimensions 1430*1300*1200mm Net Weight 350KG
Application Materials Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc. Control System Ruida RDC6442 / RDV6445
Highlight

600mm*900mm Acrylic Laser Cutting Machine

,

Non Metallic Co2 Laser Wood Cutter

,

600mm*900mm Co2 Laser Wood Cutter
Leave a Message
Product Description

9060 CO2 Acrylic Laser Cutting Machine Non-metallic wood board laser cutting

Product Introduction

This 900mm×600mm CO₂ laser engraving and cutting unit is engineered for both high precision and extensive adaptability. It can handle a varied range of non-metallic materials, including timber, acrylic, glass, rubber, and many more. Fitted with an auto-focusing laser head, a sealed CO₂ glass tube, and a cutting-edge RUIDA control system, it ensures efficient cutting speeds of up to 1200mm/s alongside superior engraving accuracy. The machine’s sturdy structure incorporates TAIWAN square rails, Leadshine drive parts, and imported mirrors and lenses, offering dependable performance for sectors like advertising, manufacturing, and garment production.

Applicable Materials:

Rubber, plastic, fabric, leather, woolen fabrics, crystal, organic glass, ceramic tiles, jade, bamboo, wood, and so on.

Applicable Industries:

Textile, embroidery, fabric processing, toy production, furniture manufacturing, glove making, bag crafting, leather processing, advertising, decoration, electronic products, rubber processing, acrylic product manufacturing, medium-density fiberboard processing, and precision handling of non-metallic sheets.

600mm*900mm CO2 Acrylic Laser Cutting Machine Non Metallic Co2 Laser Wood Cutter 0600mm*900mm CO2 Acrylic Laser Cutting Machine Non Metallic Co2 Laser Wood Cutter 1600mm*900mm CO2 Acrylic Laser Cutting Machine Non Metallic Co2 Laser Wood Cutter 2

Why Choose Us

1. Advantages of Ball Screw Transmission
With a unique spiral meshing technical structure, this transmission method controls cutting deviations to less than 0.2mm. When compared with traditional transmission solutions, this marks a significant improvement in precision performance. Moreover, its rigid connection design effectively resolves the elastic deformation problem—a inherent shortcoming of flexible transmission setups—making it highly suitable for precision manufacturing fields that demand strict compliance with contour accuracy requirements.


2. Long-term Stability
By combining Japanese Mitsubishi servo drives with TPI lead screws and PMI guide rails, the machine achieves a dependable component configuration. This setup ensures that the equipment operates continuously with consistent and stable performance over long timeframes.


3. Durable and Sturdy
The device adopts a structural design where 0.5mm square steel tubes are fully welded; after welding, a tempering procedure is carried out to eliminate internal stress. This robust structural processing enables the equipment to work normally without major faults for a service life ranging from 8 to 10 years.


4. Easy Maintenance
There is no need for regular maintenance work on this system. Additionally, users do not have to worry about the decline in precision that would otherwise be caused by the wear and tear of belt parts.


Equipment parameters

 Name

CO2 laser cutting machine

 Model

T9-L9060S

Working Size

600mm*900mm

Laser Source

CO2 Laser Tube

Laser Power

80W/100W/130W/150W/180W/200W

Light Path

Flight optical path system

Cooling Method

S&A CW-5200 Chiller

Drive System

Mitsubishi Servo Driver & Motor from Japan

Transmission System

TBI Ball Screw & PMI Linear Guide from Taiwan

Control System

Ruida RDC6442 / RDV6445

CCD edge patrol cutting function

Optional

Positioning Accuracy

0.02mm

Repet.Positioning Accuracy

0.01mm

Max.Speed

40m/min

 Working table

Blade platform / Cellular platform (optional)

Red-light Positioning

Yes

 Auxiliary Equipment

Air pump, centrifugal fans

Power supply

220V,50/60Hz

File format

DXF, PLT, AI, DST, DSB,BMP,GIF,PEG,PCX,DWG

Dimensions

1430*1300*1200mm

Net Weight

350KG

Application Materials

Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc.


Exhibition and Visitation

600mm*900mm CO2 Acrylic Laser Cutting Machine Non Metallic Co2 Laser Wood Cutter 3

Logistics and Packaging

600mm*900mm CO2 Acrylic Laser Cutting Machine Non Metallic Co2 Laser Wood Cutter 4

Equipment Support and Service Guarantee

To ensure the smooth operation and maximum performance of the 9060 CO2 Laser Cutting Machine, we provide comprehensive product technical support and service guarantees:


  • Certified technicians will conduct on-site equipment installation and operation training, which not only ensures standard installation of the equipment but also helps operators master the correct usage methods.
  • Multi-channel real-time technical support is available via phone, email, or online customer service to promptly answer questions and resolve unexpected issues that may arise during equipment operation.
  • Scheduled maintenance services are offered to maintain the equipment in optimal operating condition and avoid downtime losses caused by mechanical failures.
  • Users are granted access to software updates and technical documentation to ensure the equipment's functions are synchronized with the latest upgrades and its performance is continuously optimized.
  • Optional extended warranty and value-added service packages are provided to add protection for users beyond the standard warranty period and eliminate usage concerns.

Shipping-related Instructions

After the order is confirmed, the 9060 CO2 Laser Cutting Machine will be shipped within 3-5 business days. We cooperate with qualified and reliable logistics companies to deliver the equipment to the address specified by the user, and provide a logistics tracking number to facilitate users to check the transportation progress in real time.

FAQ

Q: What materials can the 9060 CO2 Laser Cutting Machine cut?
A: The machine can cut a variety of materials, including common ones such as acrylic, wood, leather, fabric, and paper.


Q: What is the maximum cutting thickness of the 9060 CO2 Laser Cutting Machine?
A: The maximum cutting thickness of the 9060 CO2 Laser Cutting Machine varies by material, and it can typically cut materials with a thickness of up to 20mm.


Q: Does the 9060 CO2 Laser Cutting Machine come with design and cutting control software?
A: Yes, the machine is equipped with dedicated software, which can be used to design processing plans and accurately control cutting parameters.


Q: What is the maximum cutting speed of the 9060 CO2 Laser Cutting Machine?
A: The maximum cutting speed of the 9060 CO2 Laser Cutting Machine is affected by the material type and design complexity, with a maximum speed of up to 500mm/s.


Q: How often does the laser tube of the 9060 CO2 Laser Cutting Machine need to be replaced?
A: The service life of the laser tube of the 9060 CO2 Laser Cutting Machine depends on the frequency of use, and it usually needs to be replaced every 2,000-3,000 hours of operation.
