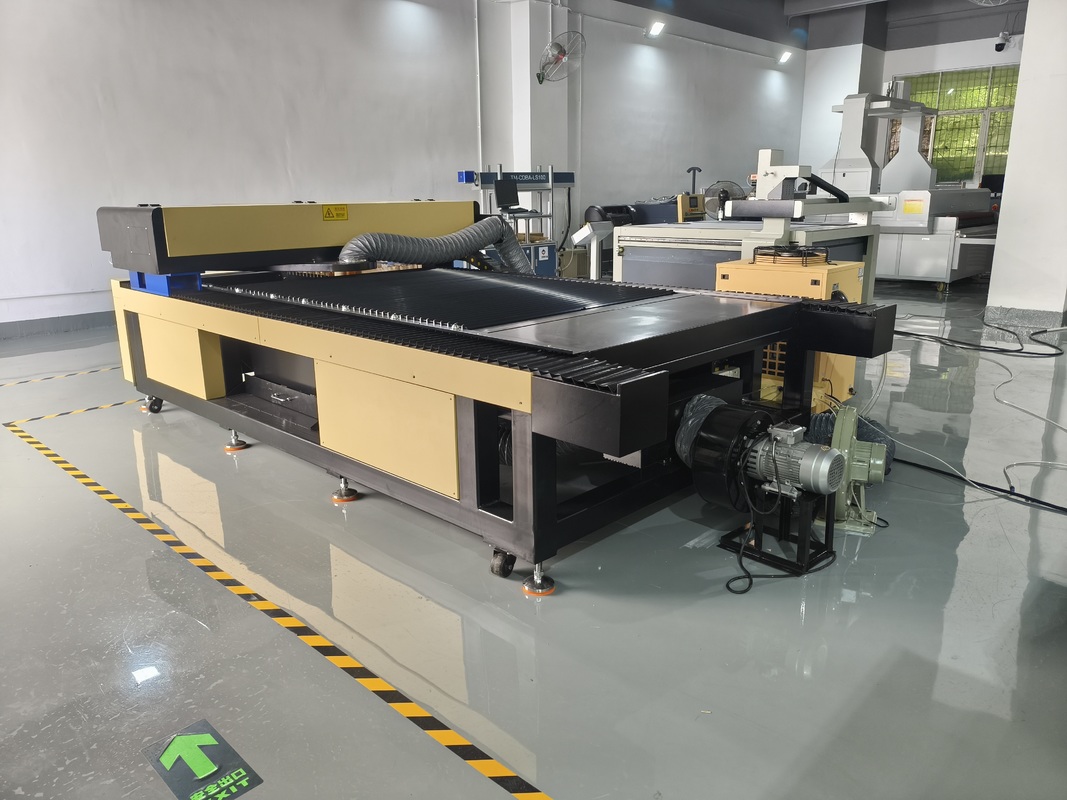

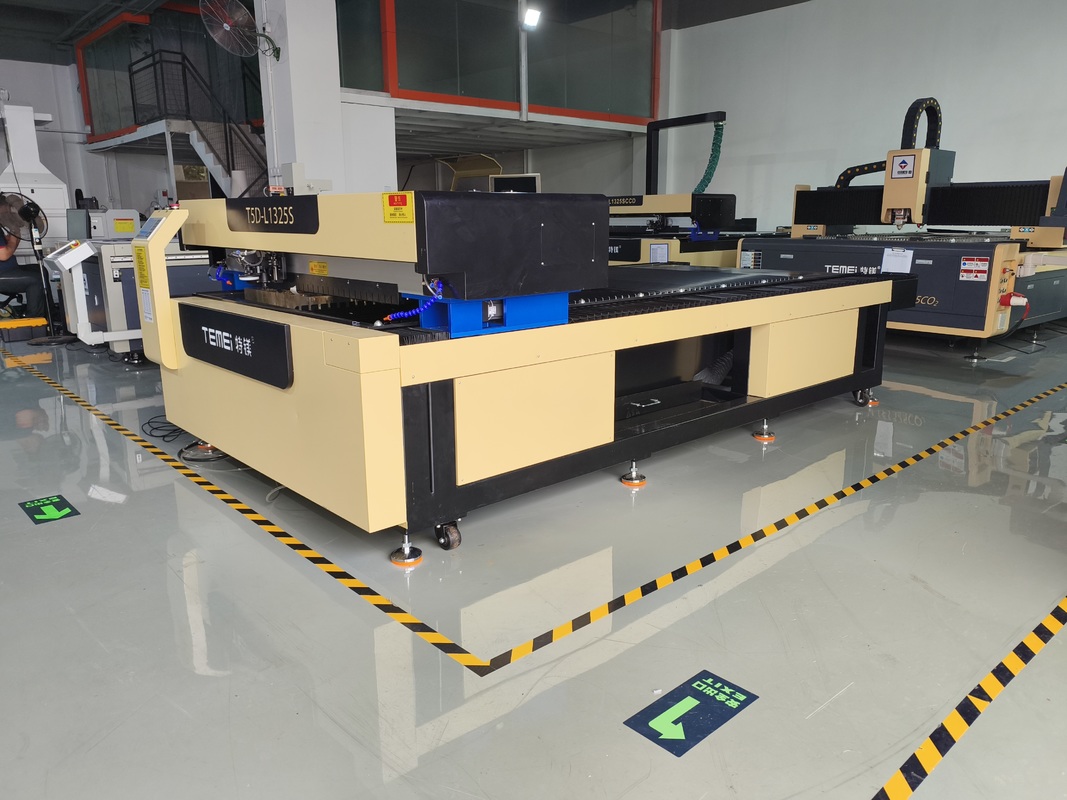

T5D-L1325S Large Format Acrylic CO2 Laser Cutting Machine For Sponge / Plastic
| Place of Origin | china shenzhen |
|---|---|
| Brand Name | Temei |
| Model Number | T5D-L1325S |
| Minimum Order Quantity | 1 |
| Price | 11299 ~16500usd |
| Packaging Details | wooden box |
| Delivery Time | 3~7day |
| Payment Terms | T/T |
| Supply Ability | 1,000 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Size | 1300x2500mm | Laser Source | CO2 Laser Tube |
|---|---|---|---|
| Laser Power | 150W/180W/300W/450W/600W | Positioning Accuracy | 0.02mm |
| Repet.Positioning Accuracy | 0.01mm | File Format | DXF, PLT, AI, DST, DSB |
| Power Supply | 220V,50/60Hz | Application Materials | Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc. |
| Highlight | Large Format CO2 Laser Cutting Machine,Large Format Acrylic Laser Cutting Machine,Sponge co2 laser cutting equipment |
||
Product Description

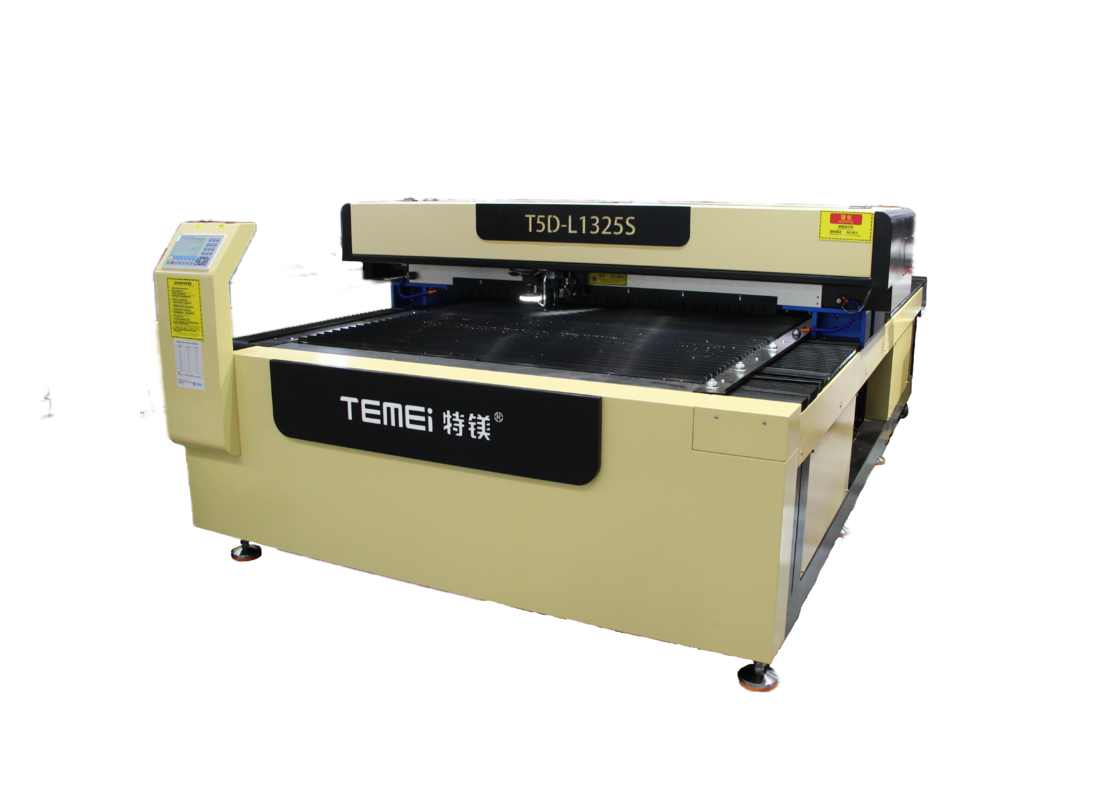

T5D-L1325S Large-format Acrylic CO2 Laser Cutting Machine
Equipment Advantages
Technical Characteristics of Precision Transmission System
1. Transmission System
The transmission system features a ball screw transmission mechanism with positioning accuracy controlled within 0.2mm. This design improves accuracy by 40% compared to traditional flexible transmission methods, making it ideal for high-precision applications. The rigid contact characteristic eliminates elastic deformation during transmission, ensuring precise contour accuracy for complex geometric shapes.
2. High-performance Dynamic Performance
With acceleration exceeding the 1.5G technical threshold, this system achieves a 50% speed increase over conventional transmission solutions. For thin plate processing (0.5mm to 3mm), production cycles can be reduced by more than 25%. The unique anti-slip design maintains trajectory accuracy during high-speed movement while effectively controlling heat-affected zone quality.
3. Ultra-long-lasting Operational Performance
Innovative pre-pressure lubrication technology minimizes mechanical wear, extending the theoretical operational lifespan beyond 100,000 hours. This solution reduces maintenance frequency by 90% compared to traditional maintenance-based approaches, perfectly meeting the continuous production demands of modern smart factories.
Configuration and Parameters
|
Name |
CO2 Laser Cutter with Double Screw |
|
Model |
T5D-L1325S |
|
Working Size |
1300x2500mm |
|
Laser Source |
CO2 Laser Tube |
|
Laser Power |
300W/450W/600W |
|
Light Path |
Adop constant light path design |
|
Focusing Lens |
25*63.5mm+25*127mm |
|
Cooling System |
S&A CW6000/6200 Chiller |
|
Drive System |
Mitsubishi Servo Driver & Motor from Japan |
|
Transmission System |
TBI Ball Screw & PMI Linear Guide from Taiwan |
|
Control System |
Ruida RDV6445 |
|
CCD edge patrol cutting function |
Yes |
|
Positioning Accuracy |
0.02mm |
|
Repet.Positioning Accuracy |
0.01mm |
|
Max.Speed |
40m/min |
|
Max.Cutting Thickness |
30mm (acrylic,plywood,rubber,MDF) |
|
Working table |
Blade platform |
|
Red-dot Positioning |
Yes |
|
Auxiliary Equipment |
Air pump,Centrifugal fans,Upward somoking devices |
|
Power supply |
220V,50/60Hz |
|
File format |
DXF, PLT, AI, DST, DSB |
|
Dimensions |
3430x2000x1250mm |
|
Net Weight |
1200kgs |
|
Application Materials |
Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc. |
Safe Delivery Guarantee
FAQ:
Q: What materials can the 1325 CO2 Laser Cutting Machine cut?
A: The 1325 CO2 Laser Cutting Machine can cut various materials such as acrylic, wood, leather, fabric, paper, and more.
Q: What is the maximum cutting thickness of the 1325 CO2 Laser Cutting Machine?
A: The maximum cutting thickness of the 1325 CO2 Laser Cutting Machine is typically up to X mm, depending on the material being cut.
Q: Does the 1325 CO2 Laser Cutting Machine come with software?
A: Yes, the 1325 CO2 Laser Cutting Machine comes with compatible software for design and cutting operations.
Q: What is the working area of the 1325 CO2 Laser Cutting Machine?
A: The 1325 CO2 Laser Cutting Machine has a standard working area of X mm x Y mm.
Q: Is training provided for operating the 1325 CO2 Laser Cutting Machine?
A: Yes, we provide training sessions to ensure users are proficient in operating the 1325 CO2 Laser Cutting Machine safely and effectively.
