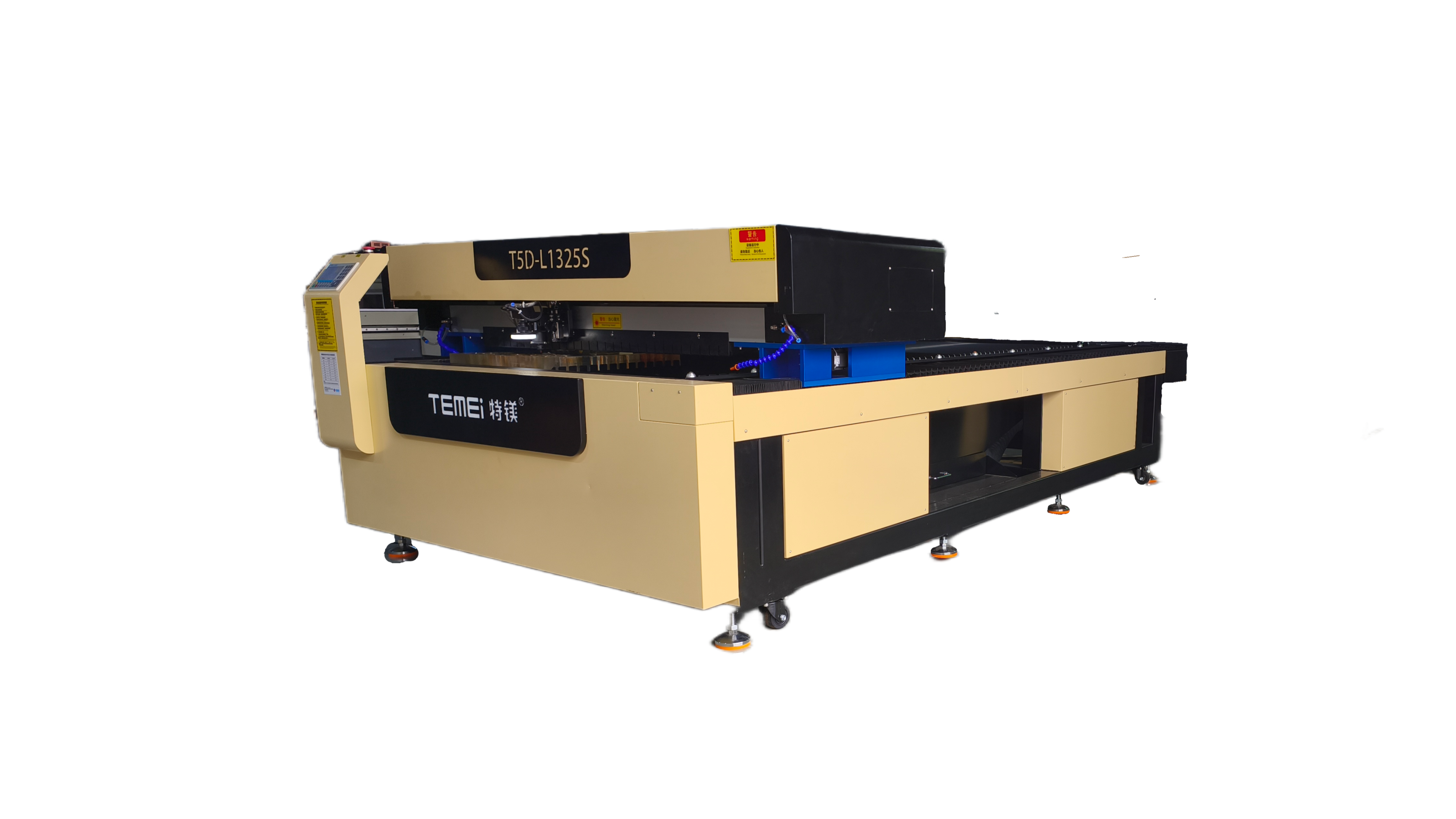

High Precision Non Metallic Carbon Dioxide Laser Cutter Machine T5D-L1325S
| Place of Origin | china shenzhen |
|---|---|
| Brand Name | Temei |
| Model Number | T5D-L1325S |
| Minimum Order Quantity | 1 |
| Price | 11299 ~16500usd |
| Packaging Details | wooden box |
| Delivery Time | 3~7day |
| Payment Terms | T/T |
| Supply Ability | 1,000 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Size | 1300x2500mm | Laser Source | CO2 Laser Tube |
|---|---|---|---|
| Laser Power | 150W/180W/300W/450W/600W | Positioning Accuracy | 0.02mm |
| Repet.Positioning Accuracy | 0.01mm | File Format | DXF, PLT, AI, DST, DSB |
| Power Supply | 220V,50/60Hz | Application Materials | Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc. |
| Highlight | Non Metallic Carbon Dioxide Laser Cutter,High Precision Carbon Dioxide Laser Cutter,High Precision co2 laser cutter machine |
||
Product Description
Equipment Advantages
Core advantages of roller screw drive
1:High precision and stability
The roller screw transmits power through precise helical gear engagement, achieving a repeat positioning accuracy of ±0.1mm, which is much higher than the ±0.3mm of belt transmission. It is particularly suitable for high-precision cutting.
Rigid contact avoids belt elastic deformation, eliminating "rebound error" during complex contour cutting, resulting in smoother edges.
High dynamic response and speed
The acceleration can reach over 1.5G (while belt type is usually ≤1G), suitable for high-speed cutting of thin plates, with efficiency increased by 20% to 30%.
There is no risk of belt slipping, and the instantaneous start and stop is more stable, reducing corner overheating or burrs.
Long service life and low maintenance
The roller screw adopts pre-pressurized lubrication design, with extremely low wear and a lifespan of over 100,000 hours; while the belt requires regular tensioning and replacement (typically 2 to 3 years).
The maintenance-free design reduces downtime costs and is suitable for 24-hour continuous production.
Heavy load capacity
It can withstand larger loads (such as thick plate cutting heads or additional sensors), while the belt is prone to stretching and deformation under long-term high load.
Configuration and Parameters
|
Name |
CO2 Laser Cutter with Double Screw |
|
Model |
T5D-L1325S |
|
Working Size |
1300x2500mm |
|
Laser Source |
CO2 Laser Tube |
|
Laser Power |
300W/450W/600W |
|
Light Path |
Adop constant light path design |
|
Focusing Lens |
25*63.5mm+25*127mm |
|
Cooling System |
S&A CW6000/6200 Chiller |
|
Drive System |
Mitsubishi Servo Driver & Motor from Japan |
|
Transmission System |
TBI Ball Screw & PMI Linear Guide from Taiwan |
|
Control System |
Ruida RDV6445 |
|
CCD edge patrol cutting function |
Yes |
|
Positioning Accuracy |
0.02mm |
|
Repet.Positioning Accuracy |
0.01mm |
|
Max.Speed |
40m/min |
|
Max.Cutting Thickness |
30mm (acrylic,plywood,rubber,MDF) |
|
Working table |
Blade platform |
|
Red-dot Positioning |
Yes |
|
Auxiliary Equipment |
Air pump,Centrifugal fans,Upward somoking devices |
|
Power supply |
220V,50/60Hz |
|
File format |
DXF, PLT, AI, DST, DSB |
|
Dimensions |
3430x2000x1250mm |
|
Net Weight |
1200kgs |
|
Application Materials |
Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc. |
Ensure the safe delivery to every customer
FAQ:
Q: What materials can the 1325 CO2 Laser Cutting Machine cut?
A: The 1325 CO2 Laser Cutting Machine can cut various materials such as acrylic, wood, leather, fabric, paper, and more.
Q: What is the maximum cutting thickness of the 1325 CO2 Laser Cutting Machine?
A: The maximum cutting thickness of the 1325 CO2 Laser Cutting Machine is typically up to X mm, depending on the material being cut.
Q: Does the 1325 CO2 Laser Cutting Machine come with software?
A: Yes, the 1325 CO2 Laser Cutting Machine comes with compatible software for design and cutting operations.
Q: What is the working area of the 1325 CO2 Laser Cutting Machine?
A: The 1325 CO2 Laser Cutting Machine has a standard working area of X mm x Y mm.
Q: Is training provided for operating the 1325 CO2 Laser Cutting Machine?
A: Yes, we provide training sessions to ensure users are proficient in operating the 1325 CO2 Laser Cutting Machine safely and effectively.
