Place of Origin:
china shenzhen
Brand Name:
Temei
Model Number:
T5D-L1325S

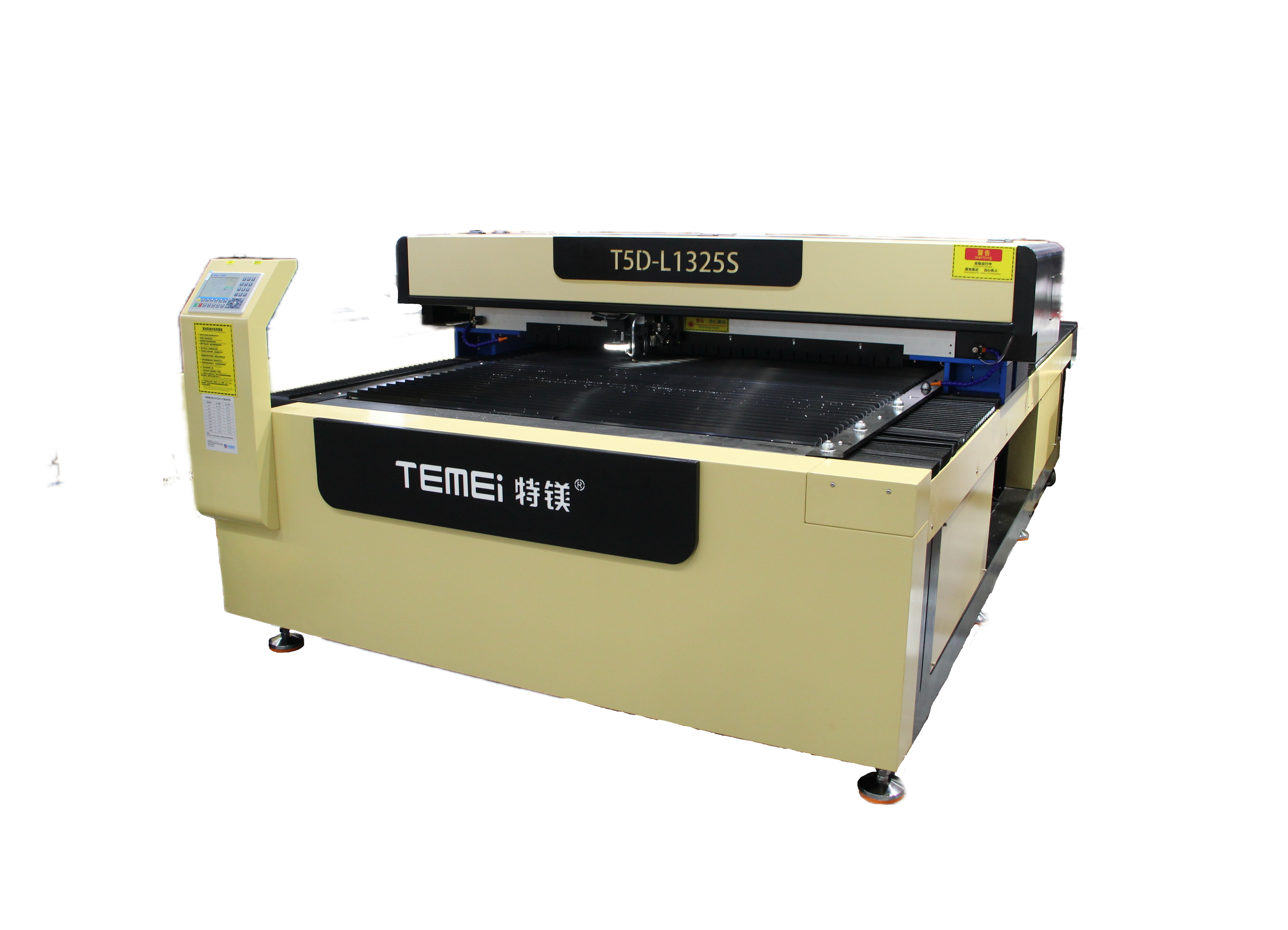

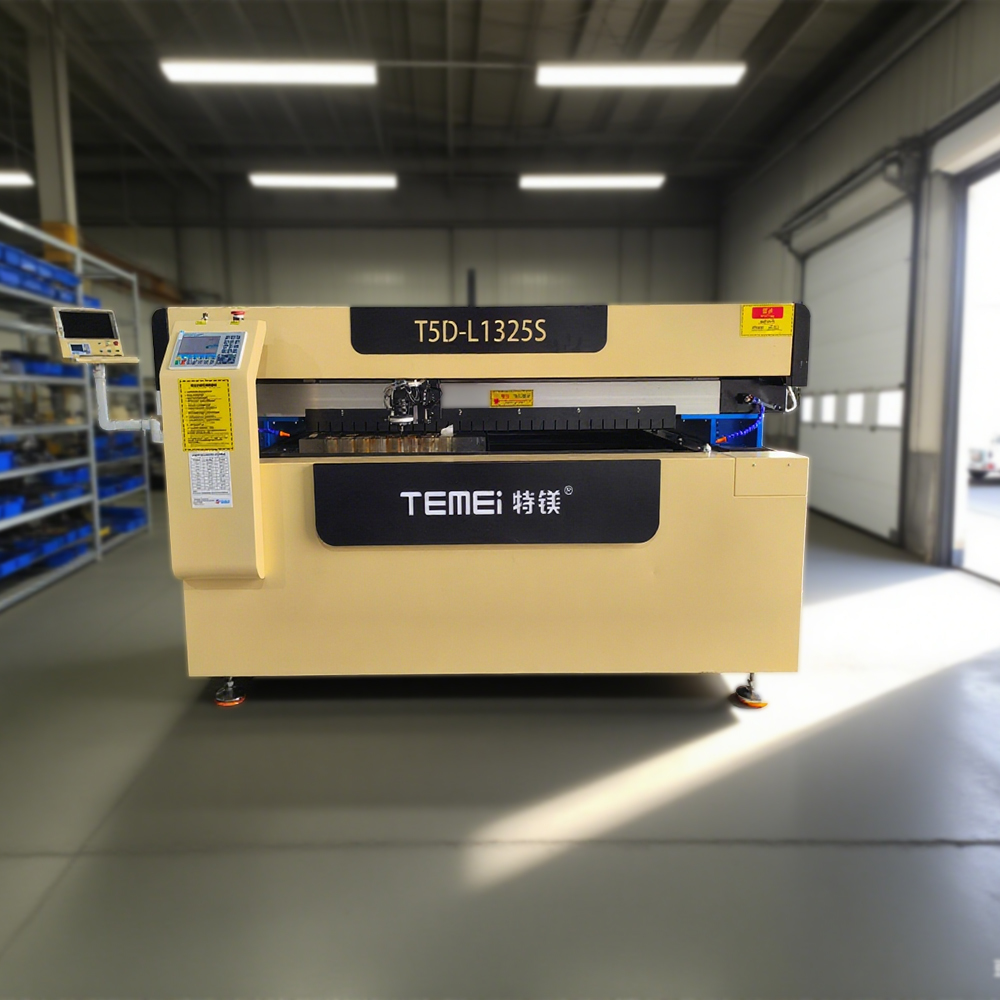

T5D-L1325S Ball screw non-metallic laser cutting machine
Equipment Advantages
I. Core Advantages of Roller Screw Drive
1. High Precision and Stability
- Utilizing precise helical gear meshing transmission, the repeat positioning accuracy can reach ±0.2mm (better than the ±0.3mm of belt transmission), especially suitable for cutting tasks with strict precision requirements.
- The rigid transmission structure effectively avoids the elastic deformation of the belt, ensuring no rebound error during complex contour cutting, and the edge of the workpiece is smoother.
2. High-speed response and efficiency improvement
- Acceleration of 1.5G or higher , significantly increasing the cutting speed of thin plates, and improving production efficiency by 20% to 30%,(for belt type, it is usually ≤ 1G)
- starting and stopping are more rapid and stable, reducing corner overheating or burrs problems.
3. Ultra-long lifespan and low maintenance requirements
- The pre-lubrication design results in extremely low wear, with a lifespan exceeding 100,000 hours. In contrast, belts need to be replaced every 2 to 3 years and tensioned regularly.
4. Outstanding load-bearing capacity
- It can stably support heavy cutting heads or additional sensors. In contrast, belts are prone to stretching and deformation under long-term high-load conditions, which can affect accuracy.
Configuration and Parameters
|
Name |
CO2 Laser Cutter with Double Screw |
|
Model |
T5D-L1325S |
|
Working Size |
1300x2500mm |
|
Laser Source |
CO2 Laser Tube |
|
Laser Power |
300W/450W/600W |
|
Light Path |
Adop constant light path design |
|
Focusing Lens |
25*63.5mm+25*127mm |
|
Cooling System |
S&A CW6000/6200 Chiller |
|
Drive System |
Mitsubishi Servo Driver & Motor from Japan |
|
Transmission System |
TBI Ball Screw & PMI Linear Guide from Taiwan |
|
Control System |
Ruida RDV6445 |
|
CCD edge patrol cutting function |
Yes |
|
Positioning Accuracy |
0.02mm |
|
Repet.Positioning Accuracy |
0.01mm |
|
Max.Speed |
40m/min |
|
Max.Cutting Thickness |
30mm (acrylic,plywood,rubber,MDF) |
|
Working table |
Blade platform |
|
Red-dot Positioning |
Yes |
|
Auxiliary Equipment |
Air pump,Centrifugal fans,Upward somoking devices |
|
Power supply |
220V,50/60Hz |
|
File format |
DXF, PLT, AI, DST, DSB |
|
Dimensions |
3430x2000x1250mm |
|
Net Weight |
1200kgs |
|
Application Materials |
Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc. |
Logistics services:
Packing and Shipping:
Product Packaging and Shipping for the 1325 Co2 Laser Cutting Machine:
The 1325 Co2 Laser Cutting Machine is carefully packaged to ensure its safe delivery to our customers. The machine is securely placed in a sturdy wooden crate with foam padding to prevent any damage during transit.
For shipping, we partner with reliable carriers to deliver the machine to your doorstep in a timely manner. The machine will be fully insured during transit to provide peace of mind to our customers.
Q: What materials can the 1325 CO2 Laser Cutting Machine cut?
A: The 1325 CO2 Laser Cutting Machine can cut various materials such as acrylic, wood, leather, fabric, paper, and more.
Q: What is the maximum cutting thickness of the 1325 CO2 Laser Cutting Machine?
A: The maximum cutting thickness of the 1325 CO2 Laser Cutting Machine is typically up to X mm, depending on the material being cut.
Q: Does the 1325 CO2 Laser Cutting Machine come with software?
A: Yes, the 1325 CO2 Laser Cutting Machine comes with compatible software for design and cutting operations.
Q: What is the working area of the 1325 CO2 Laser Cutting Machine?
A: The 1325 CO2 Laser Cutting Machine has a standard working area of X mm x Y mm.
Q: Is training provided for operating the 1325 CO2 Laser Cutting Machine?
A: Yes, we provide training sessions to ensure users are proficient in operating the 1325 CO2 Laser Cutting Machine safely and effectively.
