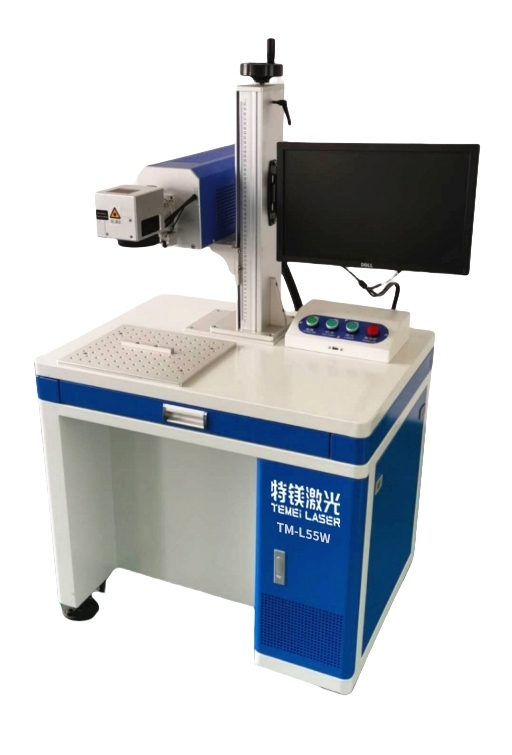

55w Desktop Co2 Laser Marking Machine Co2 Laser Marking System Air Cooling 110mm*110mm
| Place of Origin | china shenzhen |
|---|---|
| Brand Name | Temei |
| Model Number | TM-L55W |
| Minimum Order Quantity | 1 |
| Price | 2166usd Starting from |
| Packaging Details | wooden box |
| Delivery Time | 3~7day |
| Payment Terms | T/T |
| Supply Ability | 1,000 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Co2 Laser Marking System | Working Size | 110mm*110mm |
|---|---|---|---|
| Laser Power | Optional | Net Weight | 80kg |
| Application | Paper, Leather, Woodware, Plastic, Plexiglass, Fabric, Acrylic, Bamboo, Rubber, Crystal, Jade, Ceramics,artificial Stone, Etc. | Laser Wavelength | 1064±5nm |
| Spot Diameter | 0.015mm | Galvanometer | High-speed Scanning Galvanometer (OUYA) |
| Field Lens | High-definition Quartz Field Lens（carmanhaas） | Cooling Mode | Air Cooling |
| Control Software | EZCAD | Lifting Shaft | Hand-cranked Lifting System |
| Working Table | High-precision Aluminum Plate | Repe.Positioning Accuracy | 0.002mm |
| Minimum Line Width | 0.01mm | Minimum Character | 0.15mm |
| Marking Speed | ≤7000mm/s | Marking Depth | ≤0.5 Mm (depending On Material) |
| Power Supply | 220V,50/60Hz | Supported Graphic Formats | DXF，AI，BMP，PLT |
| Dimensions | 700x800x1400mm | ||
| Highlight | 55w Desktop Co2 Laser Marking Machine,Co2 Laser Marking System air cooling,110mm*110mm co2 laser marker |
||
Product Description
Product features
1:Use the original imported isolator to protect the laser window, enhancing stability and the lifespan of the laser.
2:No maintenance is required, with a long service life, suitable for working in harsh environments.
3:Adopt high-end digital lenses, with fast processing speed, which is 2-3 times faster than ordinary marking machines.
4:The electro-optical conversion efficiency is high, with the entire machine consuming less than 2000W, which is 1/10 of the lamp-pumped solid-state laser marking machine, significantly reducing energy consumption costs and enabling 24-hour continuous operation.
5:The beam quality is much better than that of traditional solid-state laser marking machines, outputting a fundamental mode (TEM00), with a focused spot diameter of less than 20um. The divergence angle is 1/4 of that of semiconductor-pumped laser diodes. It is particularly suitable for fine and precise marking.
6:Optional features include a rotating worktable (for circular products), a two-dimensional worktable, a red light focusing system, and a production line. These options make the equipment more user-friendly and enhance work efficiency.
Configuration and Parameters
|
Name |
Desktop Co2 Laser Marking Machine |
|
Model |
TM-L55W |
|
Working Size |
110mmx110mm |
|
Laser Source |
Co2 laser tube (Beijin/Davi) |
|
Laser Power |
55W |
|
Laser wavelength |
1064±5nm |
|
Spot Diameter |
0.015mm |
|
Galvanometer |
High-speed scanning galvanometer (OUYA) |
|
Field Lens |
High-definition quartz field lens(carmanhaas) |
|
Cooling Mode |
Air cooling |
|
Monitor and Host computer |
Industrial control computer |
|
Control Software |
EZCAD |
|
Lifting Shaft |
Hand-cranked lifting system |
|
Working Table |
High-precision aluminum plate |
|
Repe.Positioning Accuracy |
0.002mm |
|
Minimum Line Width |
0.01mm |
|
Minimum Character |
0.15mm |
|
Marking Speed |
≤7000mm/s |
|
Marking Depth |
≤0.5 mm (depending on material) |
|
Power supply |
220V,50/60Hz |
|
Supported Graphic Formats |
DXF,AI,BMP,PLT |
|
Dimensions |
700x800x1400mm |
|
Net Weight |
80kgs |
|
Application Materials |
Paper, leather, woodware, plastic, plexiglass, fabric, acrylic, bamboo, rubber, crystal, jade, ceramics,artificial stone, etc. |
Product Paramenters
FAQ
1. What materials can this laser marking machine mark on?
It can mark on a wide range of materials, including metals, plastics, ceramics, and more.
2. What's the marking precision of this machine?
The marking precision is quite high, capable of achieving fine and clear marking effects.
3. Is the machine easy to operate?
Yes, with the processing display and power & laser control console, it's user-friendly for operation.
4. Does the machine have good mobility?
Equipped with movable casters, the machine can be moved conveniently as needed.
5. What kind of after-sales service do you provide?
We offer comprehensive after-sales service, including technical support and maintenance guidance.
