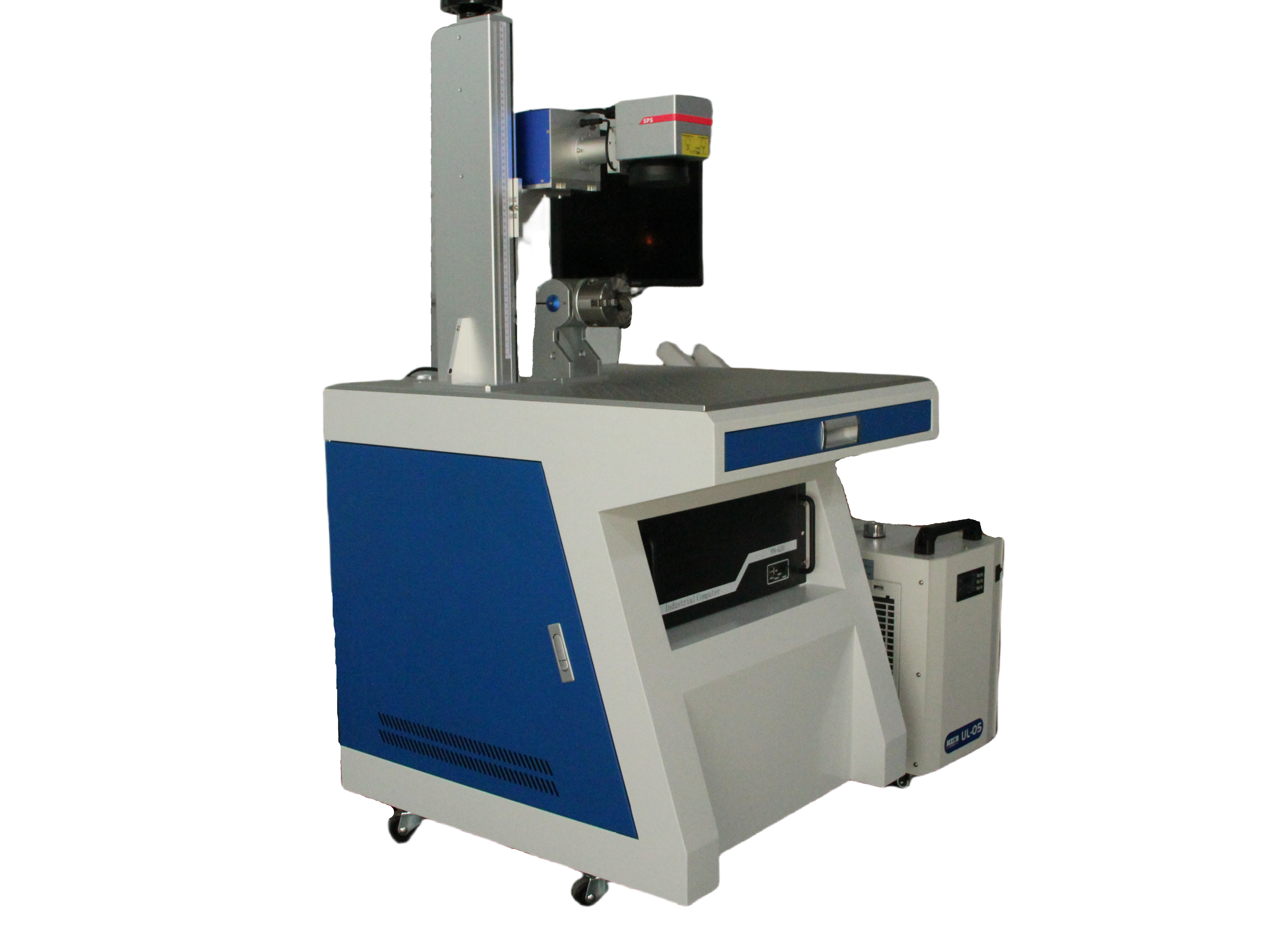

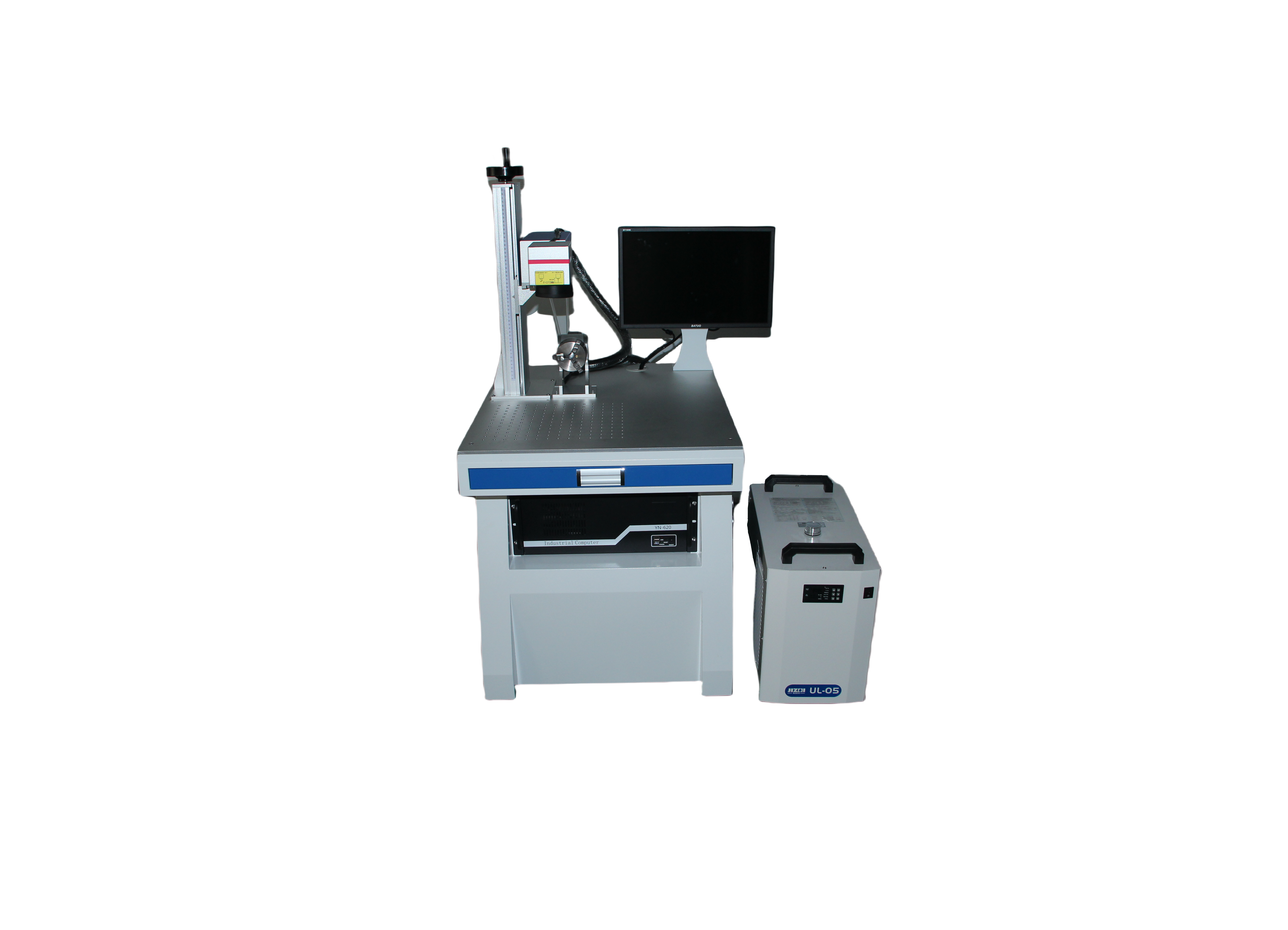

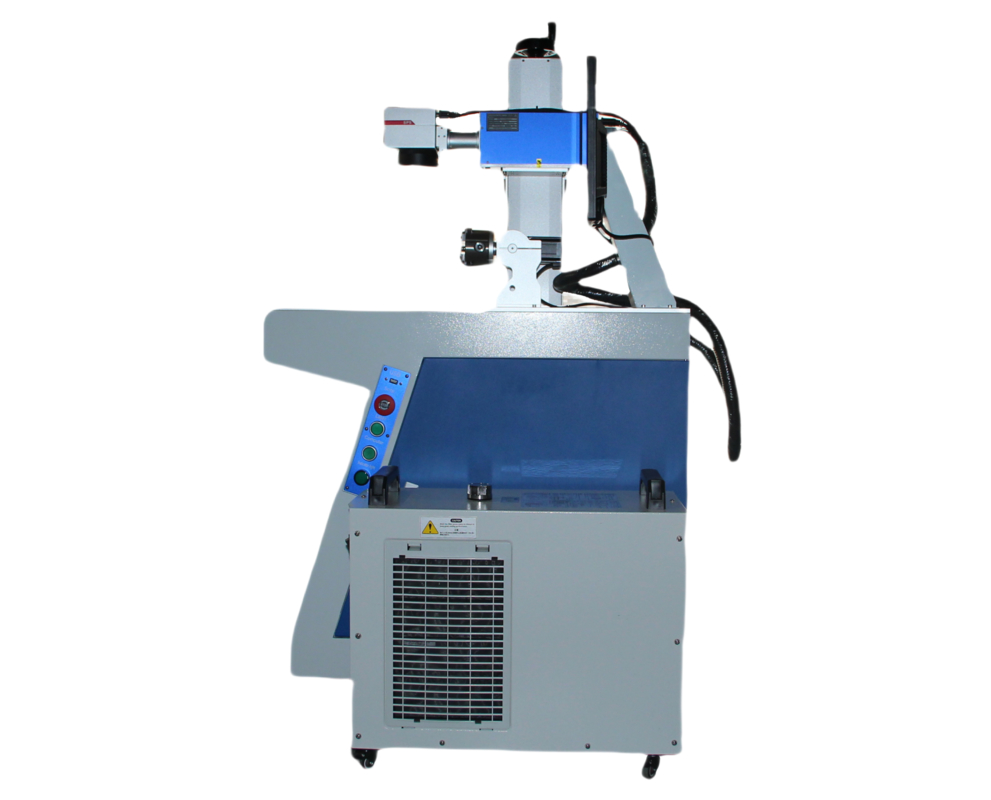

5W Ultraviolet Laser Marking Machine Glass Leather Laser Marking Machine 150*150mm
| Place of Origin | china shenzhen |
|---|---|
| Brand Name | Temei |
| Model Number | TM-LUV5W |
| Minimum Order Quantity | 1 |
| Price | 5300~6000usd |
| Packaging Details | wooden box |
| Delivery Time | 3~7day |
| Payment Terms | T/T |
| Supply Ability | 1,000 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Name UV Laser Marking Machine | Model | TM-LUV5W |
|---|---|---|---|
| Working Size | 150x150mm | Laser Source | Ultraviolet Laser（Gainlaser） |
| Laser Power | 5W | Laser Wavelength | 355nm |
| Spot Diameter | 0.012mm | Galvanometer | Superscan |
| Field Lens | High-definition Quartz Field Lens | Cooling Mode | Water Cooling |
| Monitor And Host Computer | Industrial Control Computer | Control Software | EZCAD |
| Repe.Positioning Accuracy | 0.001mm | Minimum Line Width | 0.01mm |
| Minimum Character | 0.15mm | Marking Speed | ≤7000mm/s |
| Power Supply | 220V,50/60Hz | Supported Graphic Formats | DXF, AI, BMP,PLT,JPEG |
| Dimensions | 650x800x1320mm | ||
| Highlight | 150*150mm Ultraviolet Laser Marking Machine,Leather Laser Marking Machine 150*150mm,5W Ultraviolet Laser Marking Machine |
||
Product Description
1.The machine takes 355nm light laser device as the light source Ultraviolet laser marking machines have the advantage of limiting thermal stress that other laser machines do not.
2. The heat affected area is very small, will not produce thermal effects, will not produce material scorching problem.
3, The good quality and small focus spotlight could achieve the ultra-fine marking with high speed and high efficiency.
4.Preinstalled high-precision practical multi-functional work surface, the table has a number of flexible screw holes, convenient installation of special fixture platform.
5.This cooling system adopts water cooling method to ensure that the laser has long service life, stability and reliable operation.
6.High efficiency of the photoelectric conversion and long service life.
Configuration and Parameters
|
Name |
UV Laser Marking Machine |
|
Model |
TM-LUV5W |
|
Working Size |
150x150mm |
|
Laser Source |
Ultraviolet laser(Gainlaser) |
|
Laser Power |
5W |
|
Laser wavelength |
355nm |
|
Spot Diameter |
0.012mm |
|
Galvanometer |
Superscan |
|
Field Lens |
High-definition quartz field lens |
|
Cooling Mode |
Water cooling |
|
Monitor and Host computer |
Industrial control computer |
|
Control Software |
EZCAD |
|
Lifting Shaft |
Hand-cranked lifting system |
|
Working Table |
High-precision aluminum plate |
|
Repe.Positioning Accuracy |
0.001mm |
|
Minimum Line Width |
0.01mm |
|
Minimum Character |
0.15mm |
|
Marking Speed |
≤7000mm/s |
|
Marking Depth |
≤0.5 mm (depending on material) |
|
Power supply |
220V,50/60Hz |
|
Supported Graphic Formats |
DXF, AI, BMP,PLT,JPEG |
|
Dimensions |
650x800x1320mm |
|
Net Weight |
100kgs |
|
Application Materials |
Suitable for various materials |
