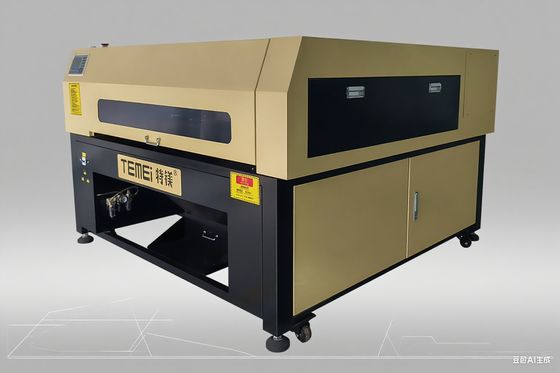

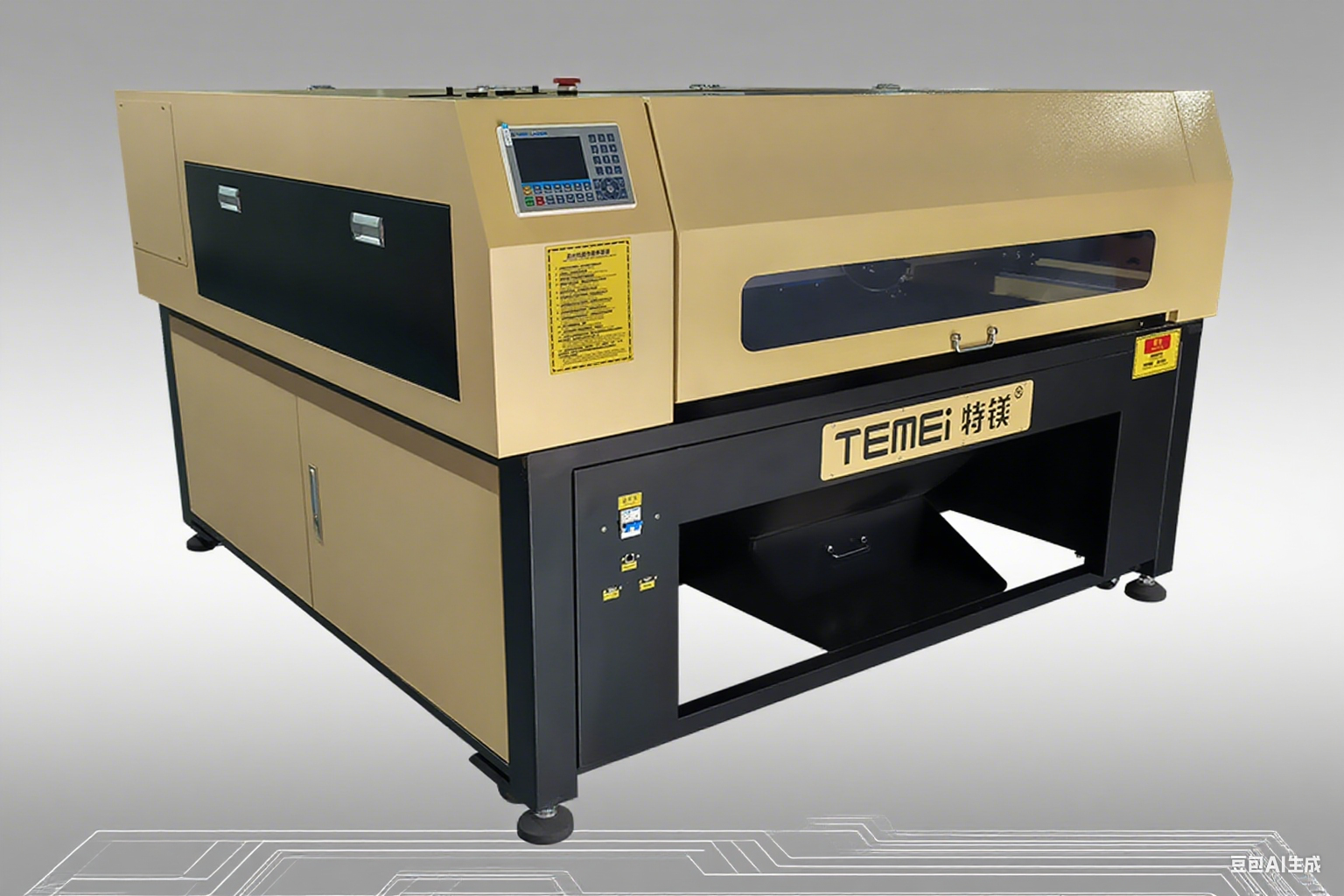

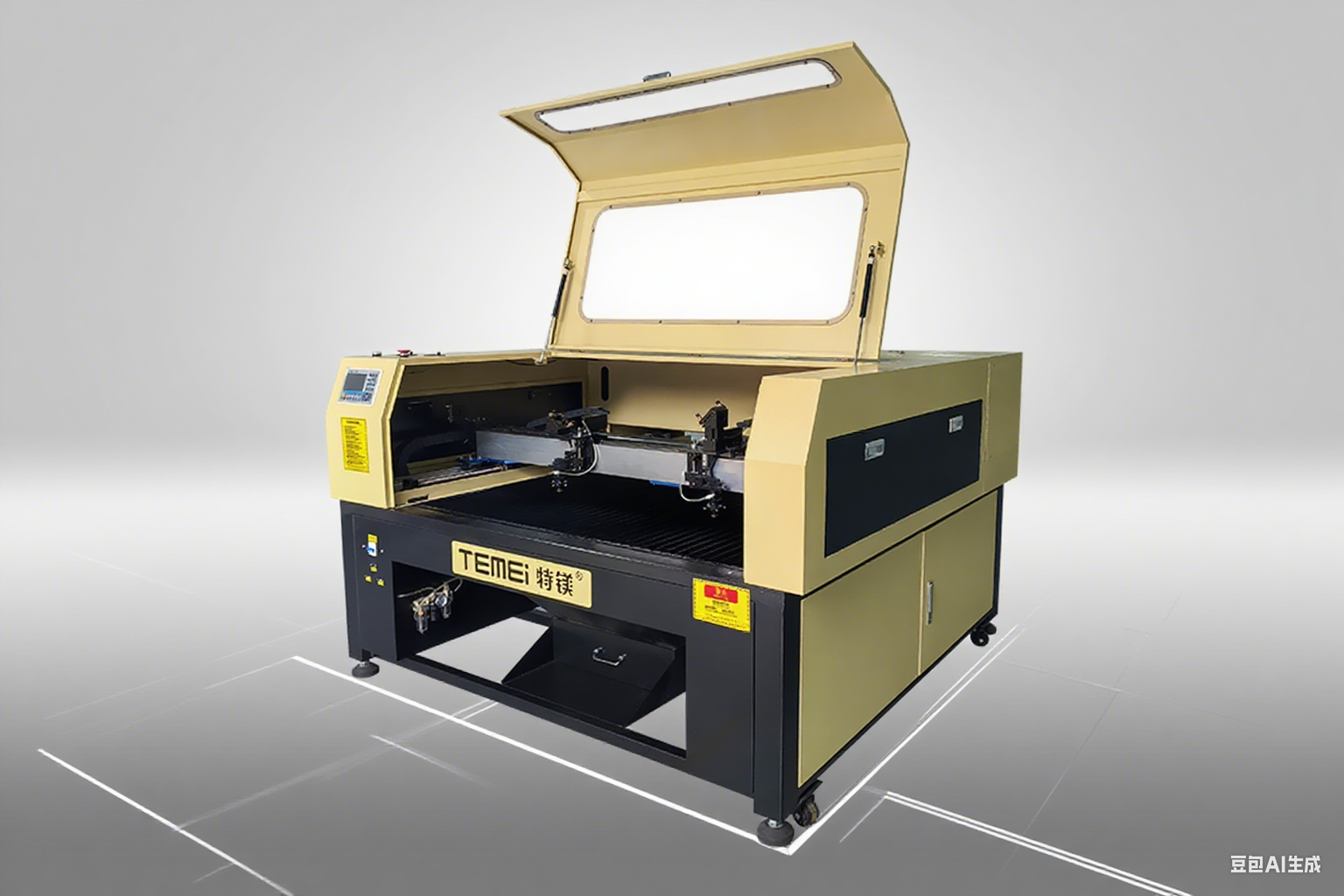

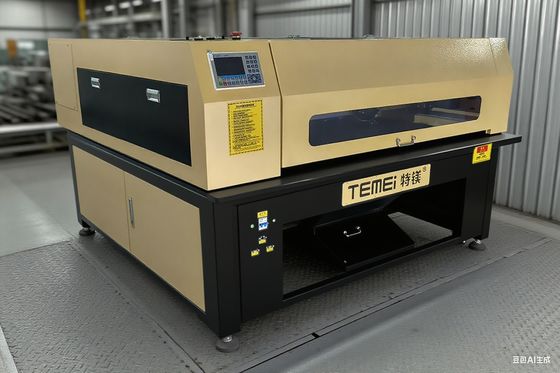

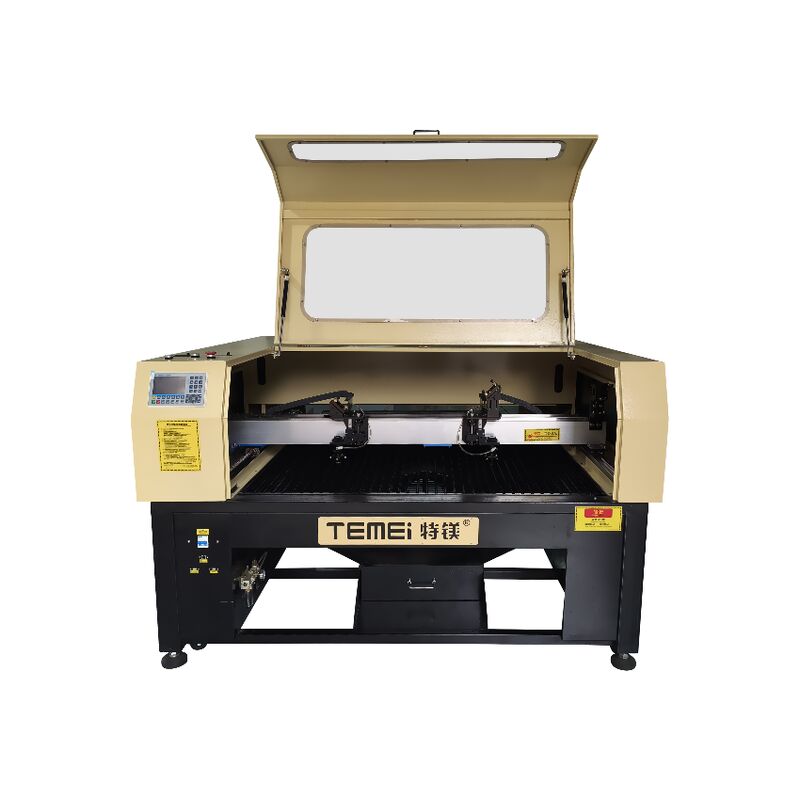

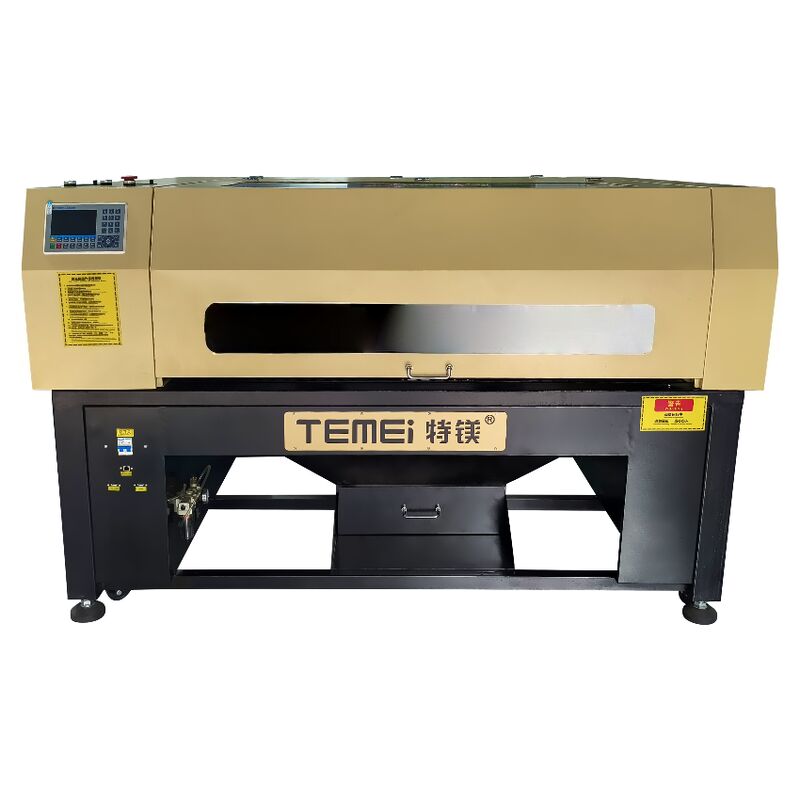

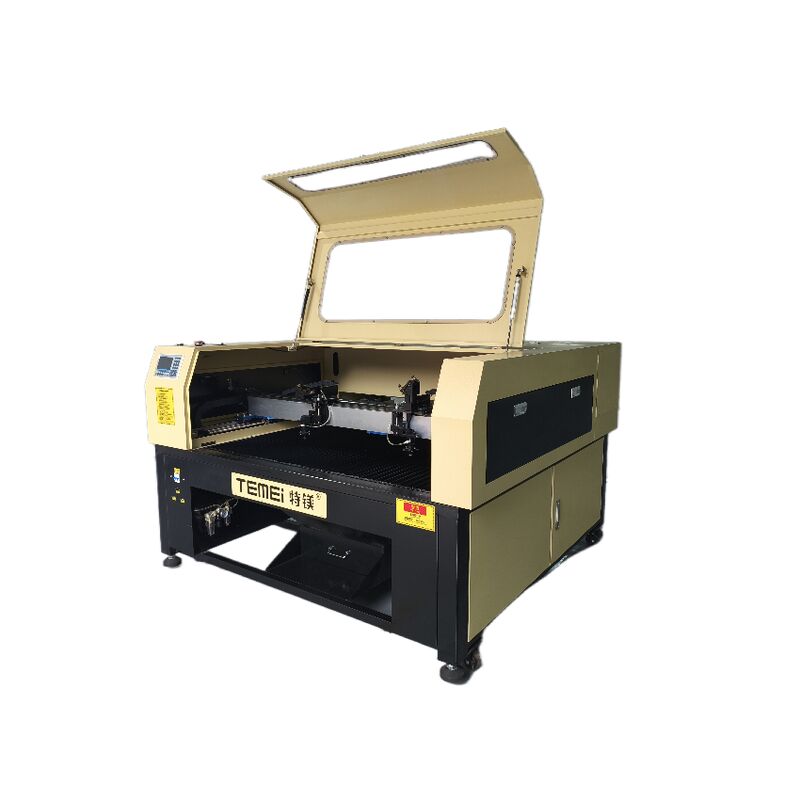

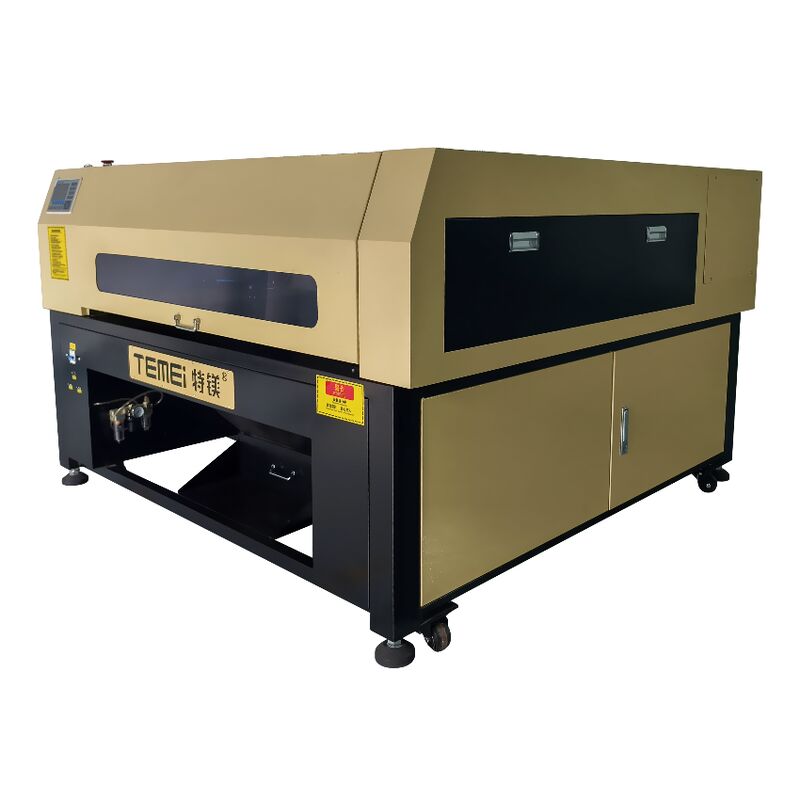

Bamboo Board Co2 Laser Cutter Machine 1300x900mm MDF Co2 Laser Engraver

  • Bamboo Board Co2 Laser Cutter Machine 1300x900mm MDF Co2 Laser Engraver
  • Bamboo Board Co2 Laser Cutter Machine 1300x900mm MDF Co2 Laser Engraver
  • Bamboo Board Co2 Laser Cutter Machine 1300x900mm MDF Co2 Laser Engraver
  • Bamboo Board Co2 Laser Cutter Machine 1300x900mm MDF Co2 Laser Engraver
Place of Origin china shenzhen
Brand Name Temei
Model Number T9-L1390S
Minimum Order Quantity 1
Price 5999usd~10999usd
Packaging Details wooden box
Delivery Time 7 to 15 days
Payment Terms T/T
Supply Ability 1,000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name CO2 Laser Cutting Machine Model 1300x900mm
Laser Source CO2 Laser Tube Laser Power 130W/150W/180W/200W/300W/450W
Positioning Accuracy 0.02mm Repet.Positioning Accuracy 0.01mm
Max.Cutting Thickness 30mm (acrylic,plywood,rubber,MDF) Power Supply 220V,50/60Hz
File Format DXF, PLT, AI, DST, DSB Net Weight 500kgs
Application Materials Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc. Dimensions 1750x1650x1150 Mm
Highlight

Bamboo Board Co2 Laser Cutter Machine

,

Co2 Laser Cutter Machine 1300x900mm

,

1300x900mm MDF Co2 Laser Engraver
Leave a Message
Product Description
T9-L1390Wood board CO2 laser cutting machine Bamboo board cutting Composite panel cutting
The 1390 CO₂ Laser Cutting Machine stands out as a flexible, high-performance device built for accurate cutting and engraving across diverse materials. Boasting extensive practical uses and easy-to-operate functions, it has become an essential piece of equipment for workshops and production sites alike.

A major advantage of this CO₂ laser cutting and engraving device lies in its ability to work with numerous material types. It handles tasks involving acrylic, wood, leather, fabric, paper, and other substances smoothly—making it highly suitable for sectors like sign-making, packaging, textile processing, and woodworking due to this adaptability.

Backed by cutting-edge tech, this CO₂ laser engraving and cutting unit supports multiple graphic file formats such as PLT, DXF, BMP, AI, DST, and DWG. This compatibility lets users effortlessly import their designed patterns and shapes, ensuring accurate cutting and engraving on the selected material.

Fitted with a robust laser system, this CO₂ laser metal-cutting device provides laser power choices of 150W, 200W, 300W, and 450W to meet different user requirements. Whether the task calls for intricate engraving work or fast-paced cutting operations, it delivers excellent outcomes thanks to its precise and efficient laser technology.
Bamboo Board Co2 Laser Cutter Machine 1300x900mm MDF Co2 Laser Engraver 0Bamboo Board Co2 Laser Cutter Machine 1300x900mm MDF Co2 Laser Engraver 1Bamboo Board Co2 Laser Cutter Machine 1300x900mm MDF Co2 Laser Engraver 2
Bamboo Board Co2 Laser Cutter Machine 1300x900mm MDF Co2 Laser Engraver 3
Cutting Thickness Parameters
Material Thickness Processing Speed (mm/s) Processing Power
1mm 60-70 35-40
3mm 50-60 50-60
5mm 35-40 60-65
8mm 17-23 60-65
10mm 12-17 60-65
12mm 10-14 65-70
15mm 6-8 65-70
20mm 2.5-4 65-70
30mm 1.4-1.8 65-70

Note: The above parameters are for reference only. The cutting effect may vary based on material quality. Please adjust power and speed according to actual conditions.

Configuration and Parameters

 Name

CO2 laser cutting machine

 Model

T9-L1390S

Working Size

1300x900mm

Laser Source

CO2 Laser Tube

Laser Power

130W/150W/180W/200W/300W/450W

Cooling Method

S&A CW-5200/6000/6200 Chiller

Drive System

Mitsubishi Servo Driver & Motor from Japan

Transmission System

TBI Ball Screw & PMI Linear Guide from Taiwan

Control System

Ruida RDC6442/RDV6445

CCD edge patrol cutting function:

Optional

Double cutting head

Optional

Positioning Accuracy

0.02mm

Repet.Positioning Accuracy

0.01mm

Max.Speed

≤40m/min

Max.Cutting Thickness

30mm (acrylic,plywood,rubber,MDF)

 Working table

Blade platform / Cellular platorm (optional)

Red-dot Positioning

Yes

 Auxiliary Equipment

Air pump,Centrifugal fans(1.1kw)

Power supply

220V,50/60Hz

File format

DXF, PLT, AI, DST, DSB

Dimensions

1750x1650x1150 mm

Net Weight

500kgs

Application Materials

Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc.
Exhibition and Inspection
Bamboo Board Co2 Laser Cutter Machine 1300x900mm MDF Co2 Laser Engraver 4
Packaging and Logistics
Bamboo Board Co2 Laser Cutter Machine 1300x900mm MDF Co2 Laser Engraver 5
Support and Services:

The 1390 CO2 Laser Cutting Machine is a high-precision, reliable cutting tool suitable for various materials such as acrylic, wood, paper, fabric, and more.

 The product technical support and services for this machine include:

- Initial setup and installation guidance

- Training on machine operation and maintenance

- Troubleshooting assistance for technical issues

- Software updates and upgrades

- Replacement parts and repair services

- On-site technical support for complex issues

- Consultation on optimizing cutting parameters for different materials
