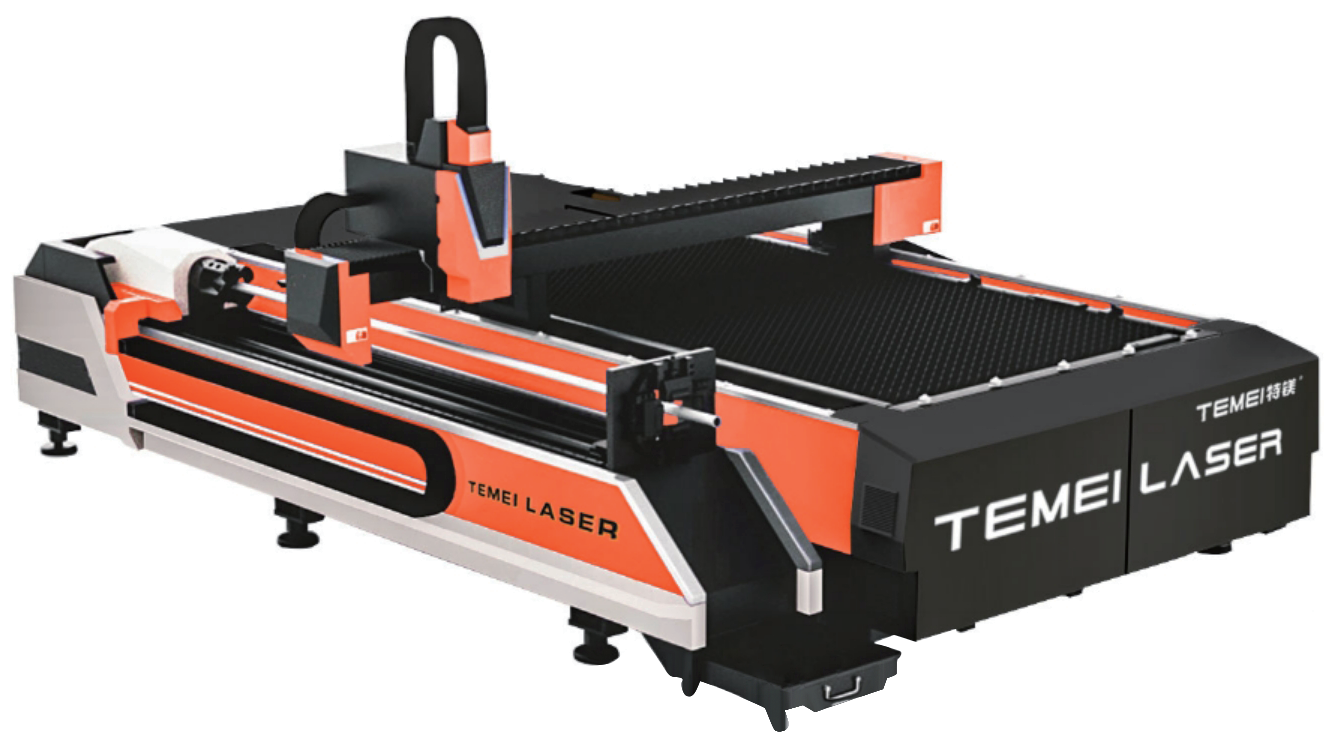

3000x1500mm Tube And Plate Laser Cutting Machine Industrial Laser Cutting Machine 3000W
| Place of Origin | china shenzhen |
|---|---|
| Brand Name | Temei |
| Model Number | TM-LF3015DT |
| Minimum Order Quantity | 1 |
| Price | Custom quotation request |
| Packaging Details | wooden box |
| Delivery Time | 3~7day |
| Payment Terms | T/T |
| Supply Ability | 1,000 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | China | Cooling Mode | Water Cooling |
|---|---|---|---|
| Repetitive Accuracy | ±0.01mm | Laser Power | 3000W |
| Control System | BOCHU | Cutting Speed | 30m/min，0.5G |
| Minimum Cutting Diameter | 10mm | Maximum Diameter Of Cutting | Circular Pipe 160mm, Square Pipe 100mm |
| Highlight | 3000x1500mm Industrial Laser Cutting Machine,3000W Tube And Plate Laser Cutting Machine,3000W pipe and sheet laser cutting machine |
||
Product Description
3000x1500mm Fiber Laser Cutting Machine Plate And Pipe Tube Metal Machine TM-FL3015DT
Product Description
Dual-use Metal Sheet and Pipe Laser Cutting Machine is engineered for precision cutting of both circular and square metal pipes/tubes, as well as flat sheets.
Built with a robust steel frame and a rack-driven system, it incorporates a specialized CNC system dedicated to pipe laser cutting, ensuring high accuracy and efficiency in operation.
Feature
Provides long-term stability and resists deformation, ensuring durability over years of operation.
High-quality guide rails and racks deliver reliable and precise cutting performance.
Equipped with top-tier imported components to ensure powerful cutting performance, high accuracy, and steady operation.
Configuration and Parameters
|
Name |
Integrated plate and tube fiber laser machine |
|
Modle |
TM-LF3015DT |
|
Working Size |
3000×1500mm |
|
Laser Source |
Optical fiber |
|
Laser Power |
3000W |
|
Laser Head |
WSX Auto focus NC30 |
|
Laser brand |
Feibo |
|
Cooling Method |
Industrial water cooling machine |
|
Drive System |
Japanese Fujitsu direct drive servo system |
|
Servo power |
X-axis 1000W, Z-axis 400W |
|
Control System |
BOCHU |
|
Gas circuit group |
Dual-chamber SMC proportional valve |
|
Repet.Positioning Accuracy |
±0.01mm |
|
Cutting Speed |
30m/min,0.5G |
|
Clamping mode |
Start the feeding chuck,Front-mounted chuck manual |
|
Cutting length |
6000mm |
|
Minimum cutting diameter |
10mm |
|
Maximum diameter of cutting |
Circular pipe 160mm, square pipe 100mm |
|
Power supply |
380V/50Hz |
|
File format |
DXF, PLT, AI,IGS |
|
Dimensions |
2350*4500*1700 |
|
Maximum load capacity of the workbench |
750KG |
|
Application Materials |
Carbon steel, stainless steel, alloy steel, aluminum alloy, copper alloy and other flat plate and pipe-shaped metallic materials |
FAQ
1:Question: Does Temei laser offer online technical support?
Answer: Yes, Hanni Laser has a professional technical team that can provide timely online technical support to customers.
2:Question: How does Temei Laser handle post-sales issues (such as repairs and spare parts supply)?
Answer: From fault repairs to spare part replacements, Temei Laser, with its comprehensive global service network, provides reliable support to its customers.
3:Question: What kind of technical support does Temei Laser offer?
Answer: Temei Laser has a professional technical team that can provide timely online technical support to customers.
4:Question: How does Temi Laser ensure reliable after-sales service globally?
Answer: It provides customers with reliable support through its comprehensive global service network, covering everything from fault repairs to component replacements.
5:Question: Does Temei Laser Company have a dedicated technical support team?
Answer: Yes, Hanni Laser has a professional technical team that can provide timely online technical support to customers.
