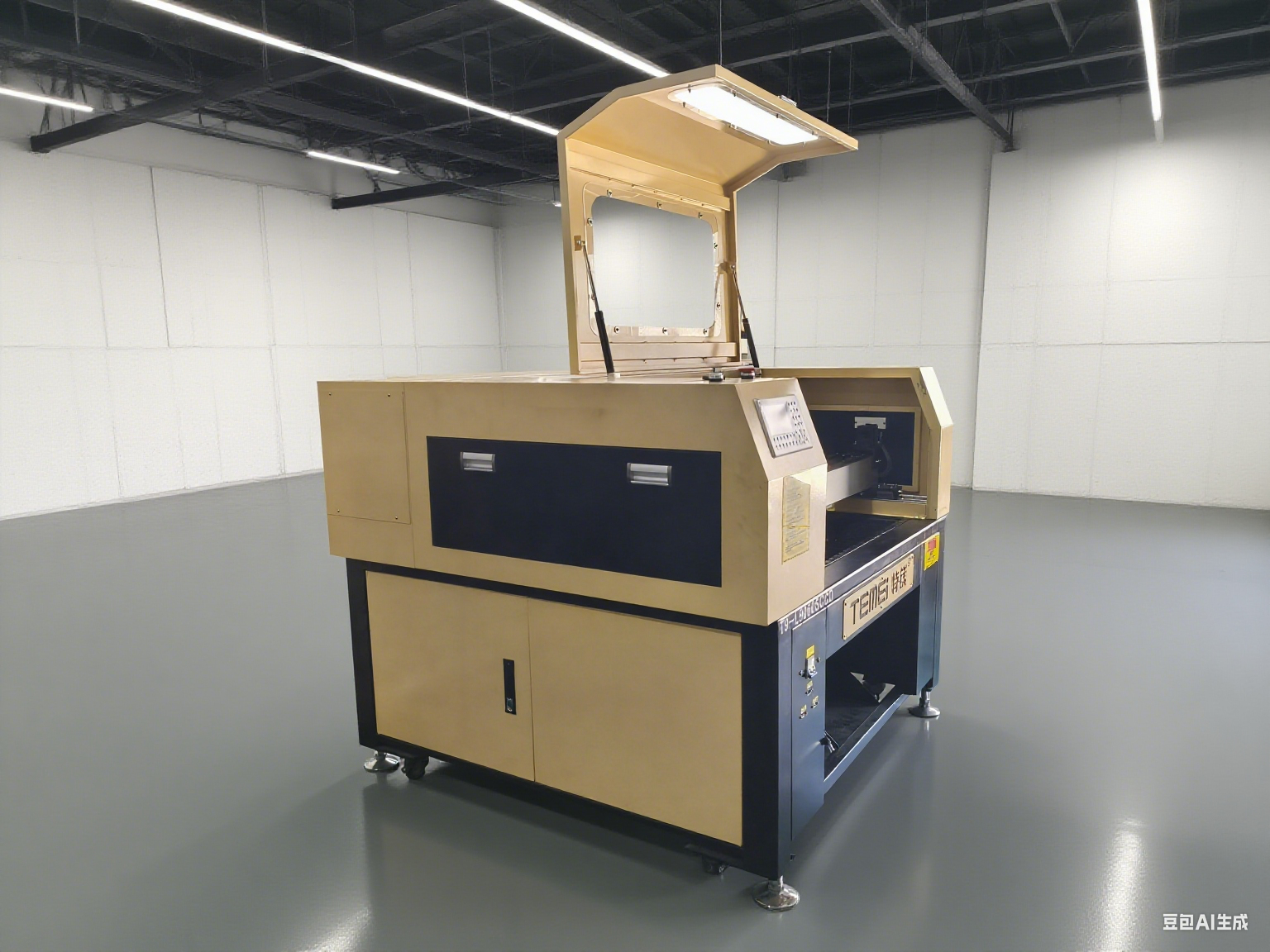

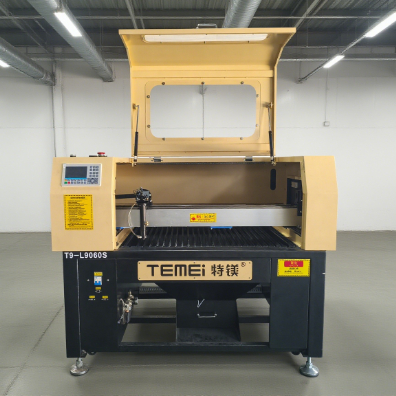

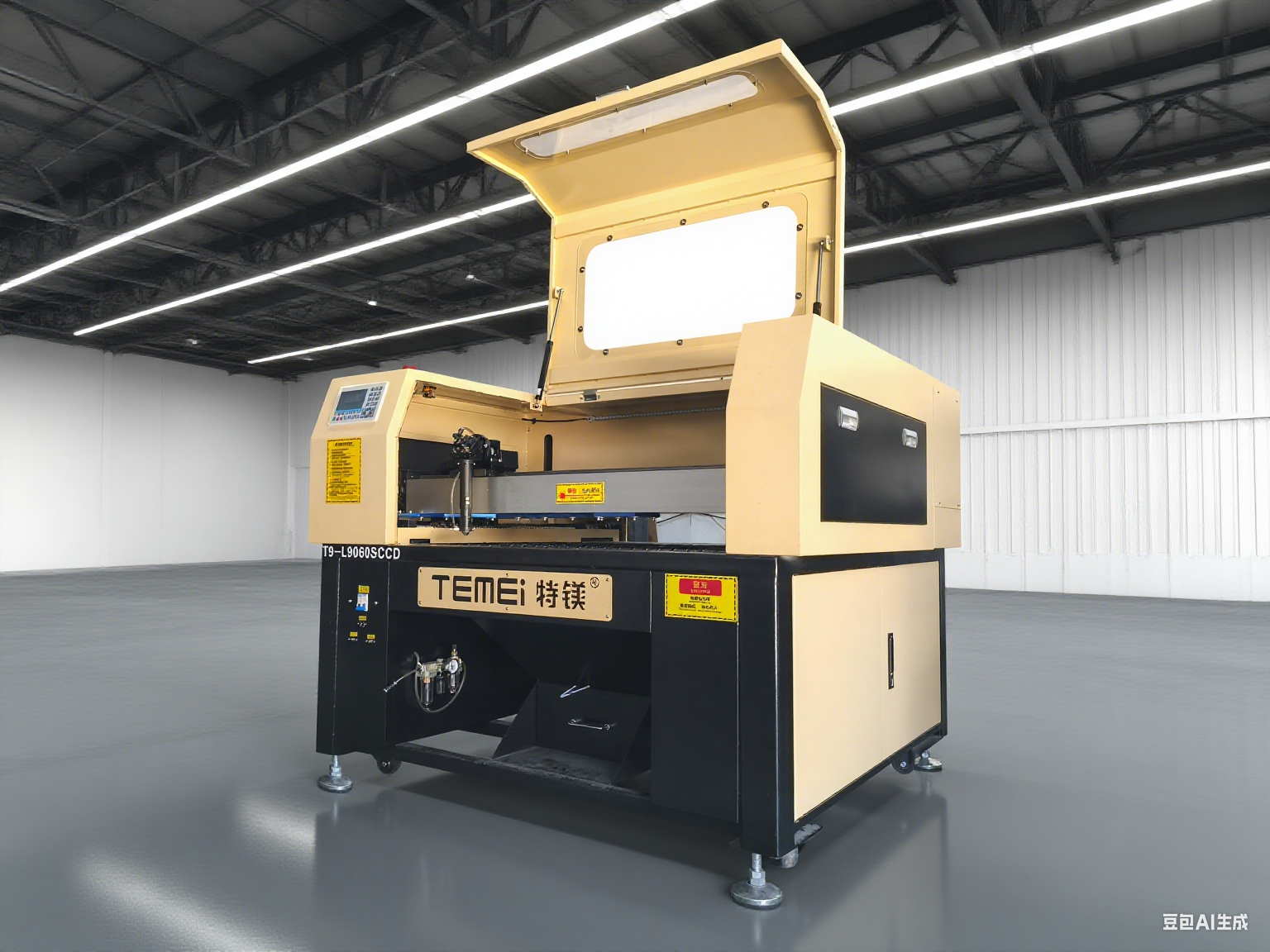

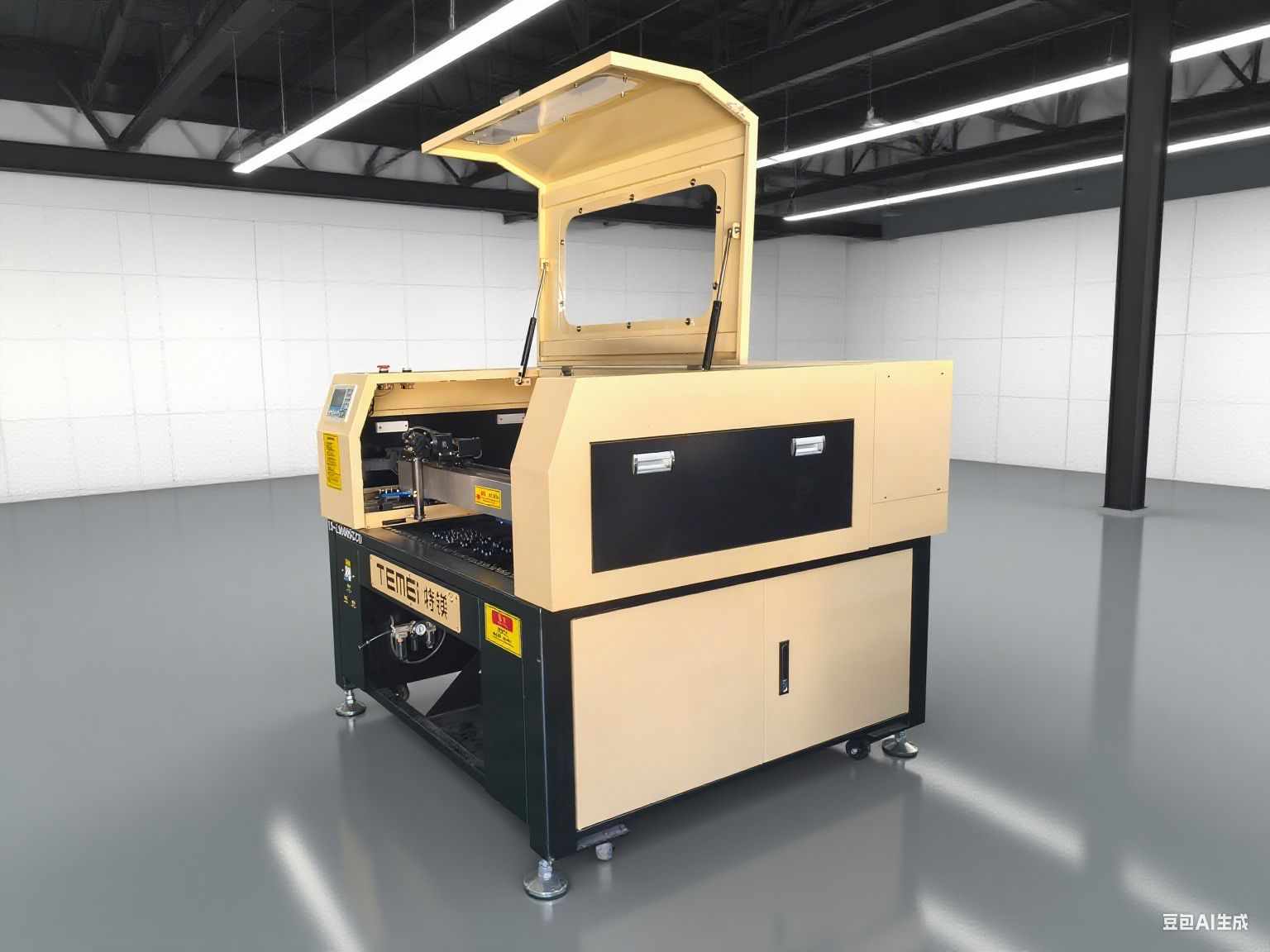

High Accuracy Jigsaw Puzzle Laser Cutter Wood Co2 Laser Cutter Customization

Name	CO2 laser cutting machine
Model	T9-L9060S
Working Size	600mm*900mm
Laser Source	CO2 Laser Tube
Laser Power	80W/100W/130W/150W/180W/200W
Light Path	Flight optical path system
Cooling Method	S&A CW-5200 Chiller
Drive System	Mitsubishi Servo Driver & Motor from Japan
Transmission System	TBI Ball Screw & PMI Linear Guide from Taiwan
Control System	Ruida RDC6442 / RDV6445
CCD edge patrol cutting function	Optional
Positioning Accuracy	0.02mm
Repet.Positioning Accuracy	0.01mm
Max.Speed	40m/min
Working table	Blade platform / Cellular platform (optional)
Red-light Positioning	Yes
Auxiliary Equipment	Air pump, centrifugal fans
Power supply	220V,50/60Hz
File format	DXF, PLT, AI, DST, DSB,BMP,GIF,PEG,PCX,DWG
Dimensions	1430*1300*1200mm
Net Weight	350KG
Application Materials	Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc.

Support and Ancillary Services
The 9060 carbon dioxide laser cutting machine offers comprehensive product technical support and ancillary services to ensure the smooth operation of the equipment and fully unleash its usage efficiency:
Professional technicians will come to the site to complete the equipment installation and operation training. This not only ensures that the equipment is installed and debugged properly, but also helps the operators master the usage skills proficiently.
We offer multiple channels of continuous technical support, including phone calls, emails and online chats, to promptly respond to and solve any questions or faults that may arise during the equipment operation.
We introduce a regular maintenance service to keep the equipment in the best working condition and effectively avoid downtime and inefficiency caused by mechanical issues.
Users can obtain software updates and technical materials to ensure that the equipment's functions are always in sync with the latest upgrades, achieving continuous performance optimization.
We provide optional extended warranties and value-added service packages to add protection for users beyond the standard warranty period, eliminating concerns about usage.

Packaging and Logistics
The 9060 carbon dioxide laser cutting machine is precisely packaged in a high-strength wooden box to ensure safety during transportation. The equipment is securely fixed inside the wooden box to prevent damage caused by shaking or collision during transportation.

Logistics-related Instructions
After placing an order, the 9060 carbon dioxide laser cutting machine will be dispatched within 3 to 5 working days. We cooperate with reputable and reliable logistics companies to deliver the products precisely to the user's designated address. At the same time, a logistics tracking number will be provided to facilitate users in checking the transportation status of the equipment at any time.

Q&A
Q: 9060 Carbon dioxide laser cutting machine can cut which materials?
A: This equipment can be used for cutting various materials, including acrylic, wood, leather, textiles, paper, etc., all within its applicable range.
Q: What is the maximum cutting thickness of the 9060 carbon dioxide laser cutting machine?
A: The maximum cutting thickness of the 9060 carbon dioxide laser cutting machine depends on the specific material being cut. Generally, it can achieve cutting of materials up to 20 millimeters in thickness.
Q: 9060 Does the carbon dioxide laser cutting machine come with software for designing and controlling the cutting process?
A: Yes, the device is equipped with dedicated software that not only supports the creation of processing projects but also enables precise control of various parameters during the cutting process.
Q: What is the maximum cutting speed of the 9060 carbon dioxide laser cutting machine?
A: The maximum cutting speed of the 9060 carbon dioxide laser cutting machine is affected by the material being cut and the complexity of the design pattern. It can reach up to 500 millimeters per second at its maximum.
Q: How often should the laser tube of the 9060 carbon dioxide laser cutting machine be replaced?
A: The service life of the laser tube of the 9060 carbon dioxide laser cutting machine is related to the actual usage duration. Under normal usage conditions, it is recommended to replace the laser tube approximately every 2,000 to 3,000 hours of operation.
